FRAME

T.E.M.P.O., 125 mm travel
29'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

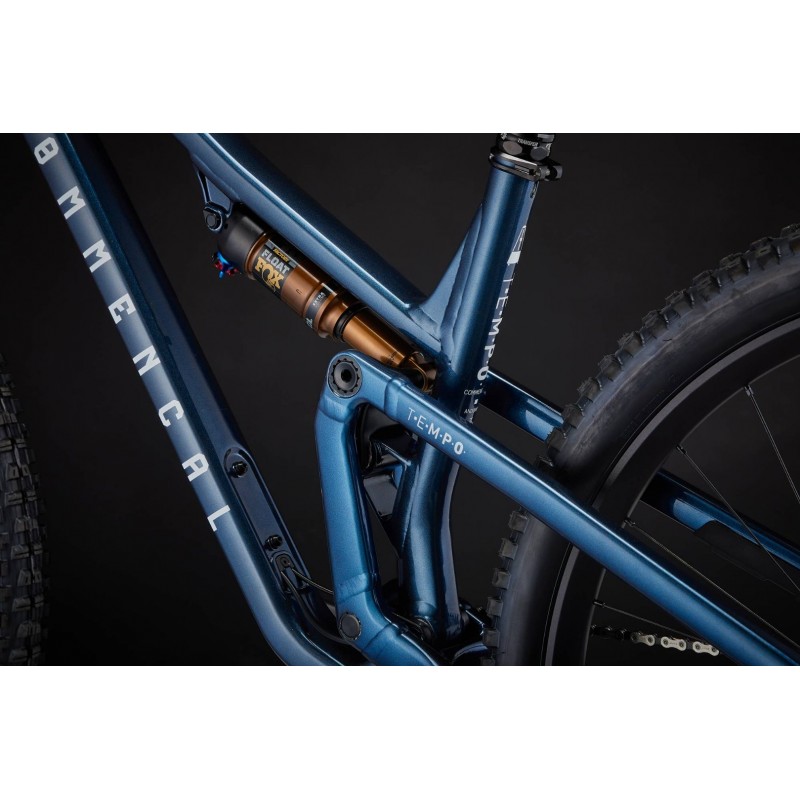

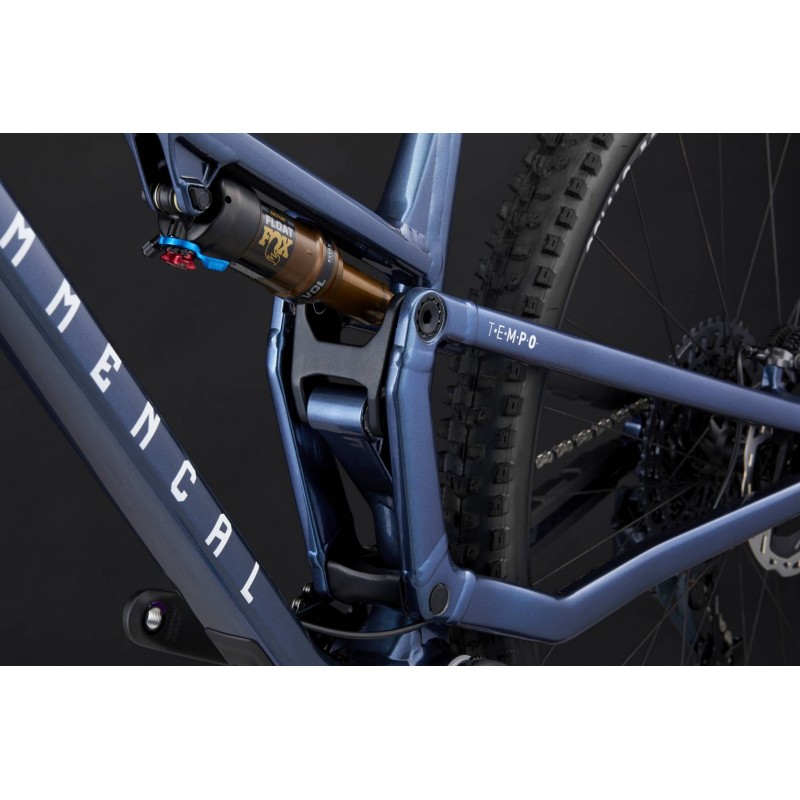

SHOCK

FOX FLOAT FACTORY
210 x 50 mm, 2 positions compression, Rebound, Evol LV

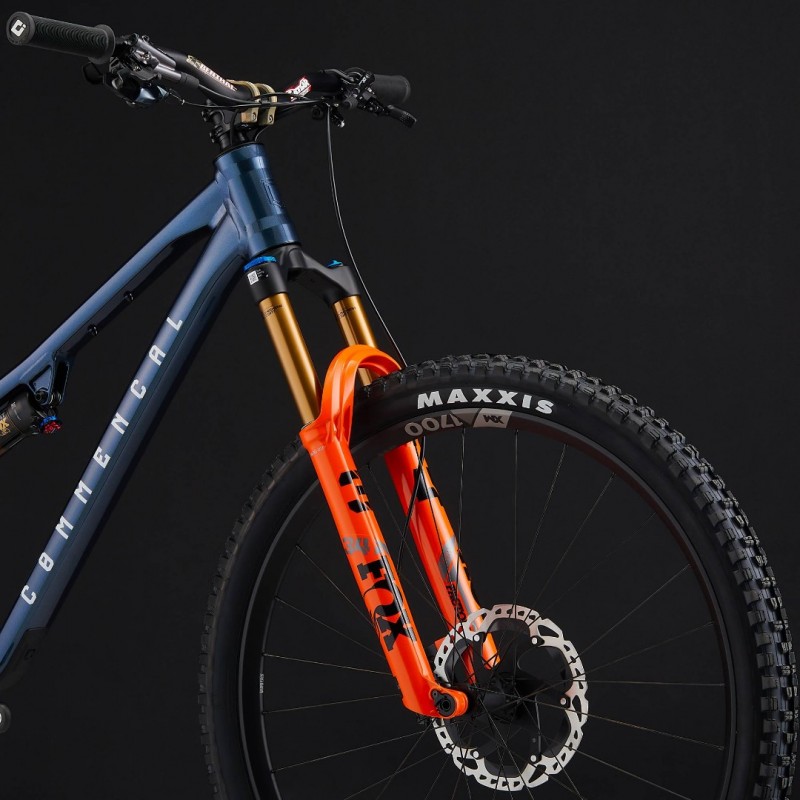

FORK

FOX 34 Factory, 140 mm travel
29", Float, Grip 2 damper, HSR/LSR, HSC/LSC, Boost (15 x 110 mm), 51 mm offset, 1 spacer

HEADSET

ACROS ZS56 / ZS56
Alloy cups, sealed bearings, Integrated cable routing

STEM

RENTHAL Apex
40 mm extension, 31,8 mm

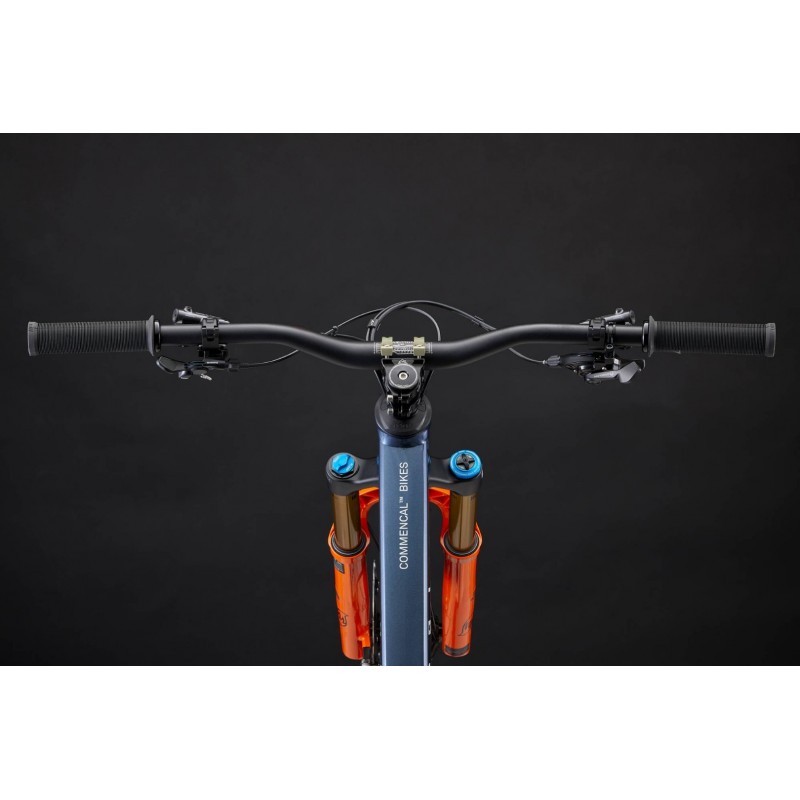

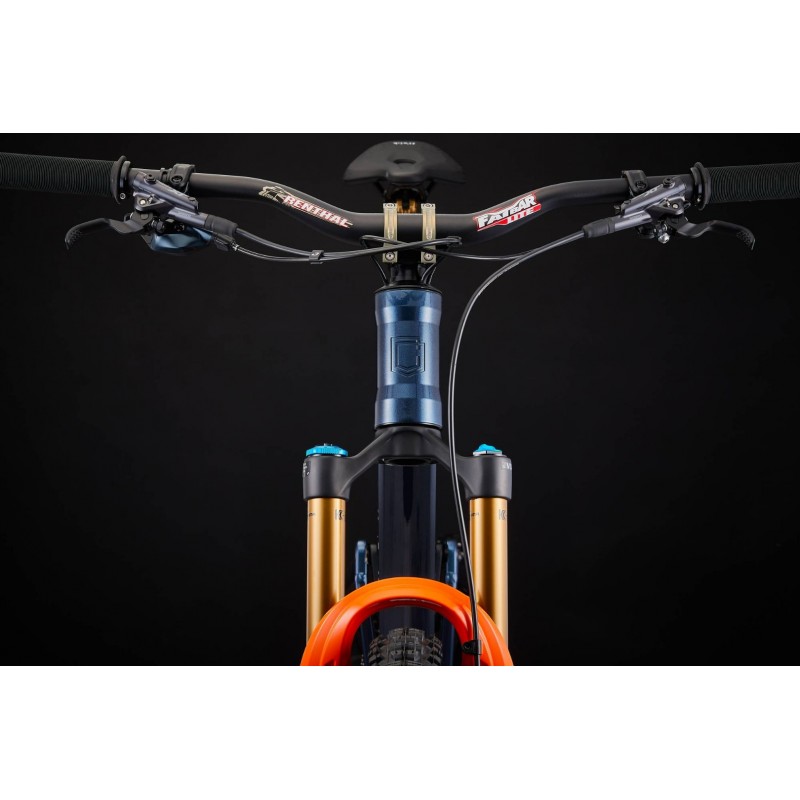

HANDLEBAR

RENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL
31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XL

GRIPS

ODI Longneck
Soft compound, single clamp, black

BRAKES

SHIMANO XT, 2 pistons, I-Spec EV, resin pads
Rotors: SHIMANO RT-MT905 203 / 180 mm, 6-bolt

SHIFTERS

SRAM GX Eagle
12s

CHAIN GUIDE

RIDE ALPHA
32t-34t

REAR DERAILLEUR

SRAM GX Eagle
12s

BOTTOM BRACKET

SRAM DUB Wide
Pressfit

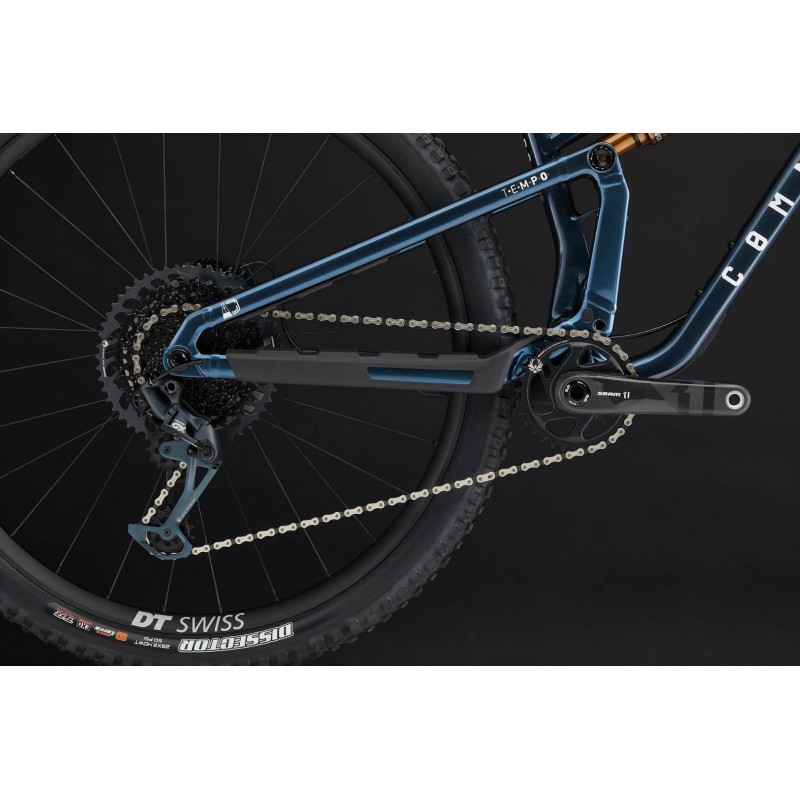

CRANKSET

SRAM X1 Carbon Eagle, 170 mm crank arms, DUB, crank boots
Chainring: SRAM X1 Carbon Eagle, 32t, Narrow-Wide

CHAIN

SRAM GX Eagle
12s

CASSETTE

SRAM XG 1275 Eagle
12s, 10-52t

RIMS

DT SWISS XM 1700
29'', 28h, 30 mm inner width

HUBS

Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, Ratchet System 36t, Sram XD freehub body - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition
Straightpull, 2.0 1.8-2.0 mm, double butted, stainless, with ProLock, black

TYRES

Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

SEAT POST

FOX Transfer Factory
31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XL

SADDLE

FIZIK Terra Ridon X5
145 mm width, S-alloy rails

WEIGHT

14 kg / 30.86 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
