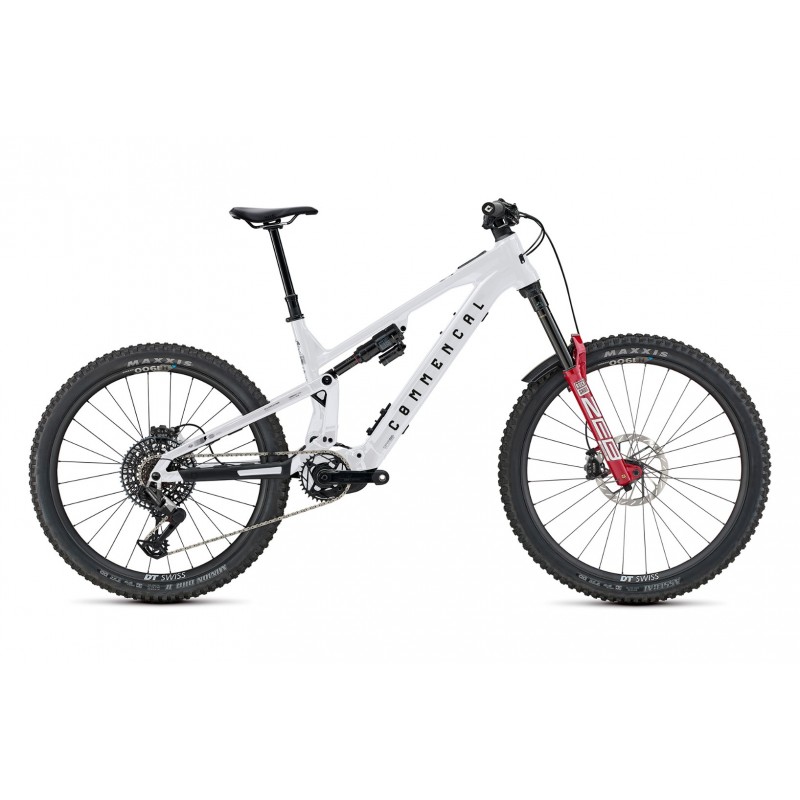

FRAME
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
MOTOR
AVINOX M2S
150 Nm peak torque with a 1,300 W boost mode, and 130 Nm / 1300 W in normal operation
BATTERY
AVINOX fixed
600 W on S, 800 W on M / L / XL
AVINOX 12A/508W Fast Battery charger
DISPLAY
AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
Switch: AVINOX BC100, Wireless controller.
SHOCK
ROCKSHOX Super Deluxe Select 2027
230 x 60 mm, Debonair +, 2-postion (open/firm) lever, Rebound
FORK
ROCKSHOX Zeb Ultimate 170 mm 2027
29", damper 3.2 RC2 Linear XL, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset
HEADSET
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings
STEM
RIDE ALPHA 40
40 mm extension, 31.8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
RIDE ALPHA MUSHROOM
Soft compound, single clamp, black
BRAKES
SRAM Maven Base, 4 pistons
Rotors: SRAM HS2, 6-bolt, 200 mm
SHIFTERS
SRAM Eagle 90
12s
CHAIN GUIDE
RIDE ALPHA
32-34t
REAR DERAILLEUR
SRAM Eagle 90
12s, T-TYPE
CRANKSET
E13 HELIX CORE, 155 mm crank arms
Chainring: SRAM CR T-Type, 34t
CHAIN
SRAM GX T-type
12s
CASSETTE
SRAM XS 1270 T-Type
12s
RIMS
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
HUBS
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
SPOKES/NIPPLES
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
TYRES
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27,5x2.50WT 3C MaxxGrip, Double Down, TR - Front: 29x2.50WT 3C MaxxGrip, Double Down, TR
SEAT POST
ONE UP V3
34.9 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL
SADDLE
WTB SOLANO
142 x 240 mm, Medium
WEIGHT
26 kg / 57,32 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
| Componente | |
| Material cadru | Aluminiu |
| Tip furca | Cu suspensie |
| Transmisie | 1x12 viteze |
| Roti | |
| Diametru roata | Mullet |
| Default | |
| Model (sex) | Unisex |
| Tip | Enduro#Trail/All mountain |
| Tip Cadru | Full suspension |
Acest ghid te ajuta sa identifici marimea corecta a bicicletei. Alegerea marimii bicicletei se face in functie de inaltime, mai jos gasesti informatiile necesare pentru a identifica marimea corecta pentru tine.
Tabelele de mai jos au rol informativ, pentru a alege o marime cat mai corecta, te asteptam in magazinul nostru, unde poti proba mai multe marimi de bicicleta.
Pentru bicicletele Mountain Bike (crosscountry, enduro, all mountain atat cu roti de 26", 27.5" cat si cu roti de 29" prima coloana din tabel reprezinta inaltimea ciclistului, a doua coloana reprezinta marimea recomandata in cazul in care bicicleta este masurata in inch, ultima coloana reprezinta marimea bicicletei in cazul in care este masurata in cm (majoritatea producatorilor masoara in inch, dar sunt anumiti producatori care masoara si in cm)
| MOUNTAIN BIKE |
| Inaltime ciclist (cm) | Marime cadru (in) | Marime cadru (cm) |
| 135 - 150 | 13 - 14'' | 33 - 35 |
| 150 - 165 | 14 - 15" | 35 - 38 |
| 165 - 170 | 15 - 16" S | 38 - 41 |
| 170 - 175 | 16 - 17'' M | 41 - 43 |
| 175 - 180 | 17 - 18" L | 43 - 46 |
| 180 - 185 | 18 - 20" XL | 48 - 51 |
| 185 - 190 | 20 - 22" XXL | 51 - 53 |
| 190 - ..... | 22''- .... | 56 - .... |
Pentru bicicletele de sosea (cursiere), biciclete de touring, trekking si fitness, folositi urmatorul tabel:
| SOSEA |
| Inaltime ciclist (cm) | Marime cadru (cm) |
| 150 - 160 | 48 - 51 |
| 160 - 165 | 51 - 52 |
| 165 - 170 | 52 - 54 |
| 170 - 175 | 53 - 55 |
| 175 - 180 | 55 - 57 |
| 180 - 185 | 56 - 58 |
| 185 - 190 | 58 - 61 |
| 190 - 195 | 61 - .... |
Pentru bicicletele de copii, alegerea se face dupa inaltime. Cadrele bicicletelor de copii sunt unisize, coloana a doua reprezinta diametrul rotilor (a nu se confunda aceste marimi in inch cu marimile de cadre de la bicicletele mountain bike).
COPII
| Inaltime (cm) | Diametru roti |
| 75 - 85 | run bike |
| 80 - 90 | 12'' |
| 85 - 95 | 14'' |
| 90 - 110 | 16'' |
| 95 - 115 | 18'' |
| 110 - 125 | 20'' |
| 120 - 140 | 24'' |
| 135 - ...... | 26'' |

";
