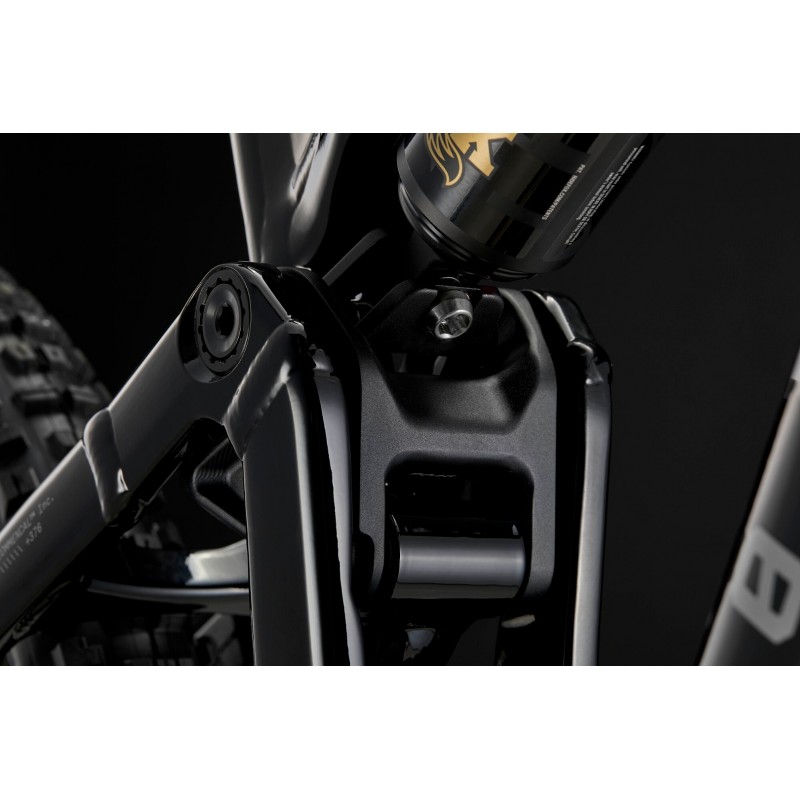

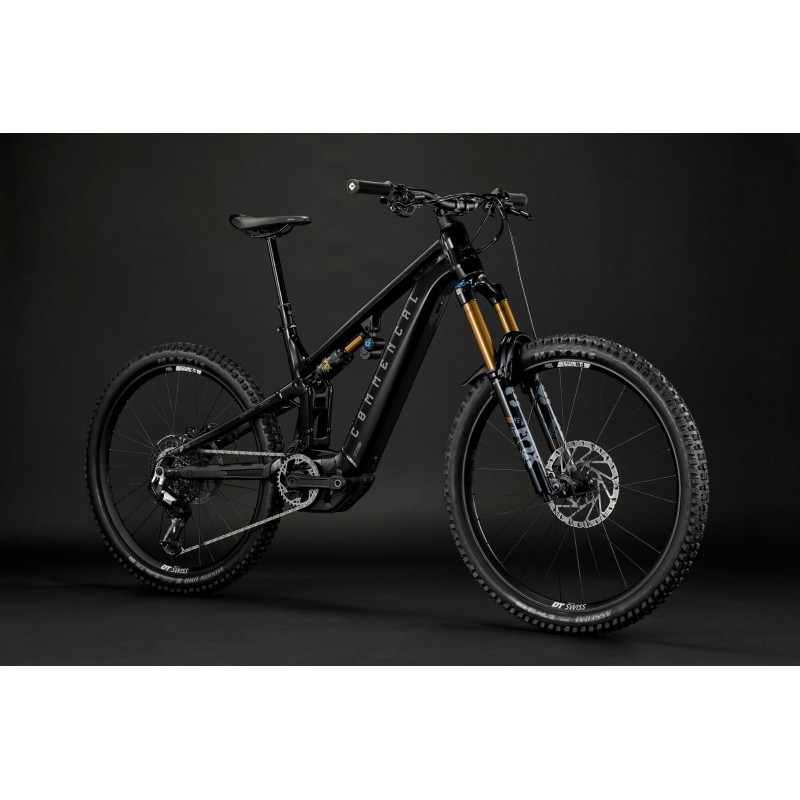

FRAME

META POWER SX BOSCH, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

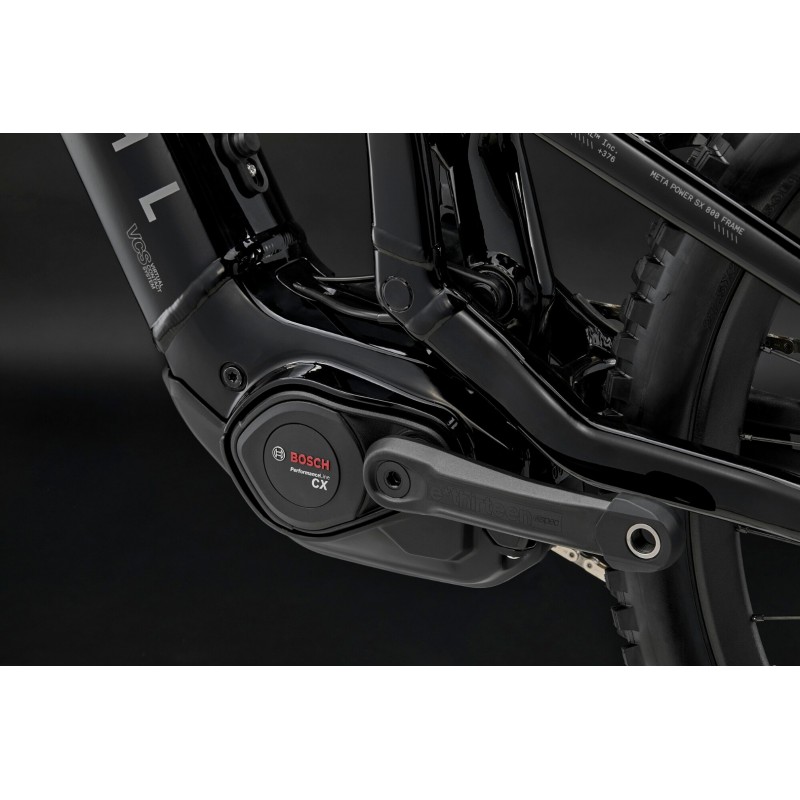

MOTOR

BOSCH Performance Line CX Gen5
100 n.m

BATTERY

BOSCH Powertube 800
Fully integrated main battery, 800 Wh

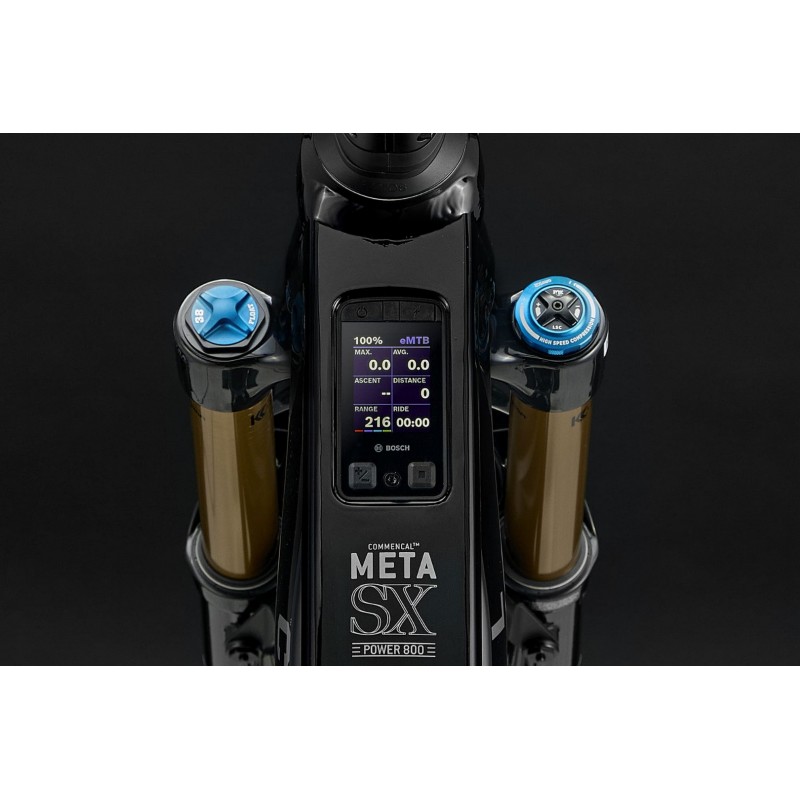

DISPLAY

BOSCH System Controller, ON/OFF switch, assist mode level, battery charge level
Switch: BOSCH Mini Remote, mode switch, walk assist, light switch

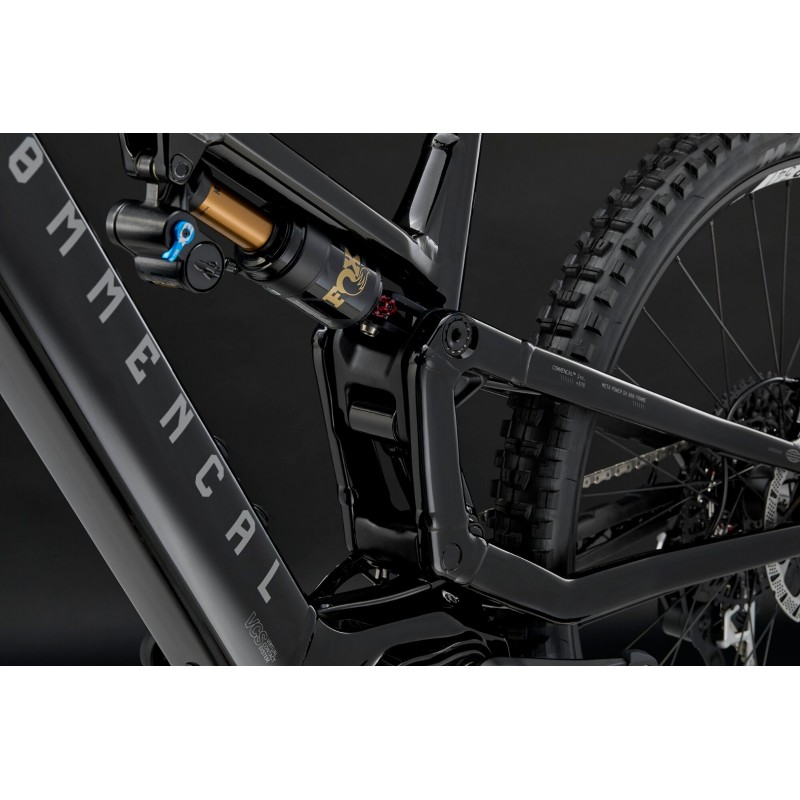

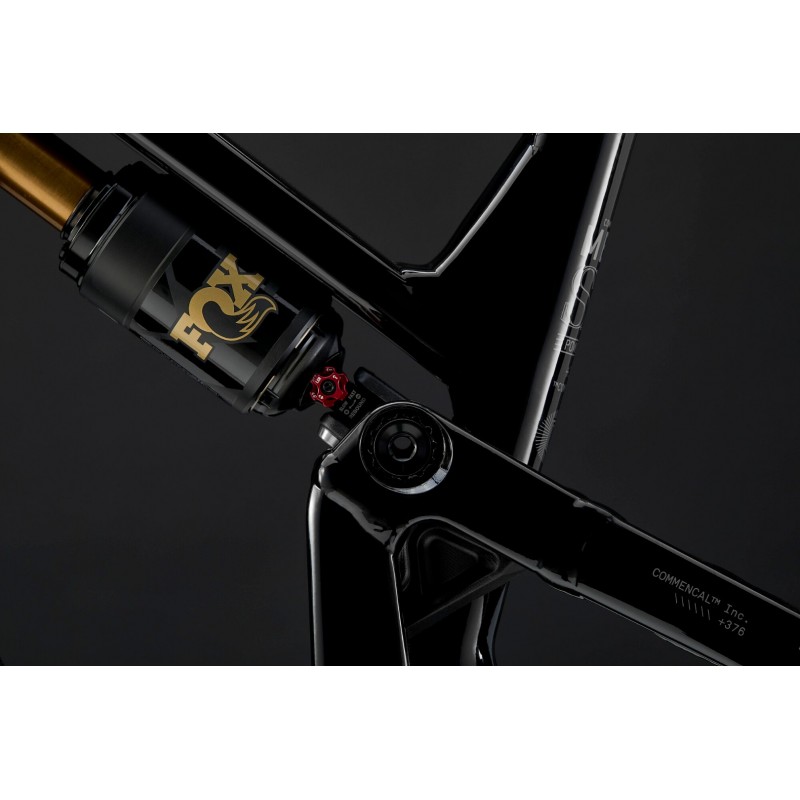

SHOCK

FOX Float X2 Factory
230 x 65 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR

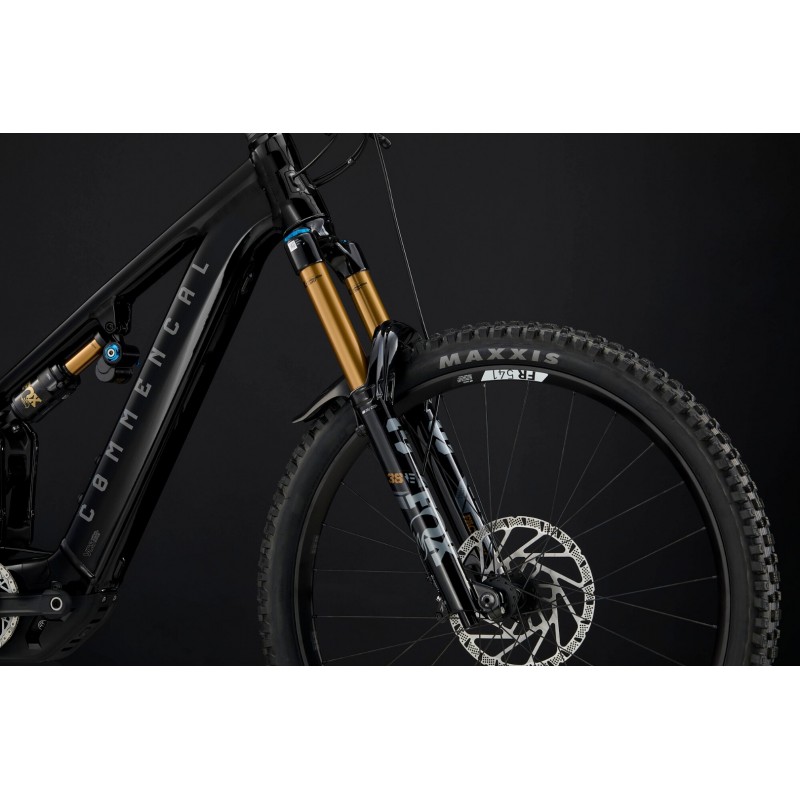

FORK

FOX 38 Factory E-Bike, 180 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

HEADSET

ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings

STEM

RIDE ALPHA 40
40 mm extension, 31.8 mm

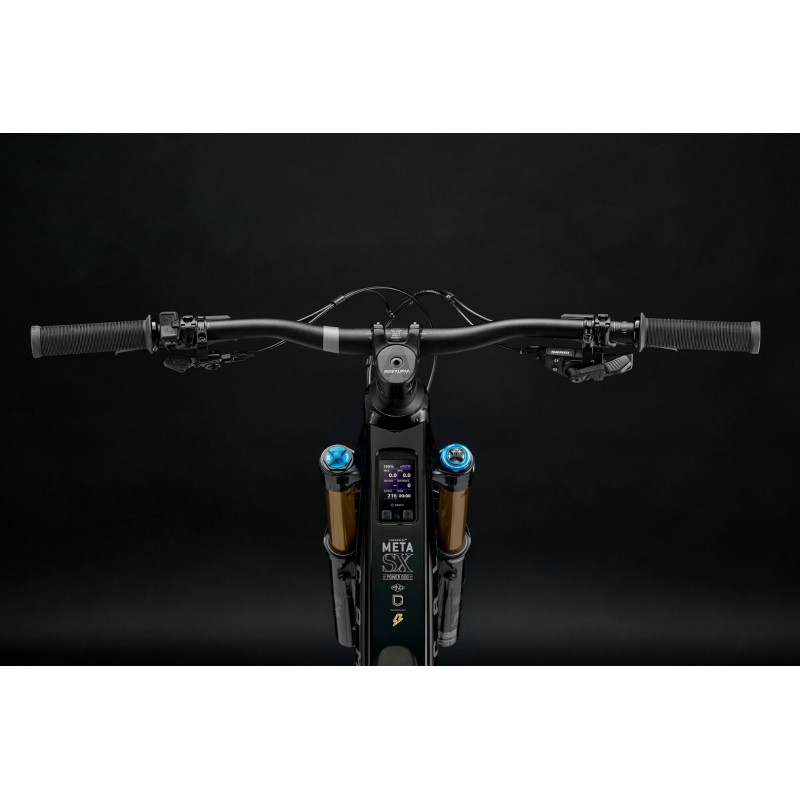

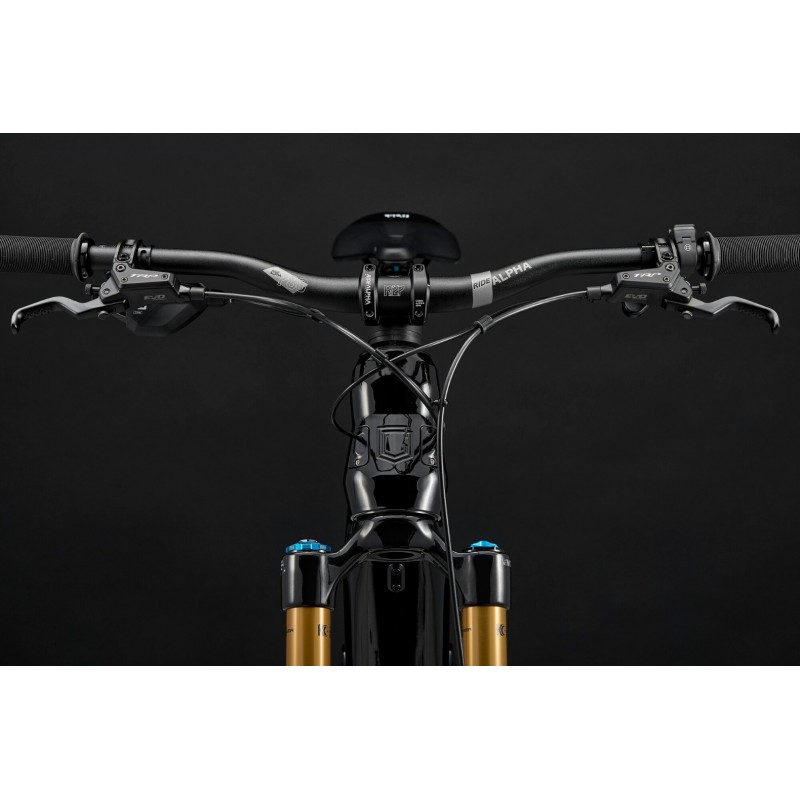

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI Longneck 2.1
Soft compound, single clamp, black

BRAKES

TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm width

SHIFTERS

SRAM Eagle 90
12s

CHAIN GUIDE

RIDE ALPHA
32-34t

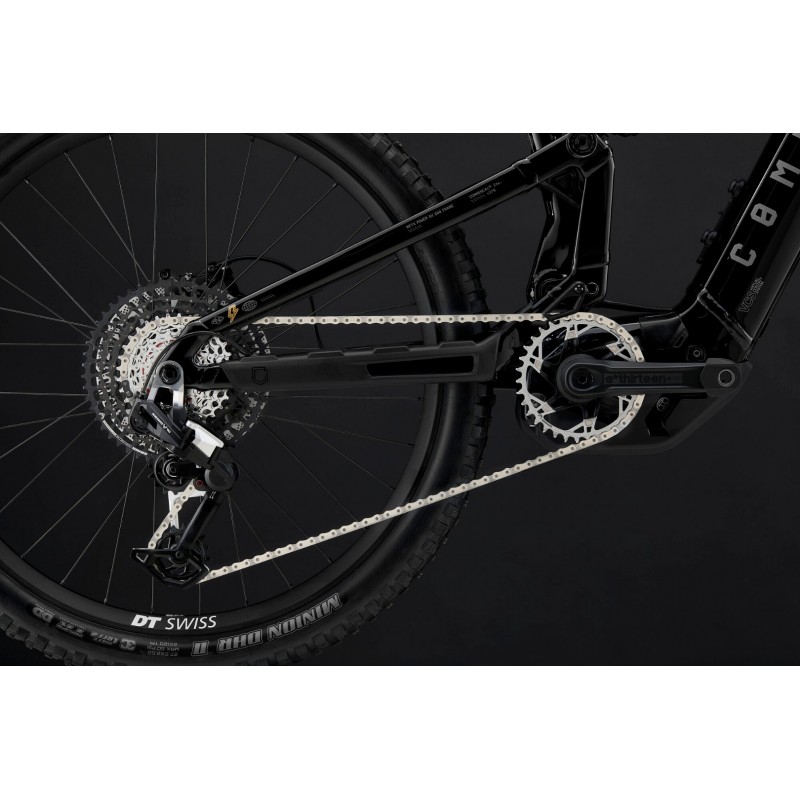

REAR DERAILLEUR

SRAM Eagle 90
12s

CRANKSET

E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mount

CHAIN

SRAM GX T-Type
12s, Flattop

CASSETTE

SRAM GX T-Type
12s, 10-52t

RIMS

DT SWISS FR541
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

HUBS

Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

Included with wheelset

TYRES

Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TR

SEAT POST

ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XL

SADDLE

FIZIK Terra Aidon X5
145 mm width, Kium Mobius rails

WEIGHT

25,5 kg / 56.21 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
