FRAME:

META POWER SX BOSCH, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu Bearings

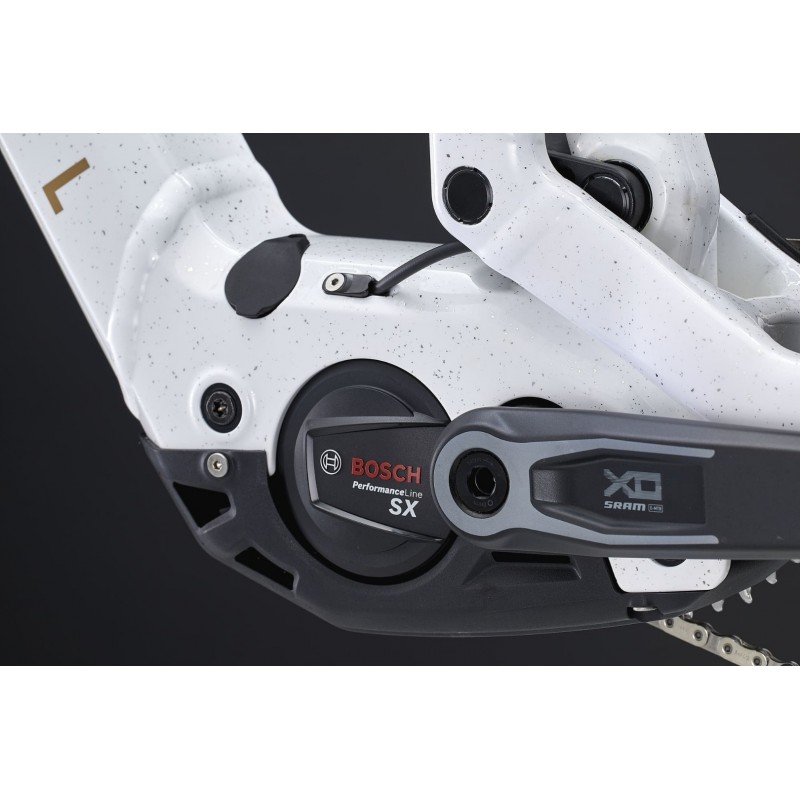

MOTOR:

BOSCH Performance Line SX
Max. torque: 55 N.m, 250 W

BATTERY:

BOSCH Compact Powertube 400
Fully integrated main battery, 400 Wh

DISPLAY:

BOSCH System Controller
ON/OFF switch, assist mode level, battery charge level

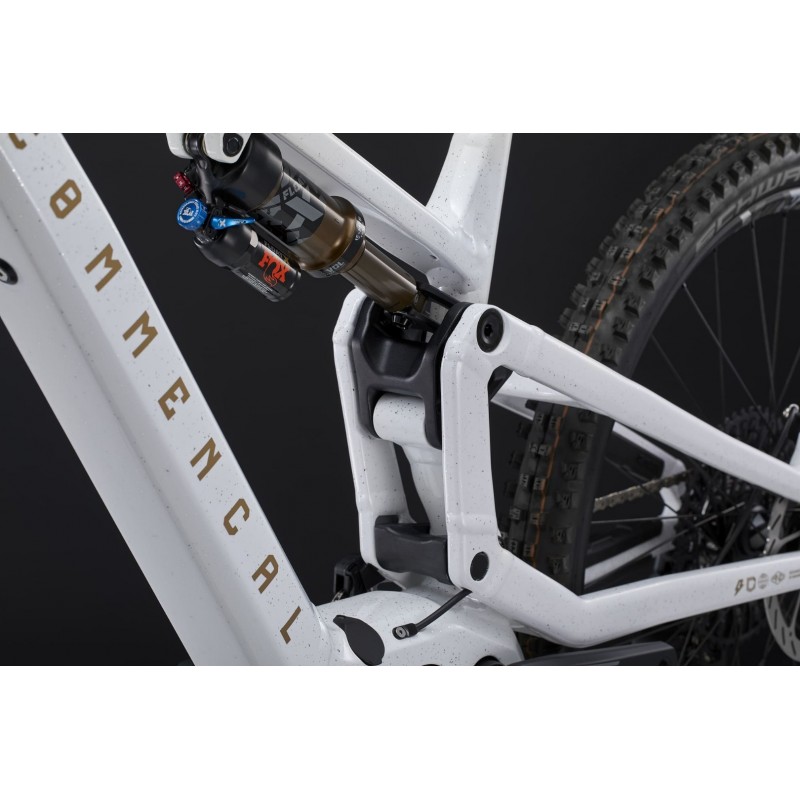

SHOCK:

FOX Float X Factory
230 x 65 mm, 2-postion (open/firm) lever, LSC, LSR, 0.4 spacers

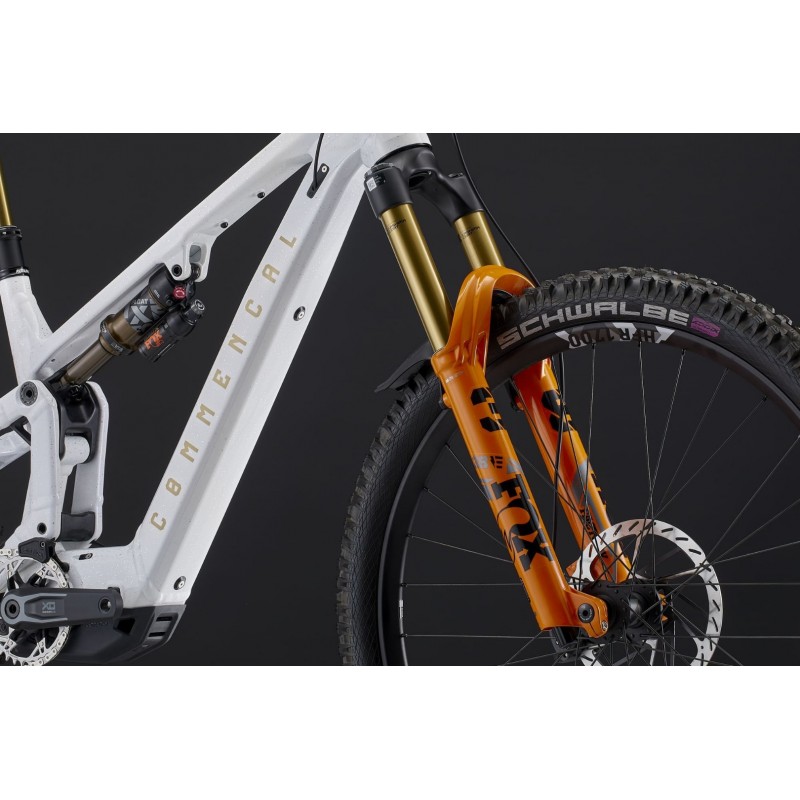

FORK:

FOX 38 Factory E-Bike, 170 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

HEADSET:

ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings

STEM;

RIDE ALPHA 40
40 mm extension, 31.8 mm

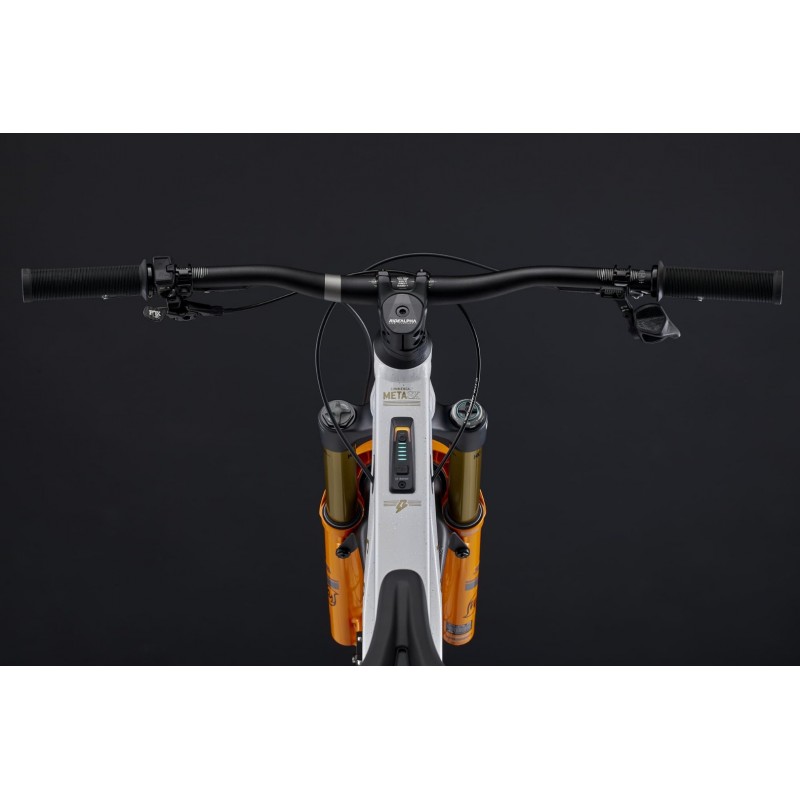

HANDLEBAR:

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS:

ODI Longneck 2.1
Soft compound, single clamp, black

BRAKES:

SRAM MAVEN Silver, 4 pistons, steel-backed organic pads
Rotors: SRAM HS2 200mm, 6-bolt

SHIFTERS:

SRAM AXS POD Controller
12s

CHAIN GUIDE:

RIDE ALPHA
32-34t

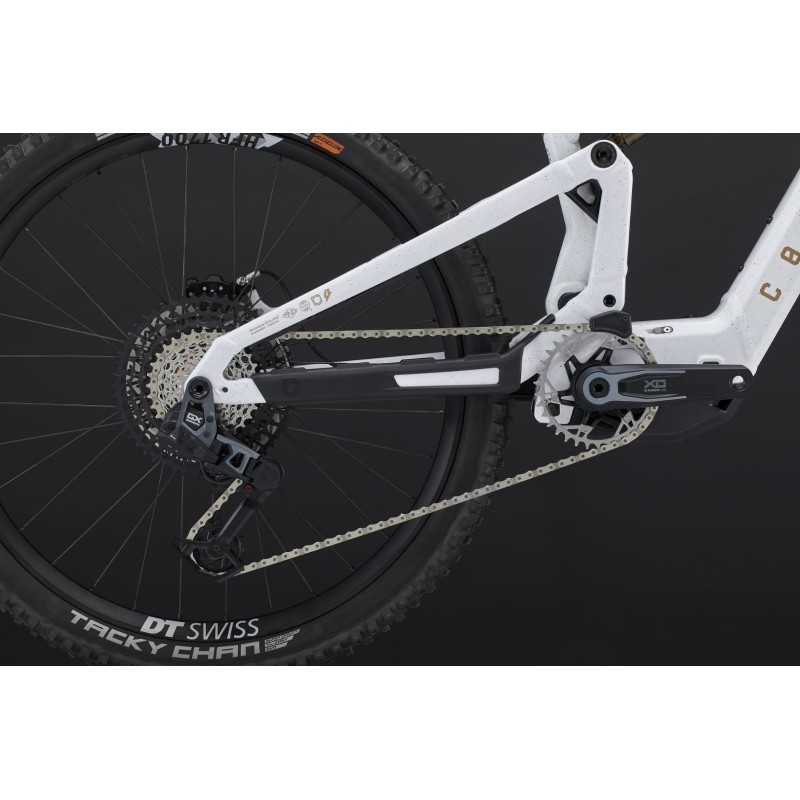

REAR DERAILLEUR:

SRAM GX Eagle Transmission
12s, AXS, T-Type

CRANKSET:

SRAM X0 Eagle E-MTB, 155 mm crank arms, Bosch
Chainring: SRAM XX Eagle Transmission E-MTB, 34t for Bosch system Gen 4, direct mount, T-Type

CHAIN:

SRAM GX Eagle Transmission
12s, Flattop, T-Type

CASSETTE:

SRAM GX Eagle Transmission
12s, 10-52t, T-Type

RIMS:

DT SWISS HFR1700 Classic
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

HUBS:

DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, 24t, Sram XD, e-bike specific - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES:

DT SWISS Hybrid 3
Straightpull, 2.34/2.0 mm, double butted, stainless, with ProLock, black

TYRES:

Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super Gravity, Addix Soft, Tubeless Easy- Front: 29" x 2.4'', Super Trail, Addix Ultra Soft, Tubeless Easy

SEAT POST:

FOX Transfer Factory
34.9 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL

SADDLE:

FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius rails

WEIGHT:

21,9 kg / 48.39 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

CRANKBROTHERS Stamp 1

COLOUR:

Glittery White
Shiny Finish

ACCESSORIES:

Down tube protector, chainstay protector, seatstay protector, Fox 38 specific fender, pedals, included with Fidlock bases, down tube plastic film protector
Battery charger: BOSCH 4A Charger. Compact size & lightweight

*Please note that bike specs are subject to change without prior notice.
