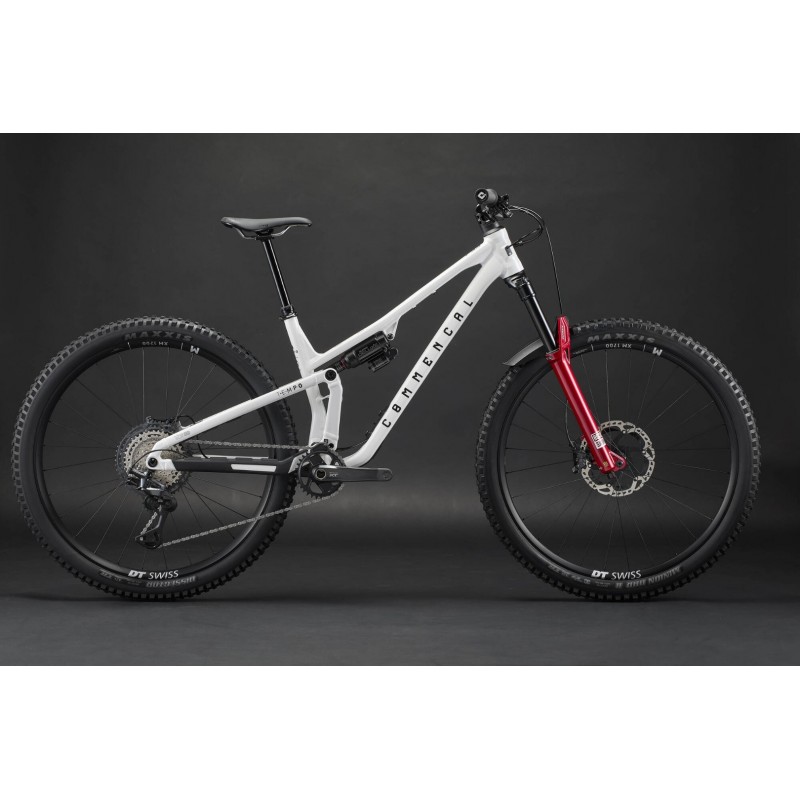

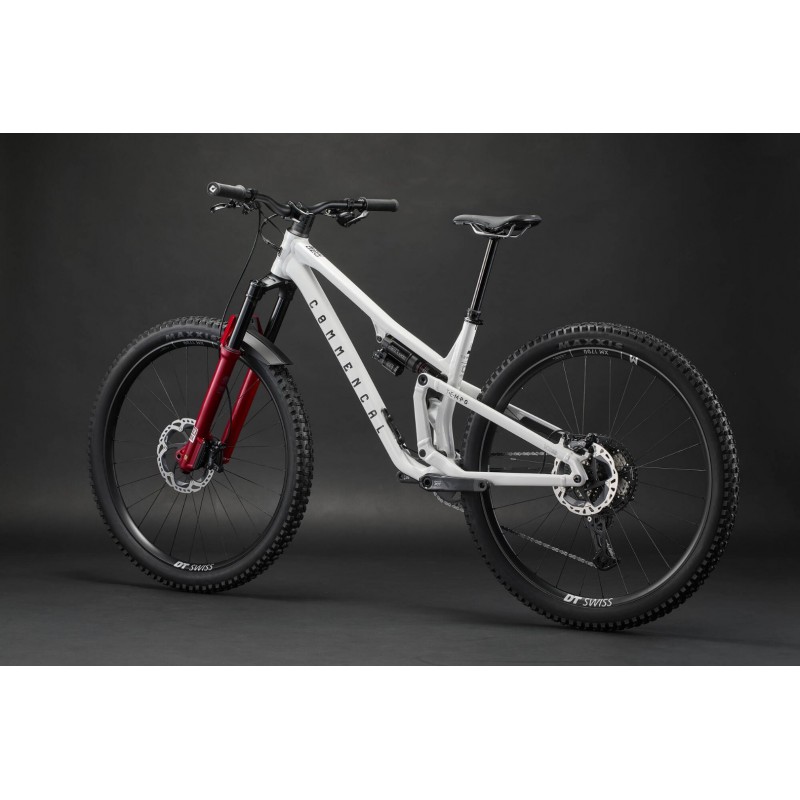

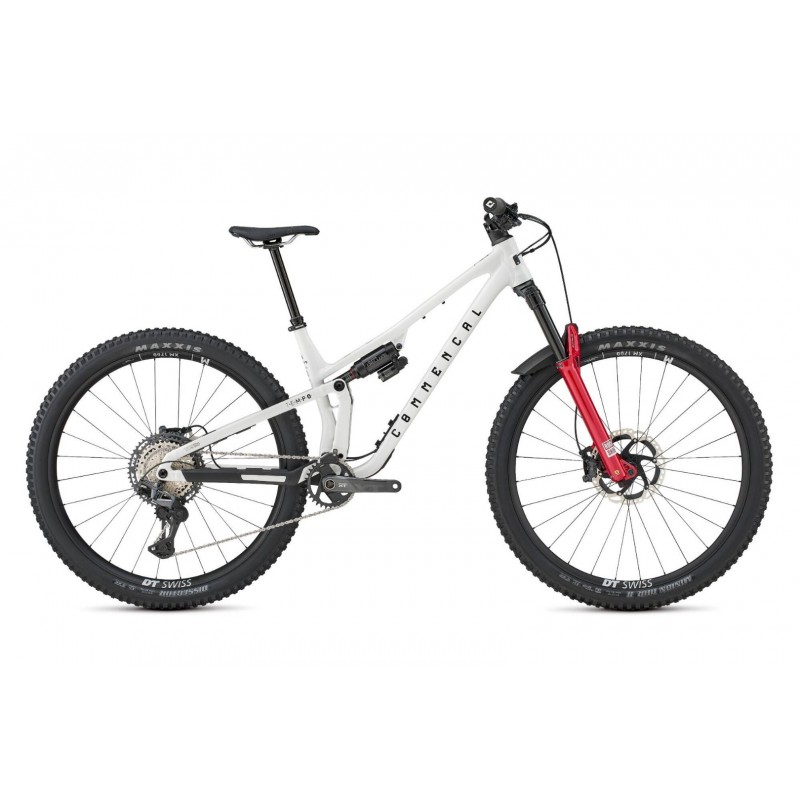

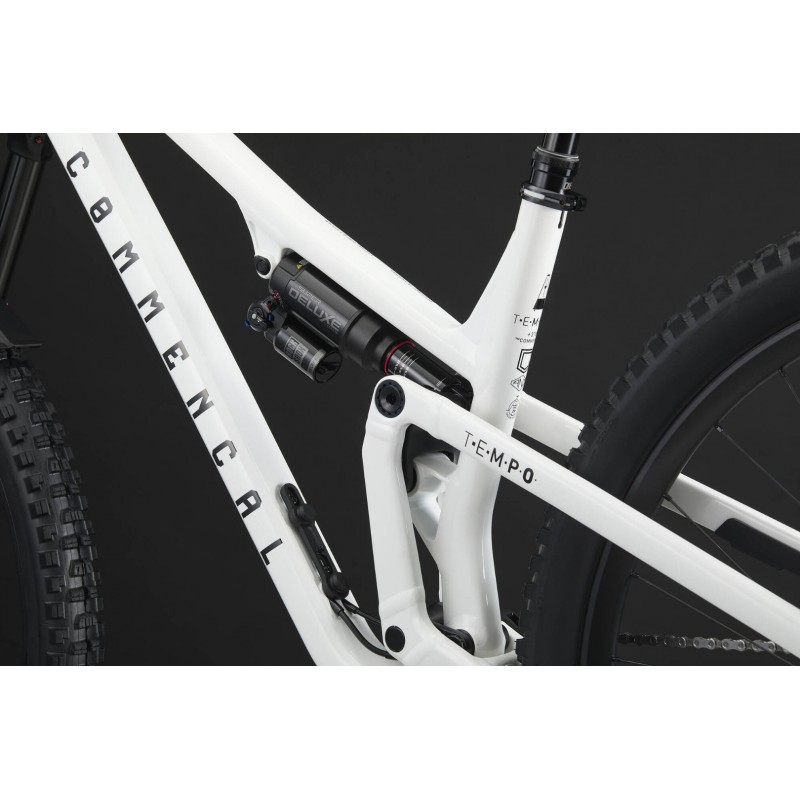

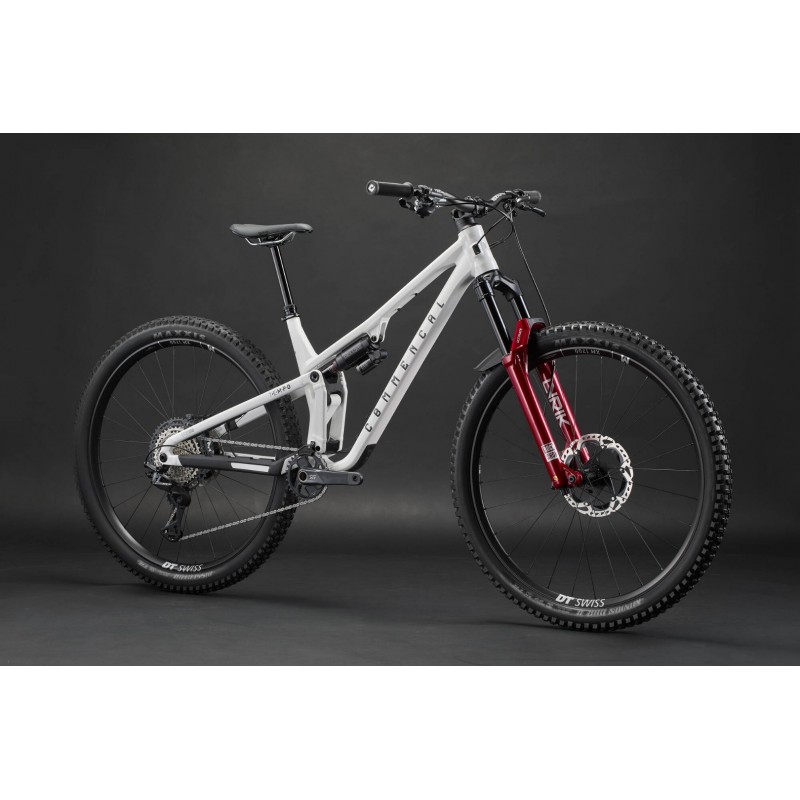

FRAME

T.E.M.P.O., 125 mm travel

29'', Alloy 6066, triple butted tubes, T4, T6.

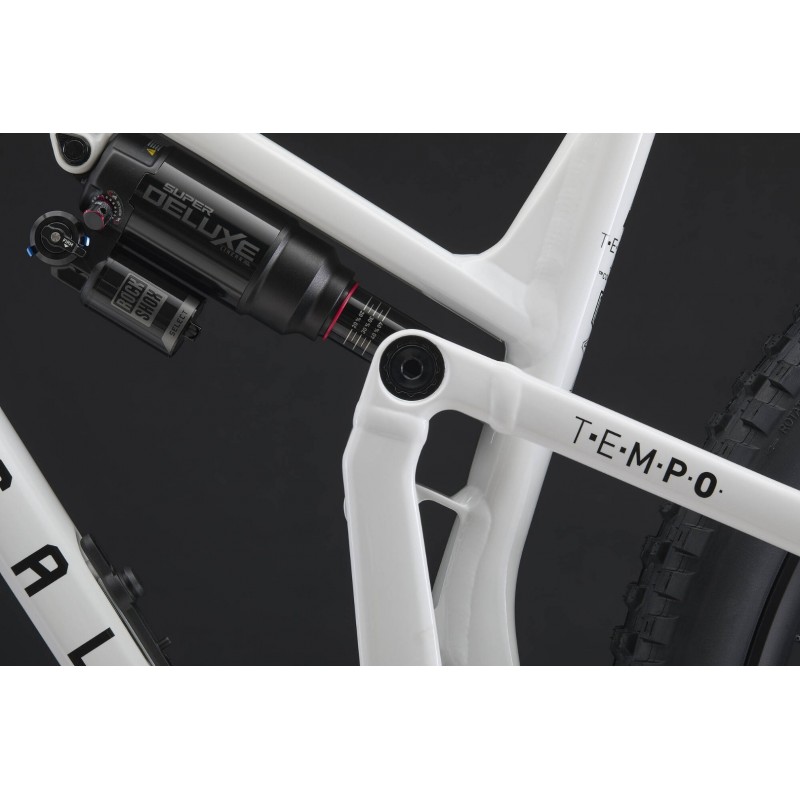

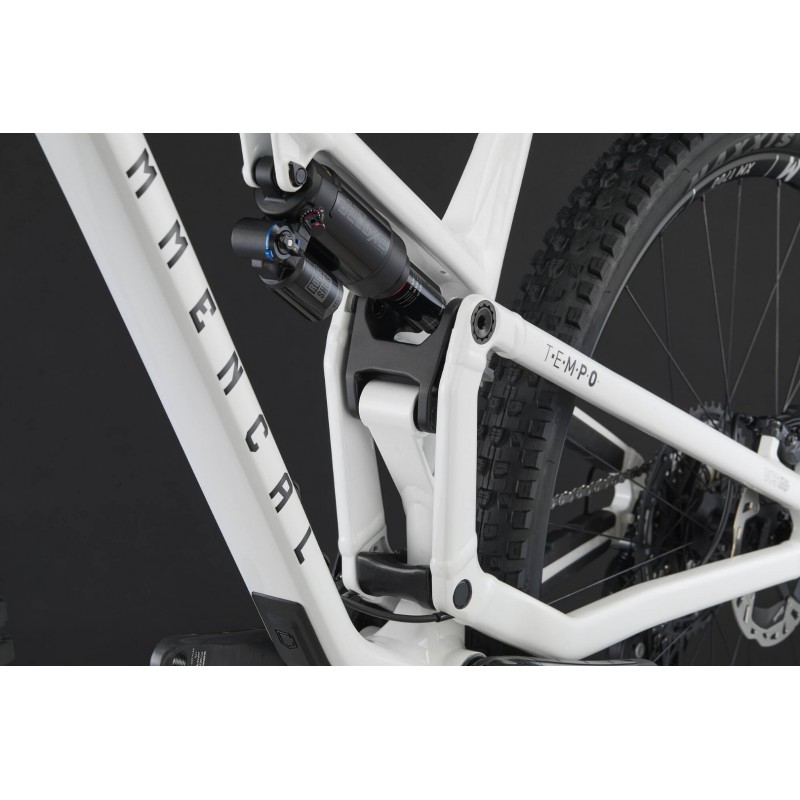

SHOCK

ROCKSHOX Super Deluxe Select

210 x 50 mm, Pos adjustment, Rebound

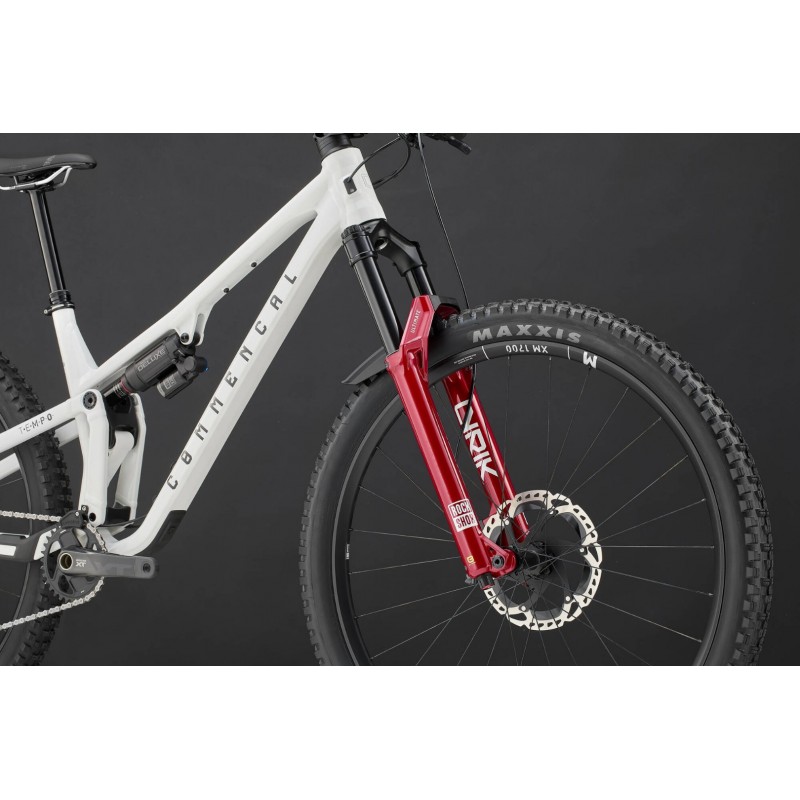

FORK

ROCKSHOX Lyrik Ultimate, 140 mm travel

29'', Charger 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110), 44 mm offset

HEADSET

ACROS ZS56/ZS56

Alloy cups, sealed bearings

STEM

RIDE ALPHA 40

40 mm extension, 31.8 mm

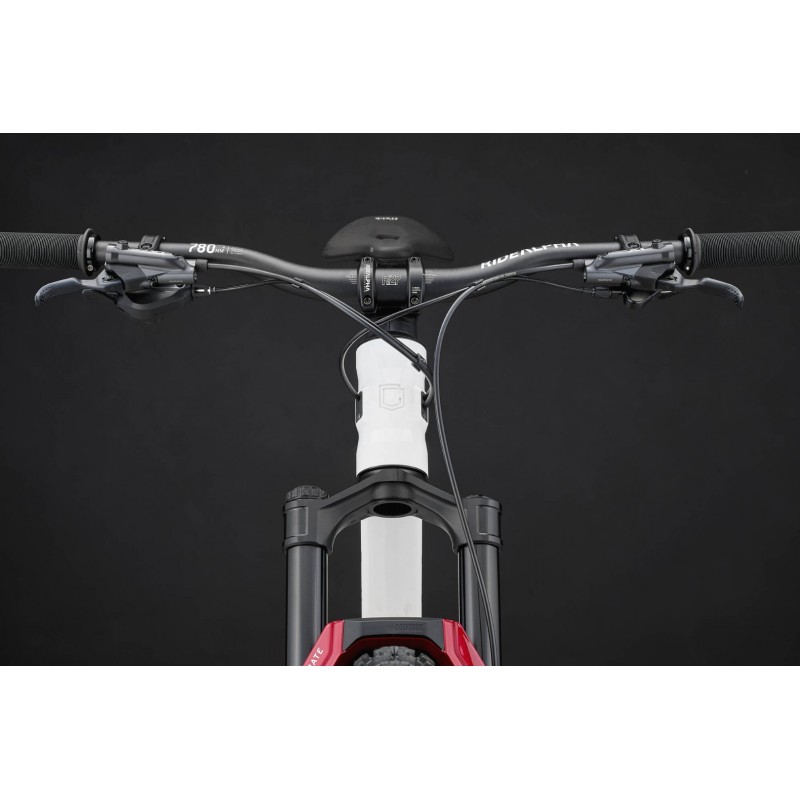

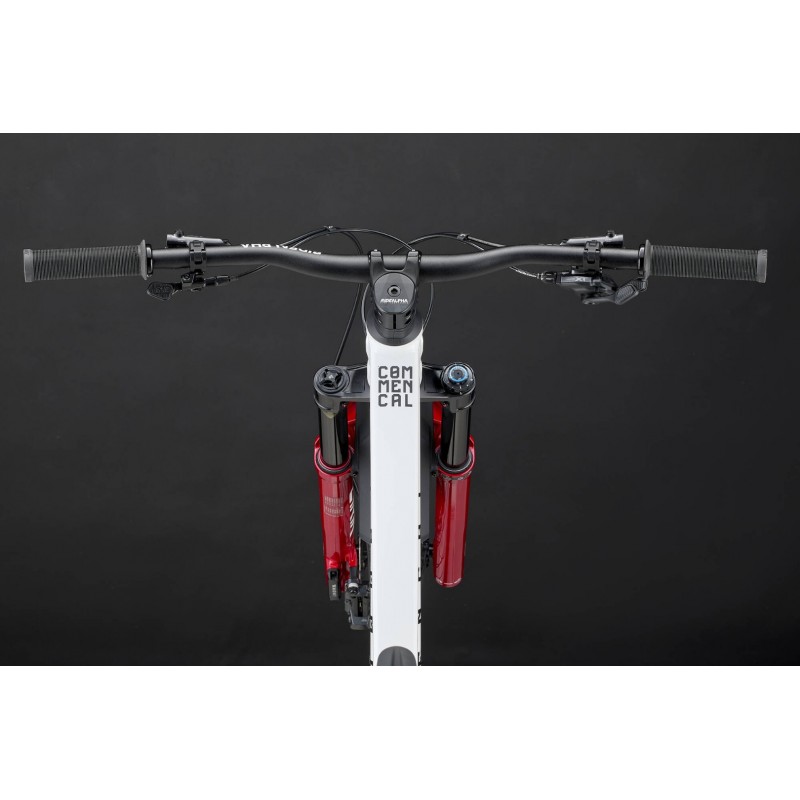

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M/L - RIDE ALPHA R35 800 on XL

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M/L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL

GRIPS

RIDE ALPHA Mushroom

Single clamp, black

BRAKES

SHIMANO XT, 4 pistons

Rotors : SHIMANO RT-MT905, 203 mm / 180 mm, 6-bolts

SHIFTERS

SHIMANO XT

12s

CHAIN GUIDE

COMMENCAL

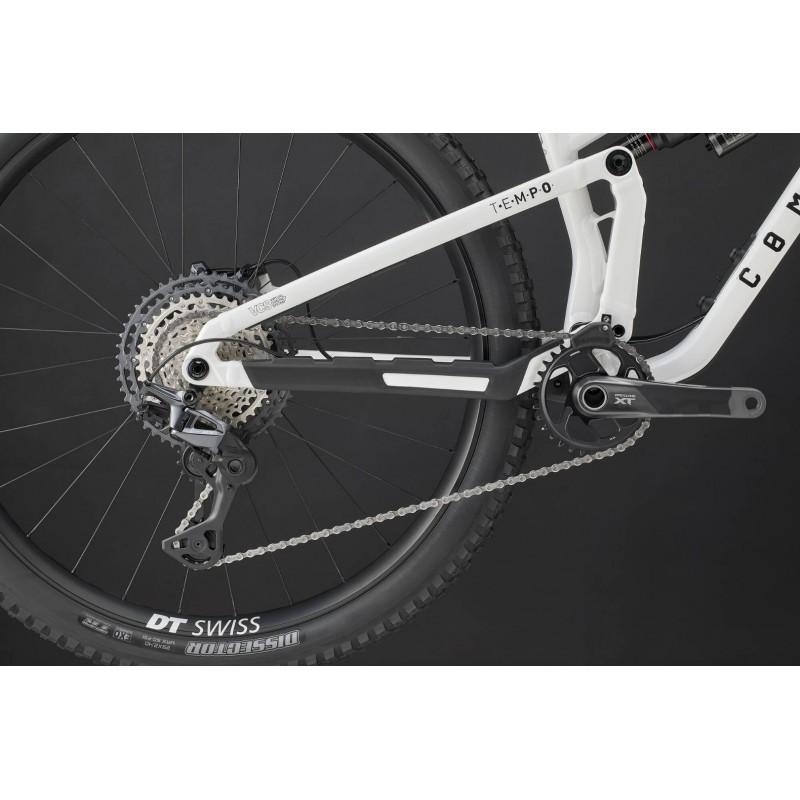

REAR DERAILLEUR

SHIMANO XT

12s

BOTTOM BRACKET

SHIMANO MT800

BB92, Pressfit

CRANKSET

SHIMANO XT, 170 mm

Chainring : SHIMANO XT, 32t

CHAIN

SHIMANO XT

12s

CASSETTE

SHIMANO XT

12s, 10-51t

RIMS

DT SWISS XM1700 Classic

29", 32h, 30 mm inner width

HUBS

DT SWISS 350

Rear : 32h, sealed bearings, 12 x 148 mm, Microspline, DEG DF Technology - Front : 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear : MAXXIS Dissector - Front : MAXXIS Minion DHR II

Rear : 29''x2.4'', normal, EXO,  Tubeless ready  - Front : 29''x2.4'', EXO, MaxxGrip, Tubeless ready

SEAT POST

ONE UP Dropper V3

31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XM

SADDLE

WTB Solano SL Crmo

CRMO rails, Black

WEIGHT

15 kg / 33.06 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
