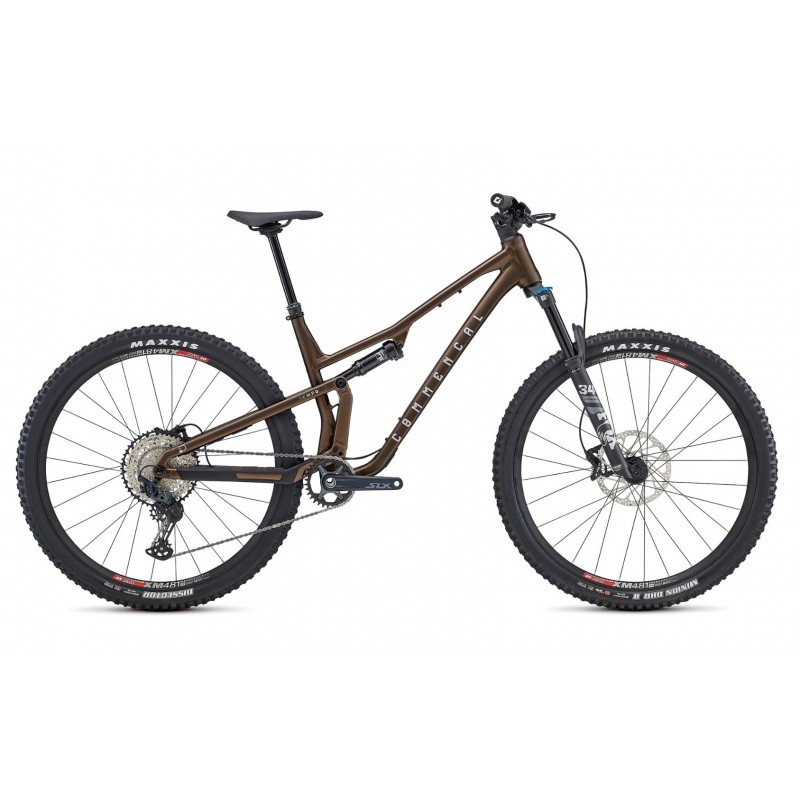

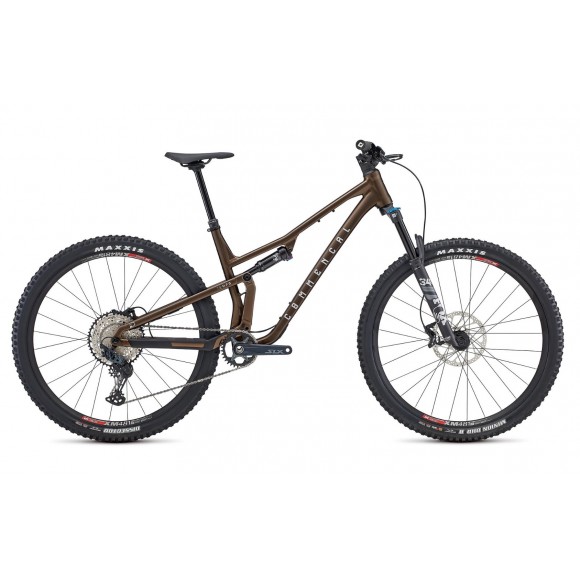

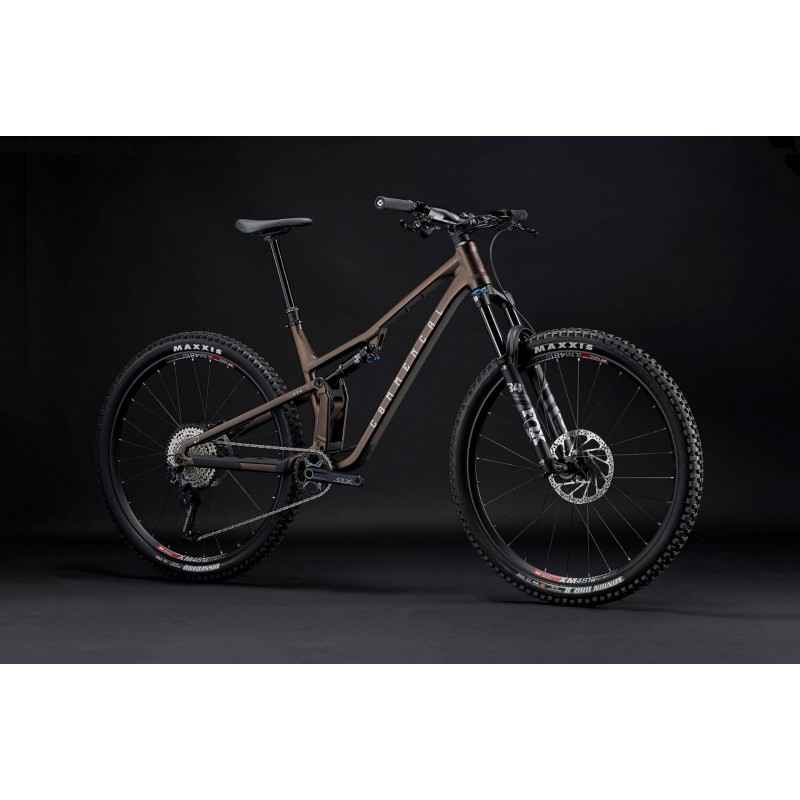

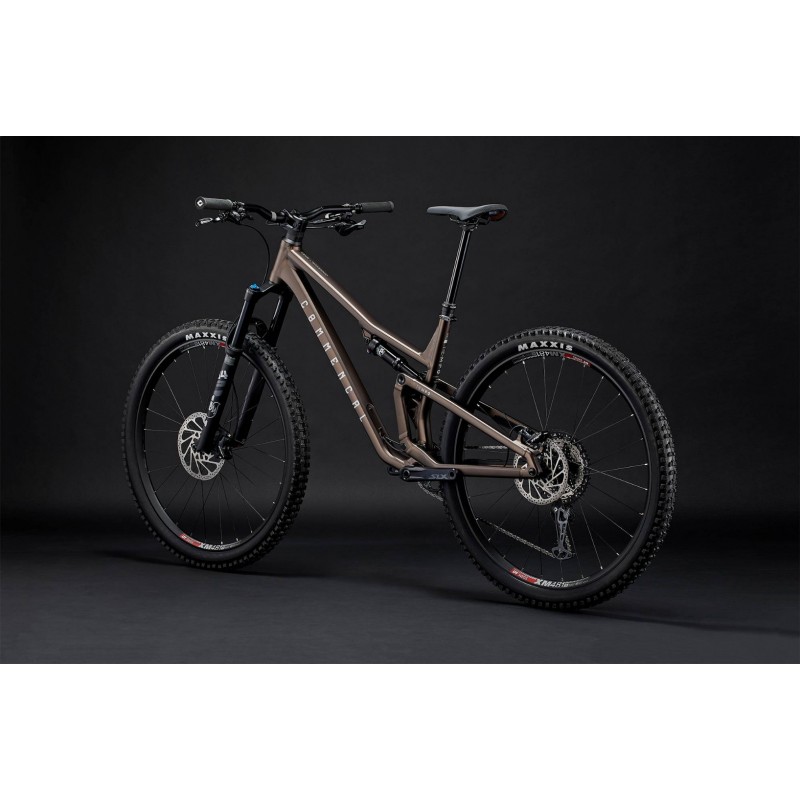

FRAME

T.E.M.P.O, 125 mm travel
29'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

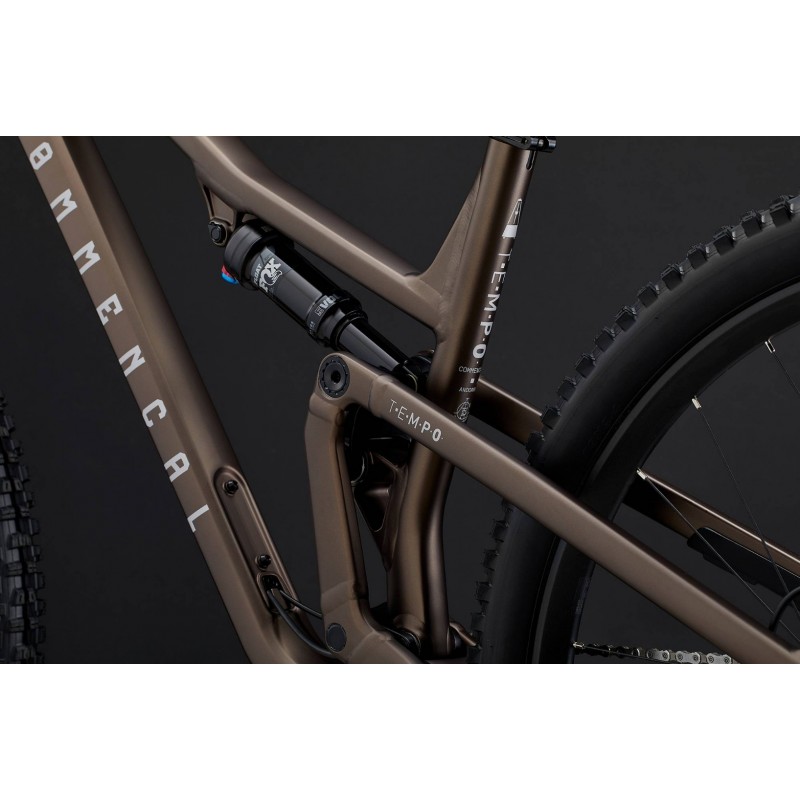

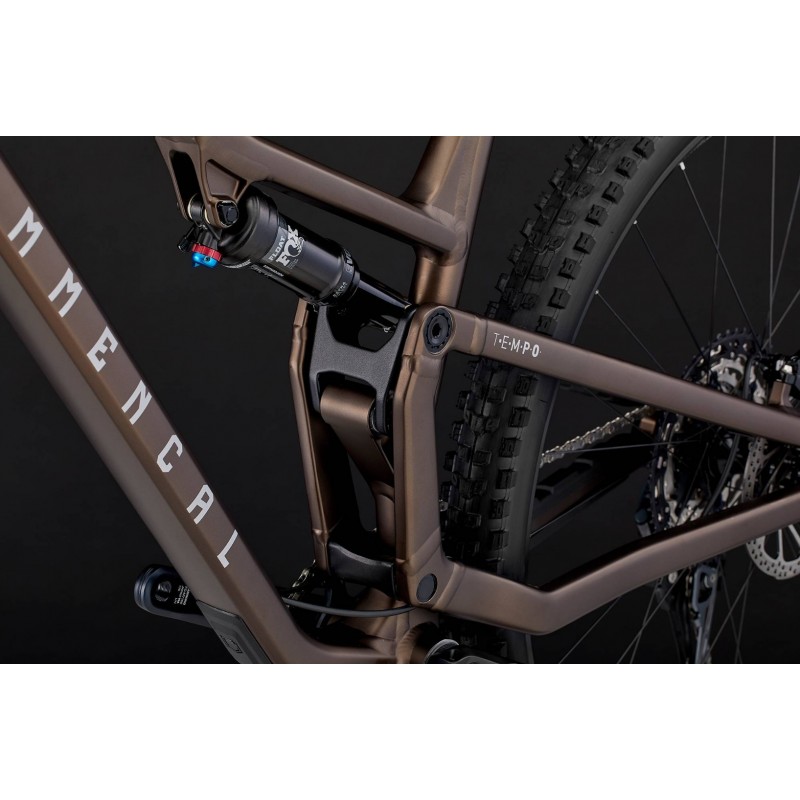

SHOCK

FOX FLOAT DPS Performance
210 x 50 mm, rebound, 3 positions, Evol LV, 0.4 spacer

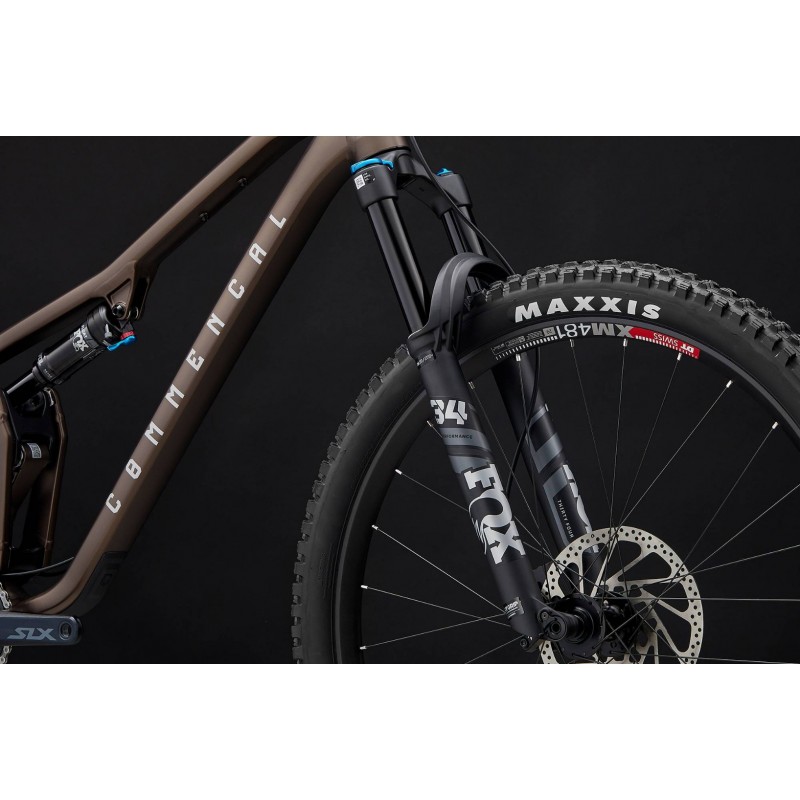

FORK

FOX 34 Performance, 140 mm travel
29", Float, Grip damper, LSR, 3 positions compression, Boost (15 x 110 mm), 51 mm offset, 1 spacer

HEADSET

ACROS ZS56 / ZS56
Alloy cups, sealed bearings, Integrated cable routing

STEM

RIDE ALPHA 40
40 mm extension, 31,8 mm

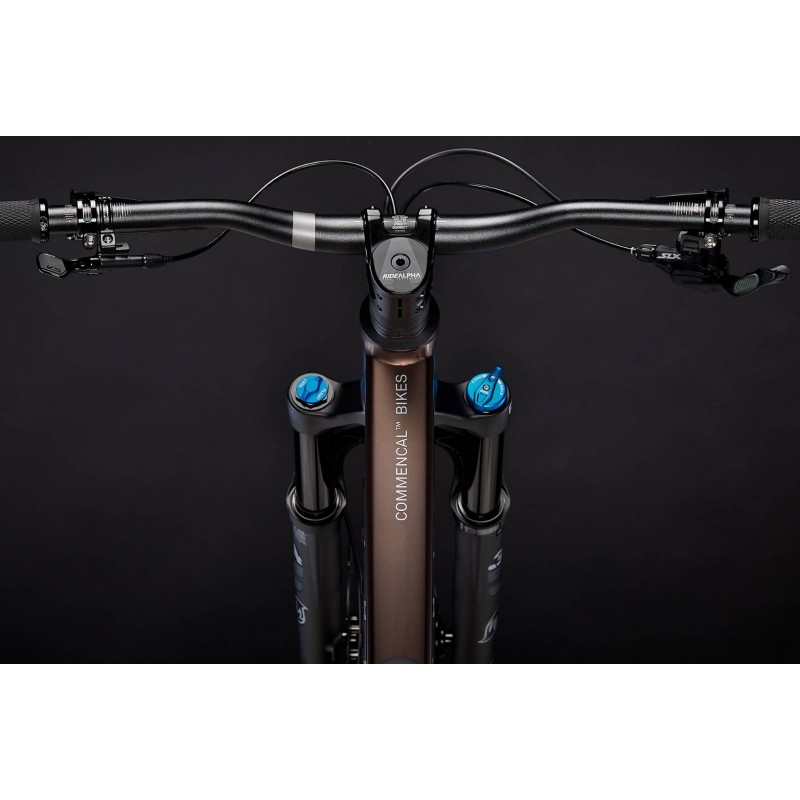

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI Elite Motion
Single clamp, black

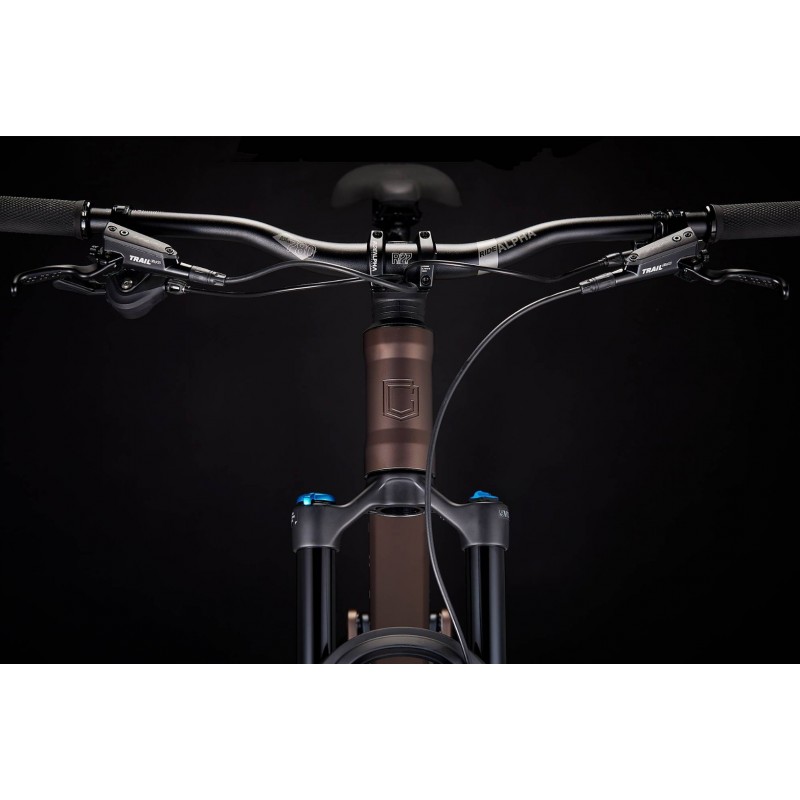

BRAKES

TRP Trail Evo, 4 pistons, I-Spec EV, resin pads
Rotors: TRP R1 203 / 180 mm, 6-bolt, 2.3 mm thickness

SHIFTERS

SHIMANO SLX
12s

REAR DERAILLEUR

SHIMANO SLX
12s

BOTTOM BRACKET

SHIMANO SMBB71
Pressfit

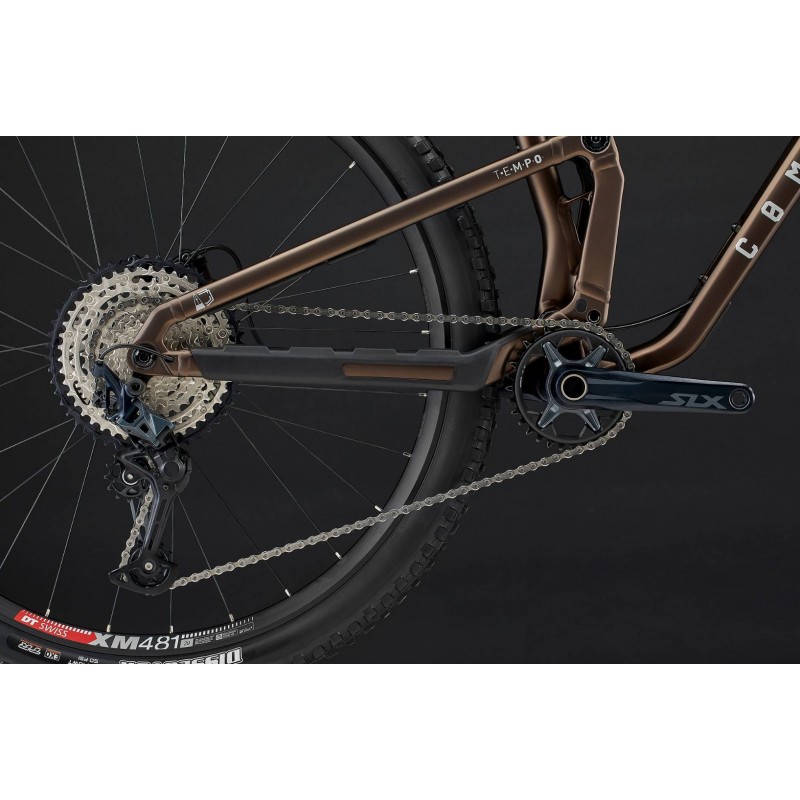

CRANKSET

SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Narrow-Wide

CHAIN

SHIMANO SLX
12s

CASSETTE

SHIMANO SLX
12s, 10-51t

RIMS

DT SWISS XM 481
29'', 28h, 30 mm inner width

HUBS

Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 28h, sealed bearings, 12 x 148 mm, SHIMANO Microspline freehub body - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

SAPIM D-Light
J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, dual compound, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

SEAT POST

KINDHSOCK Lev Integra
31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XL

SADDLE

FIZIK Terra Alpaca X5
145 mm width, S-alloy rails

WEIGHT

14,4 kg / 31,7 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
