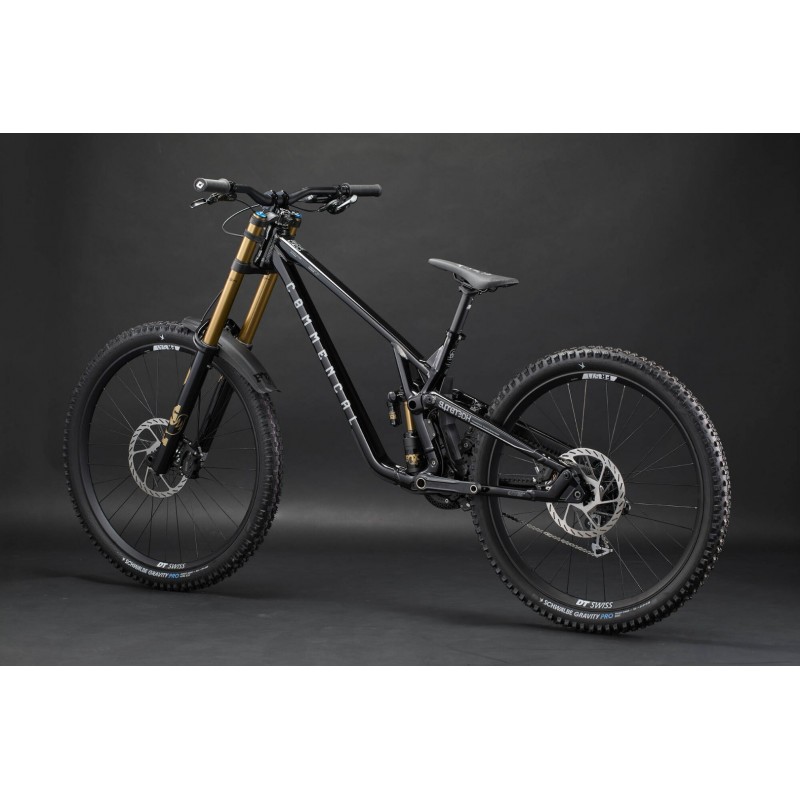

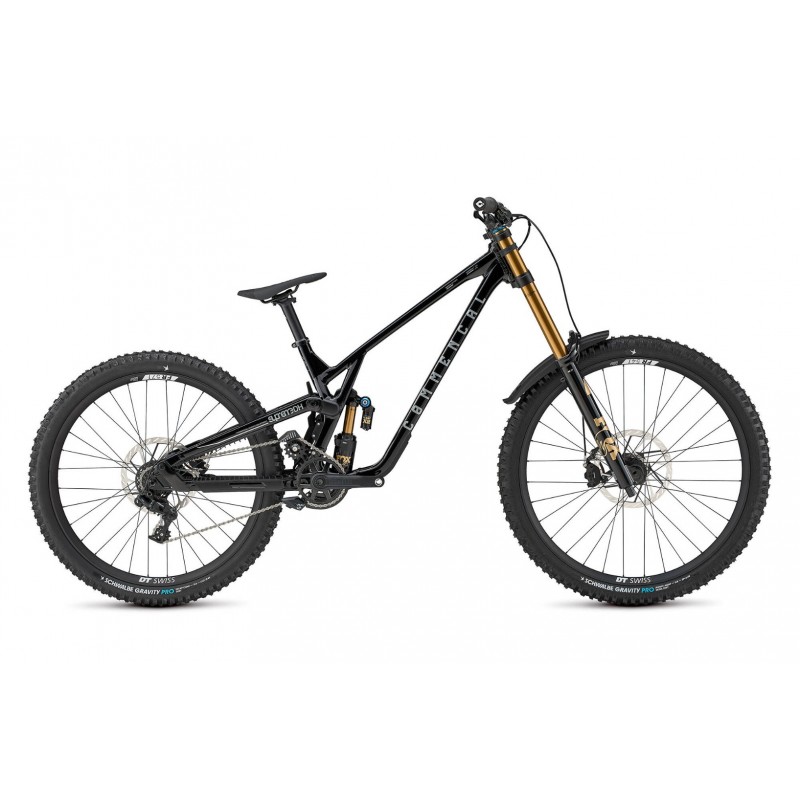

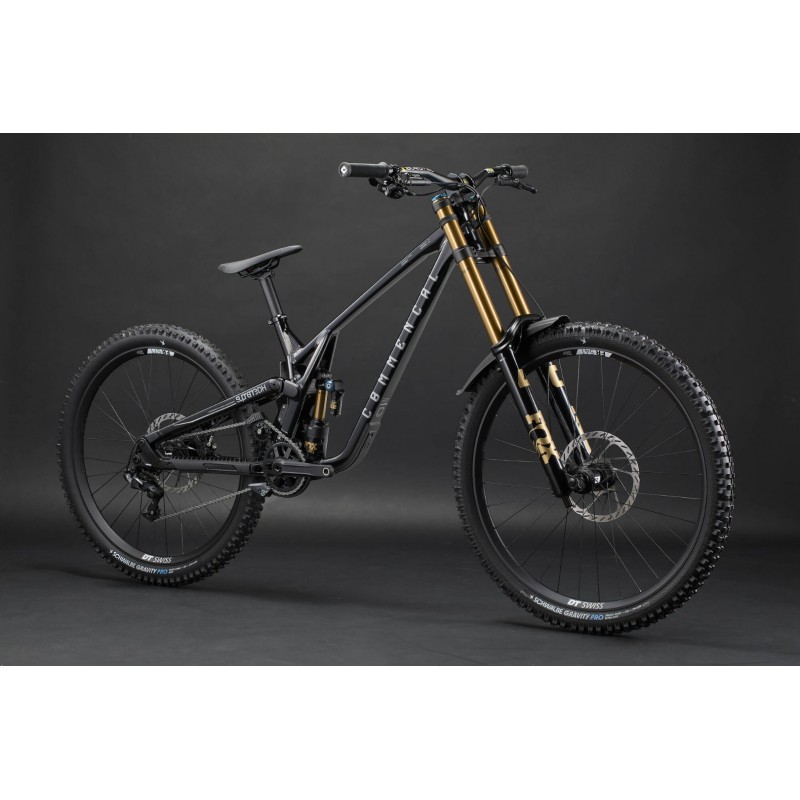

FRAME

SUPREME DH V5.2, 29/27, 220 mm travel

29/27'', Alloy 6066, triple butted tubes, T4, T6.

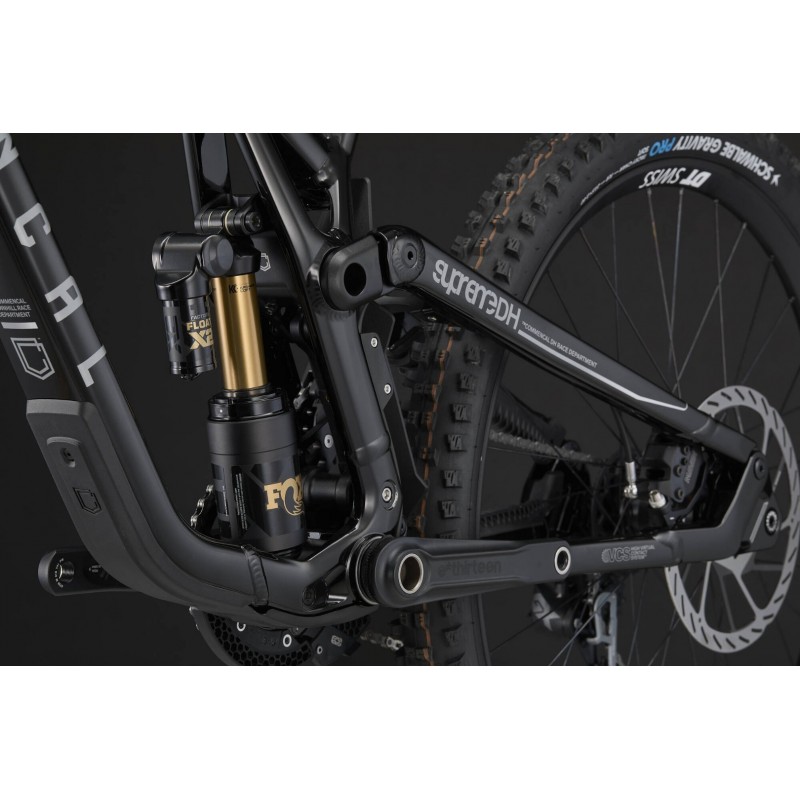

SHOCK

FOX FLOAT X2 Factory

250 x 75 mm, HSC, LSC, HSR, LSR

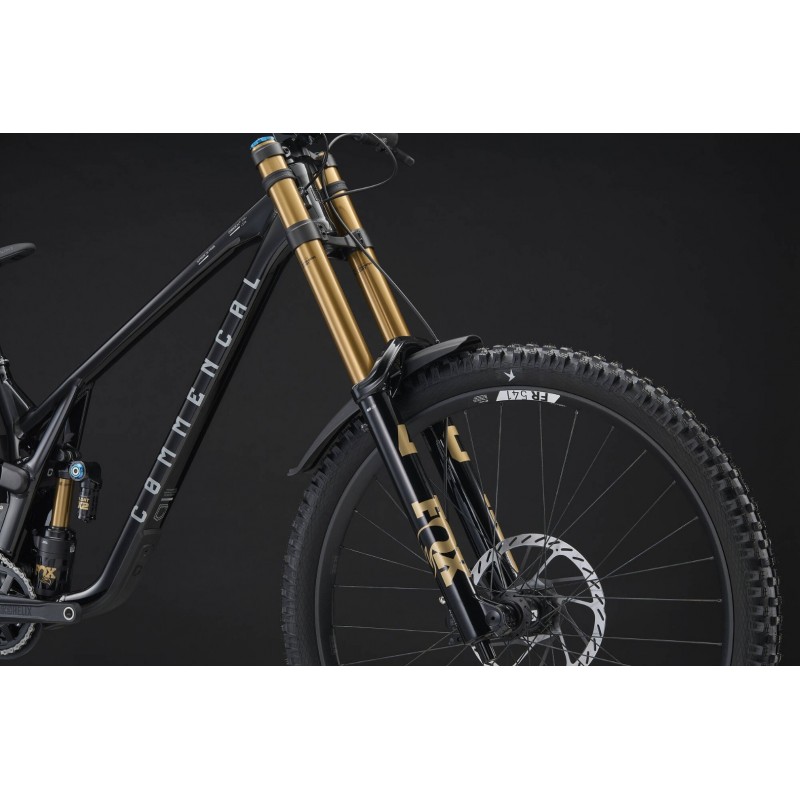

FORK

FOX 40 Factory, 200 mm

29", Grip X2, HSR, LSR, HSC, LSC, Boost 20 x 110 mm thru-axle, 52 mm offset, 2 tokens

HEADSET

CANECREEK Hellbender 70

ZS56/ZS56, alloy cups, sealed bearings

STEM

BURGTEC Direct Mount

45 mm extension, direct mount, 31.8 mm

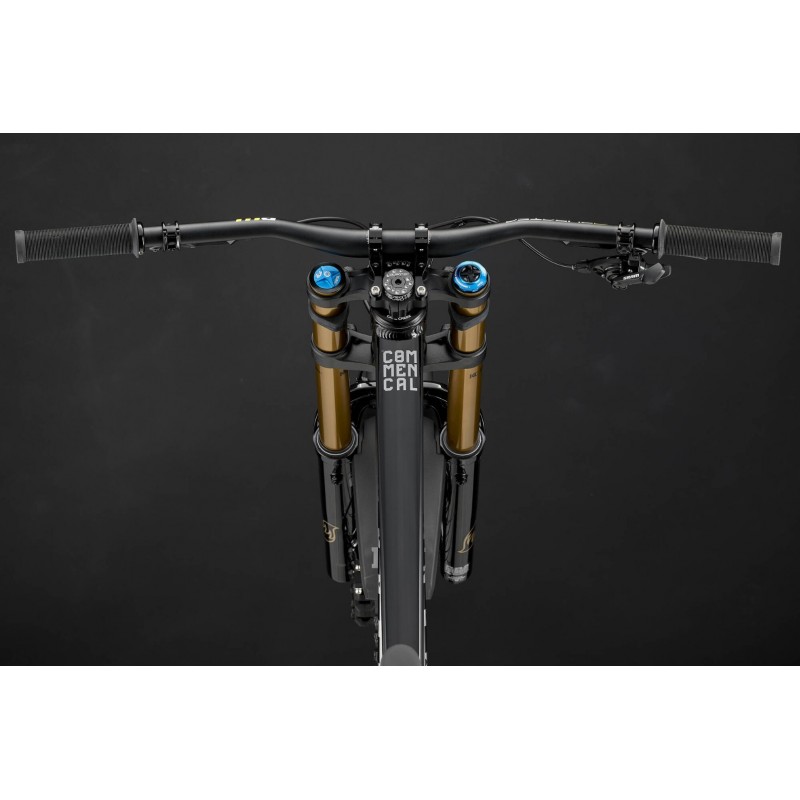

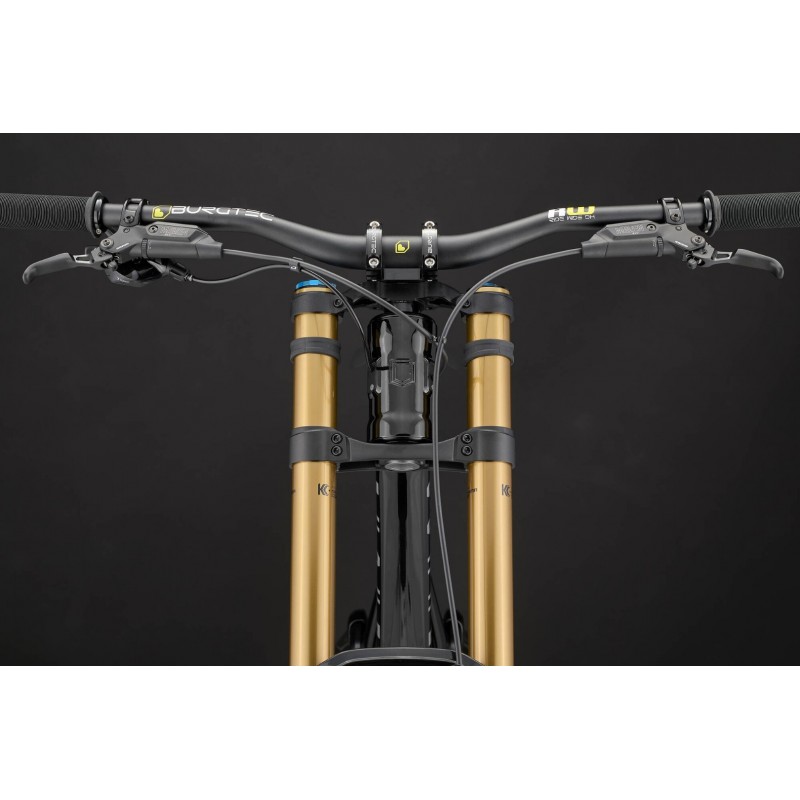

HANDLEBAR

BURGTEC Ride Wide

31.8 mm, 800 mm width, 30 mm rise, Alloy 6061

GRIPS

ODI Longneck V2.1

132 mm, Black clamp

BRAKES

SRAM Maven Silver, 4 pistons, sintered pads

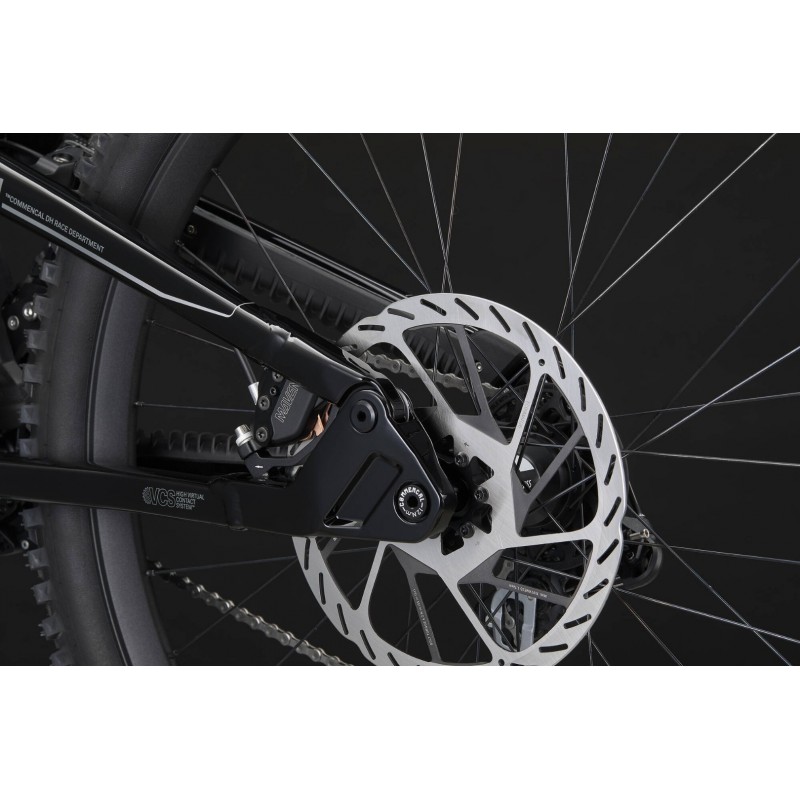

Rotors : SRAM HS2 220 mm, 6-bolts

SHIFTERS

SRAM GX DH

7s

CHAIN GUIDE

E13 LG1+

32-34t

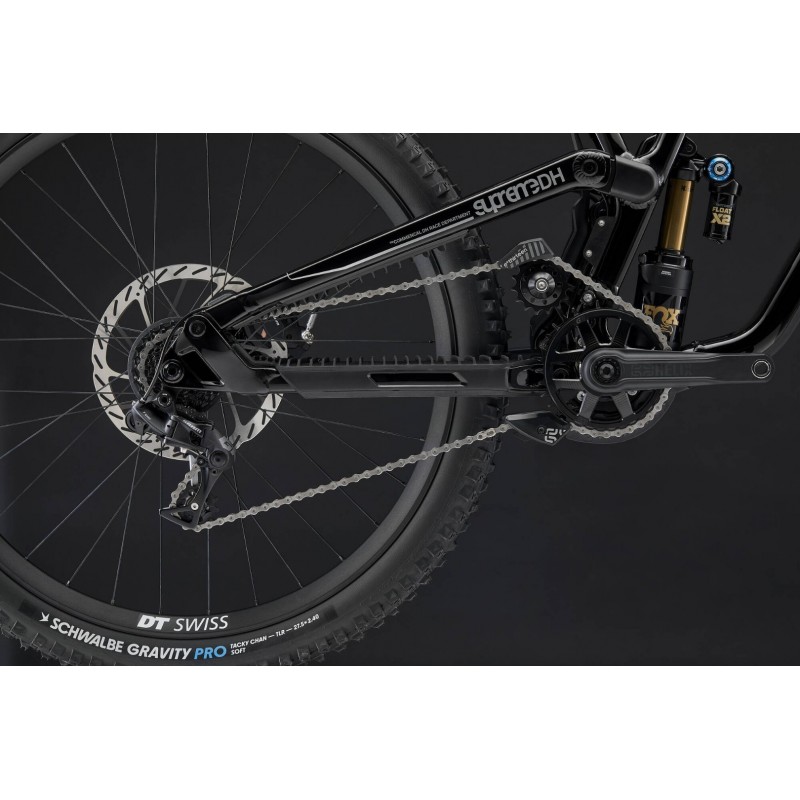

REAR DERAILLEUR

SRAM GX DH

7s

BOTTOM BRACKET

SHIMANO MT800P

BB107, pressfit

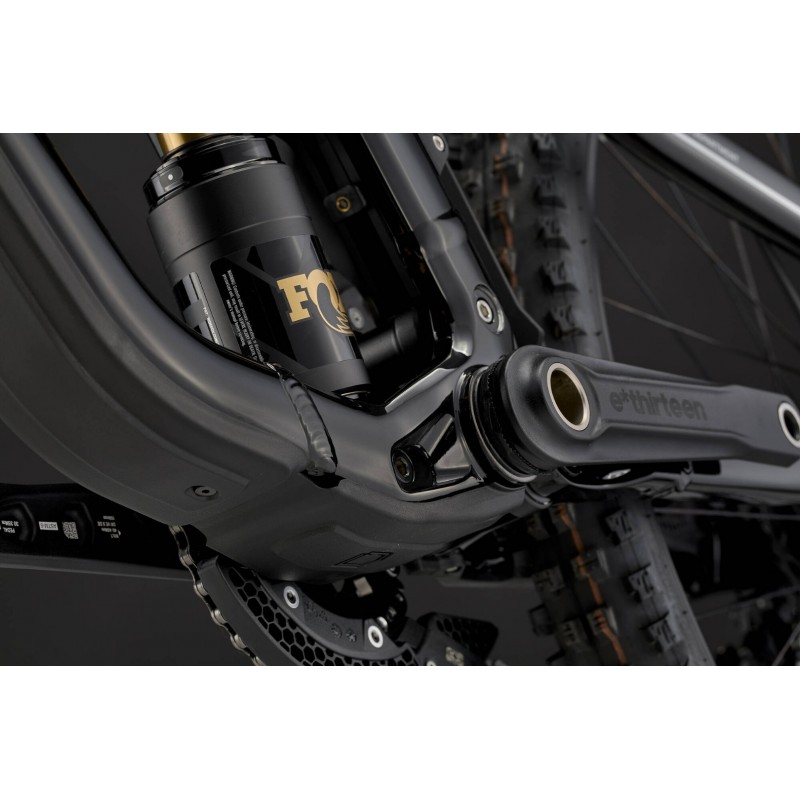

CRANKSET

E13 Helix core GR, 160 mm crank arms, DUB

Chainring : E13 Helix core GR, 34t

CHAIN

SRAM PC1110

11s, Black

CASSETTE

SRAM PG-720 DH

7s, 11-25t

RIMS

Rear : DT SWISS FR541 - Front : DT SWISS FR571

Rear : 27.5'', 32h, 30 mm inner width - Front : 29'', 32h, 30 mm inner width

HUBS

DT SWISS 350

Rear : 32h, sealed bearings, 12 x 157 mm, Hyperglide - Front : 32h, sealed bearings, 20 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black

TYRES

Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary

Rear : 27.5''x2.5'', Gravity Pro, Soft, Tubeless Ready - Front : 29''x2.5'', Gravity Pro, Ultra Soft, Tubeless Ready

SEAT POST

RIDE ALPHA

31.6 mm, 250 mm length

SADDLE

FIZIK Gravita Alpaca X5

130 mm width, S-Alloy rails, Team edition

WEIGHT

19 kg / 41.88 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No

COLOUR

Pure Black

Shiny Finish
