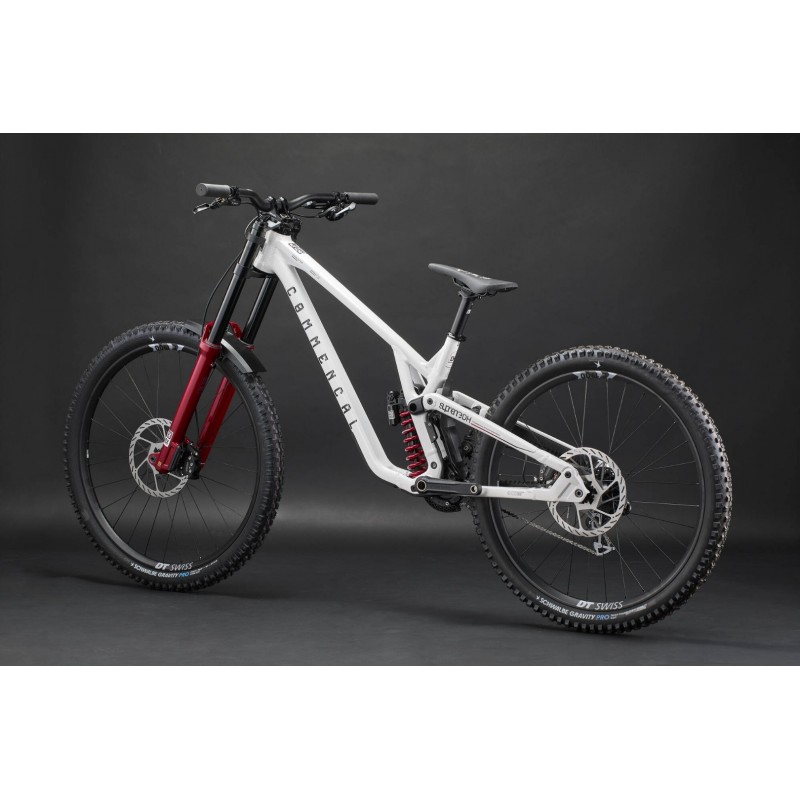

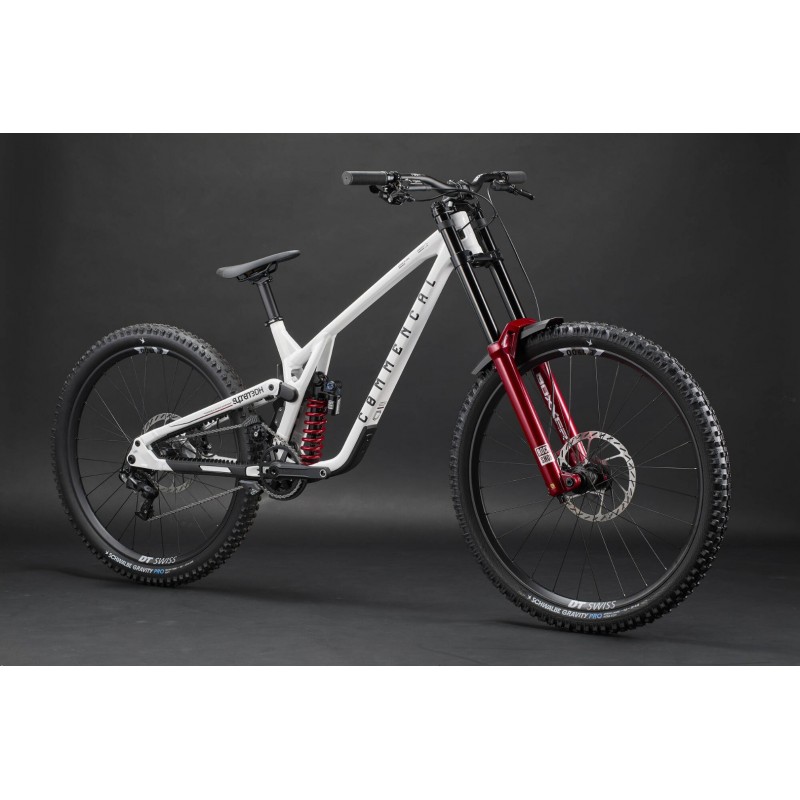

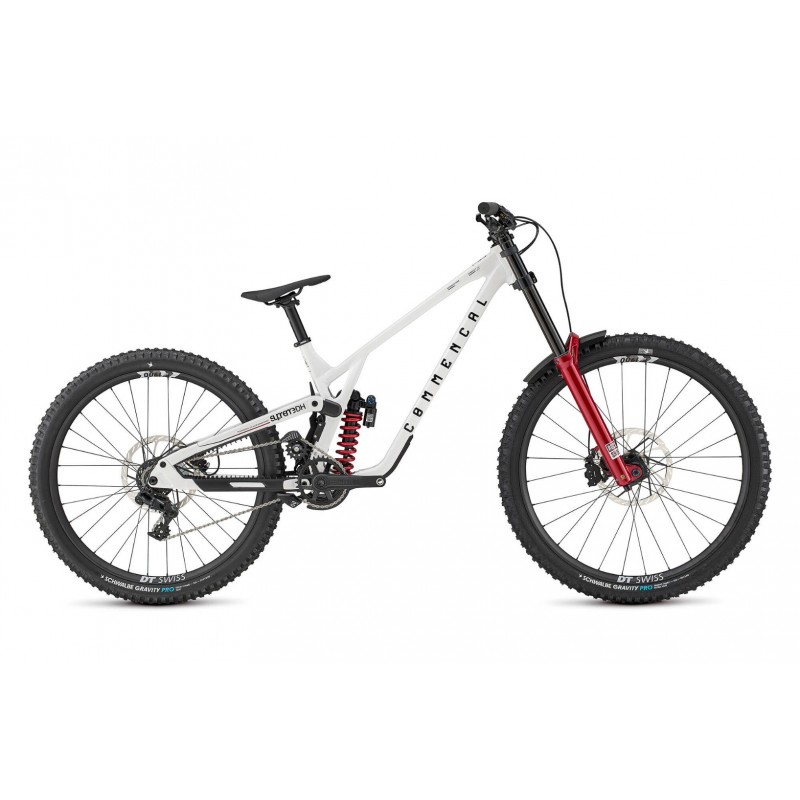

FRAME

SUPREME DH V5.2, 29/27, 220 mm travel

29/27'', Alloy 6066, triple butted tubes, T4, T6.

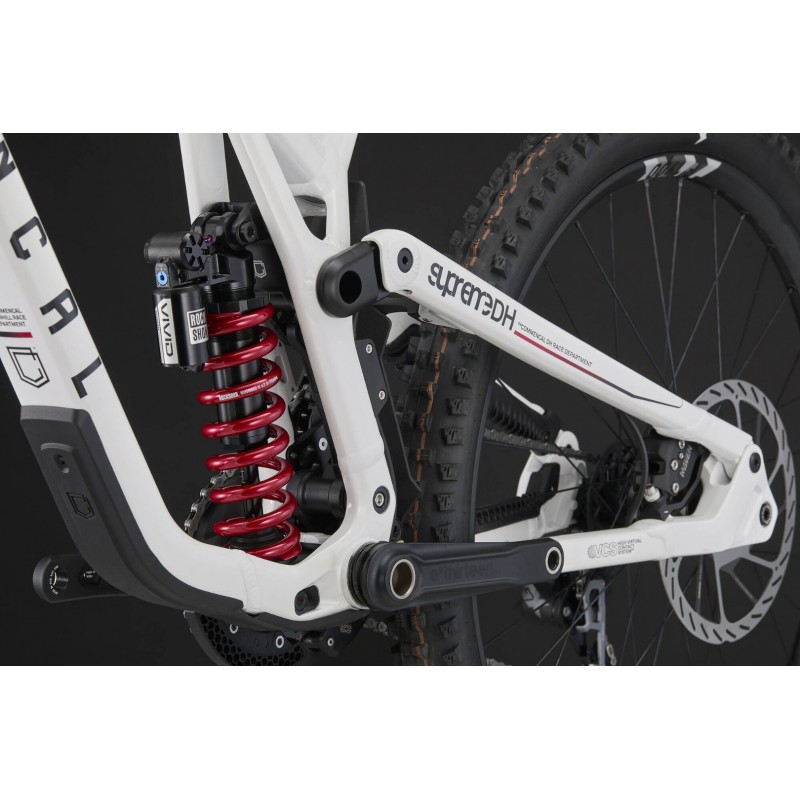

SHOCK

ROCKSHOX VIVID Ultimate DH

250 x 75 mm, RCT2 damper, HSC, LSC, rebound, Adjustable Bottom Out.

Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XL

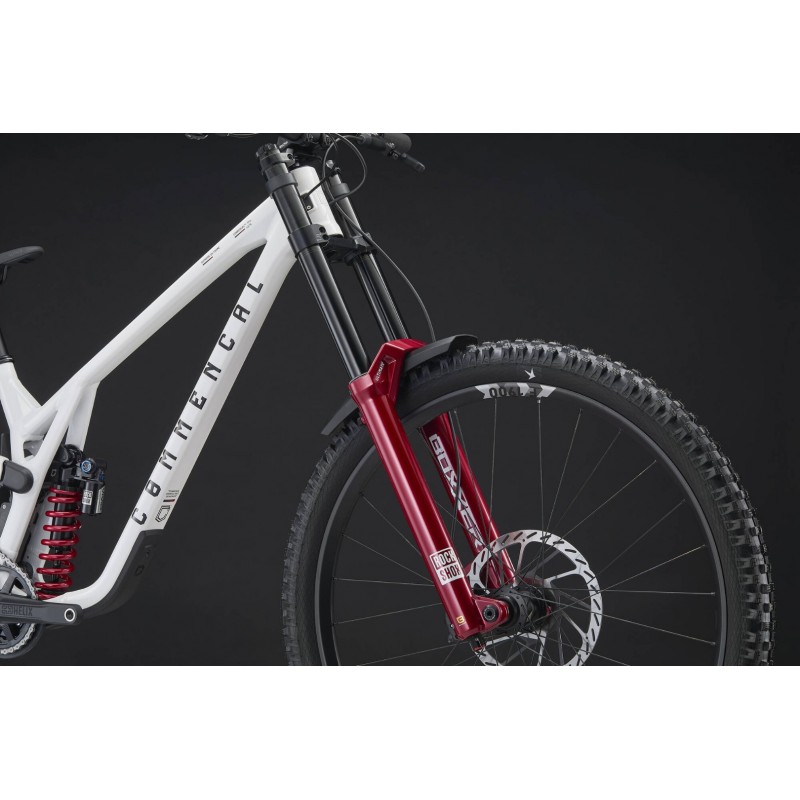

FORK

ROCKSHOX BOXXER Ultimate

27.5", Charger 3.2 RC damper, Linear XL air spring, HSC, LSC, rebound, 48 mm offset, 0 Token

HEADSET

ACROS ZS56/ZS56

Alloy cups, sealed bearings

STEM

RIDE ALPHA DH 40

Adjustbale 40 our 45 mm extension, direct mount, 31.8 mm

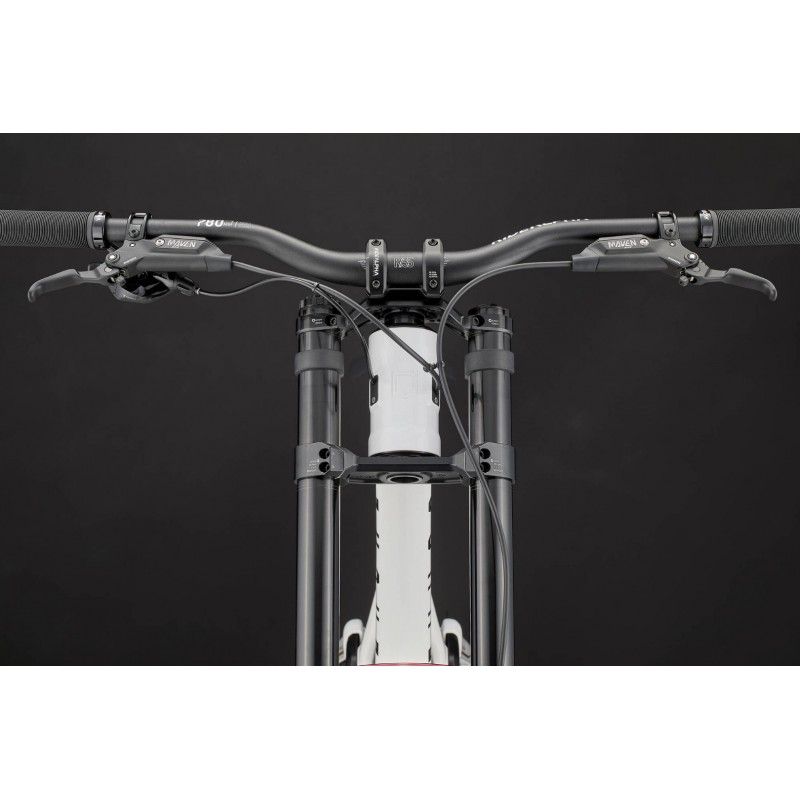

HANDLEBAR

RIDE ALPHA R27 on S - RIDE ALPHA R35 on M / L / XL

31.8 mm, 760 mm width, 27 mm rise, Alloy 7050 on S - 31.8 mm, 780 mm width, 35 mm rise, Alloy 7050 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 7050 on XL

GRIPS

RIDE ALPHA MUSHROOM

Black clamps

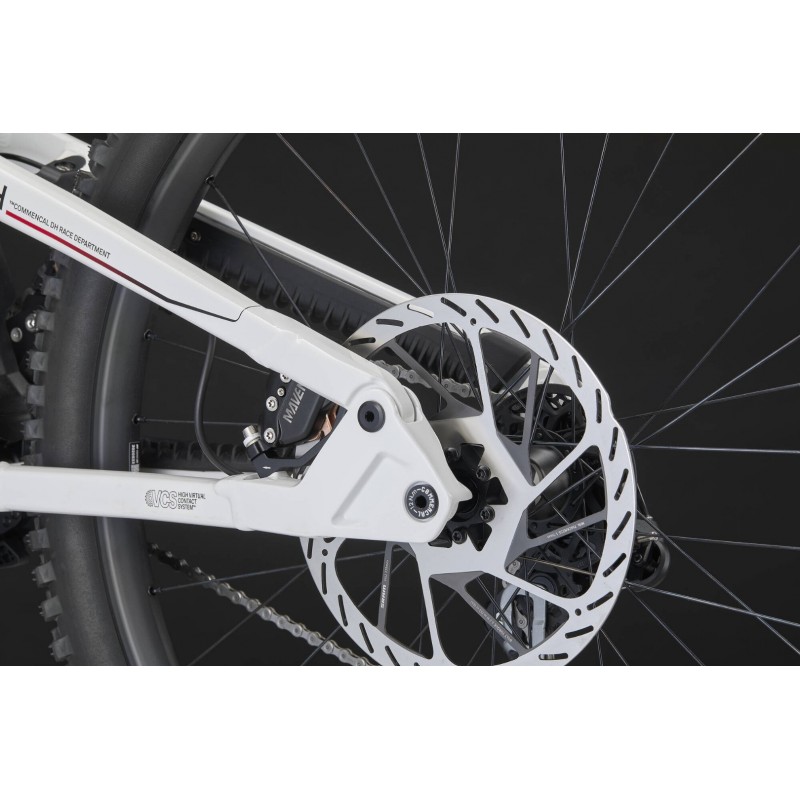

BRAKES

SRAM Maven Bronze, 4 pistons, sintered pads

Rotors : SRAM HS2 220 mm, 6-bolts

SHIFTERS

SRAM GX DH

7s

CHAIN GUIDE

E13 LG1+

32-34t

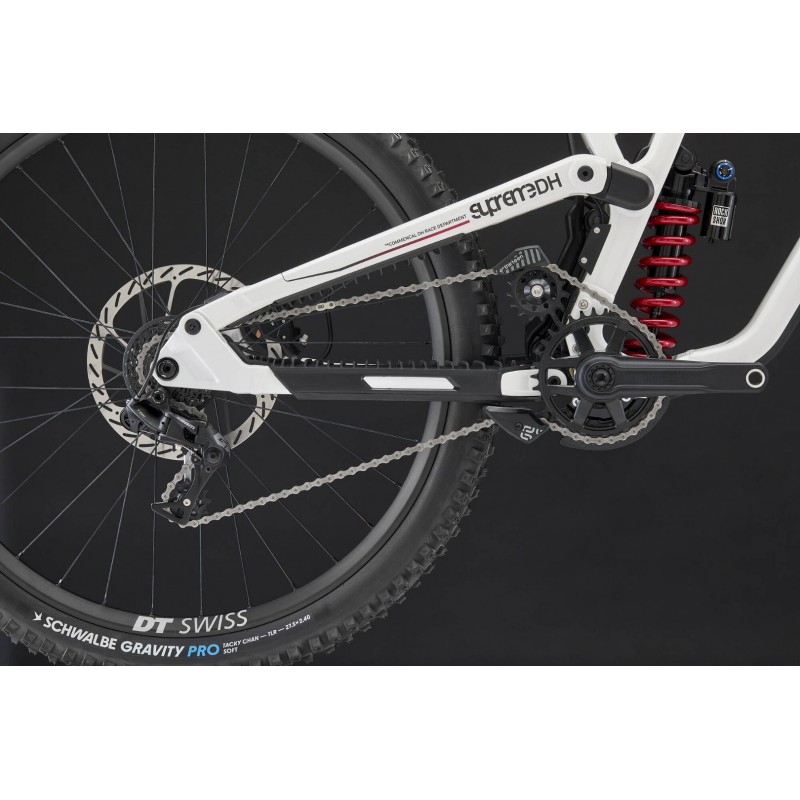

REAR DERAILLEUR

SRAM GX DH

7s

BOTTOM BRACKET

SHIMANO MT800P

BB107, pressfit

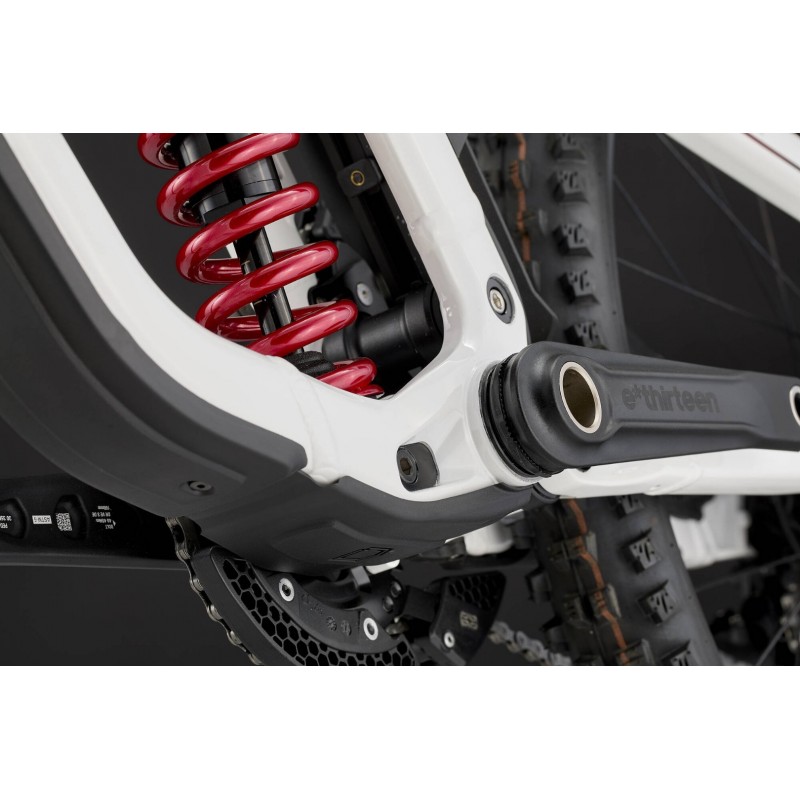

CRANKSET

E13 Helix core GR, 160 mm crank arms, DUB

Chainring : E13 Helix core GR, 34t

CHAIN

SRAM PC1110

11s, black

CASSETTE

SRAM PG-720 DH

7s, 11-25t

RIMS

DT SWISS F1900 Classic

Rear : 27.5'', 32h, 30 mm inner width - Front : 29'', 32h, 30 mm inner width

HUBS

DT SWISS 370 Classic LN

Rear : 32h, sealed bearings, 12 x 157 mm, Hyperglide - Front : 32h, sealed bearings, 20 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black

TYRES

Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary

Rear : 27.5''x2.5'', Gravity Pro, Soft, Tubeless Ready - Front : 29''x2.5'', Gravity Pro, Ultra Soft, Tubeless Ready

SEAT POST

RIDE ALPHA

31.6 mm, 250 mm length

SADDLE

FIZIK Gravita Alpaca X5

130 mm width, S-Alloy rails, Team edition

WEIGHT

19,4 kg / 42.76 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No

COLOUR

Pure White

Shiny Finish
