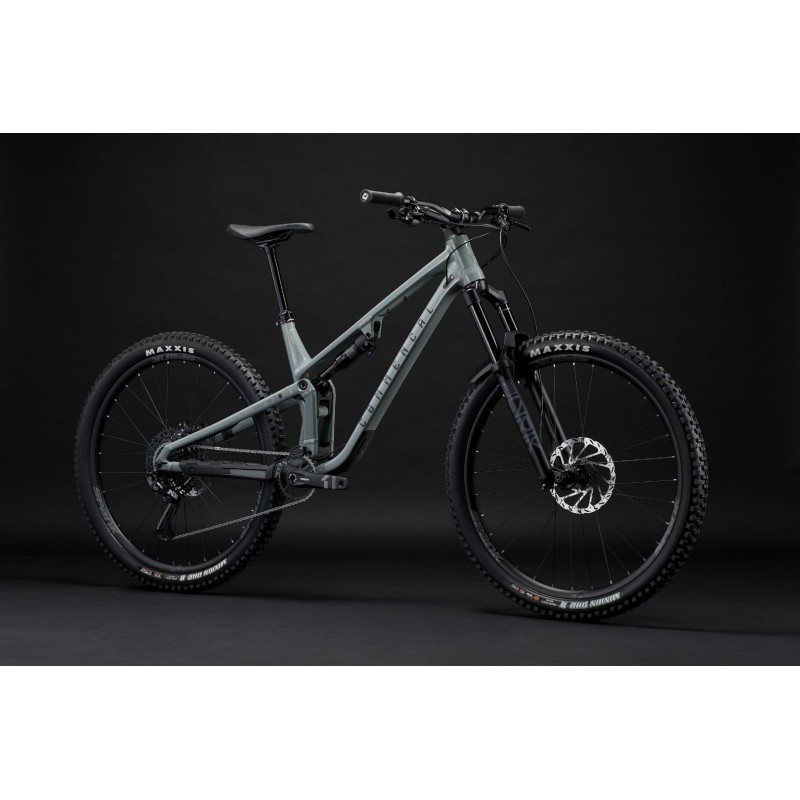

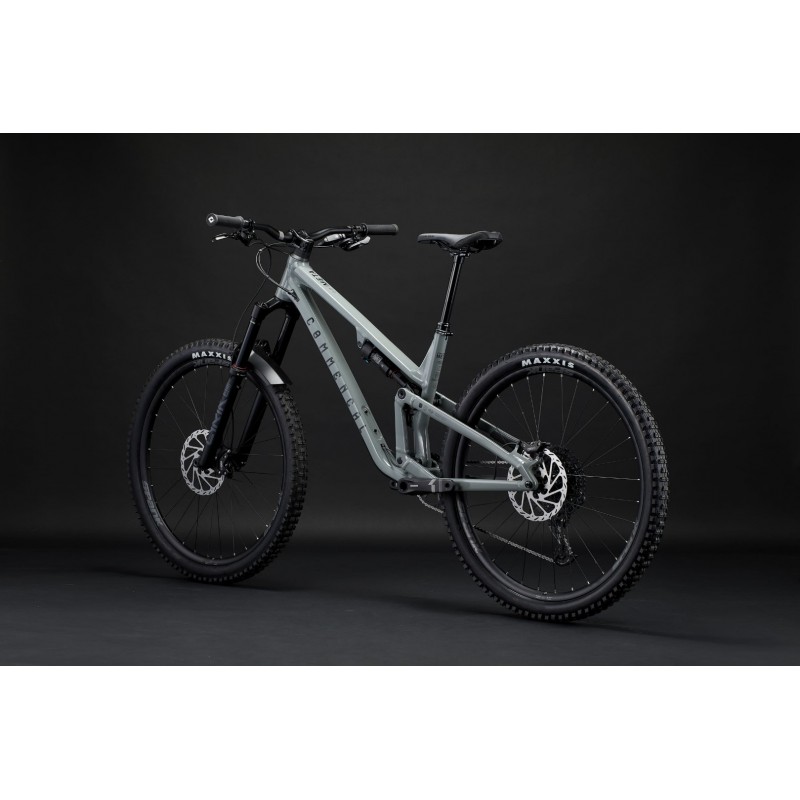

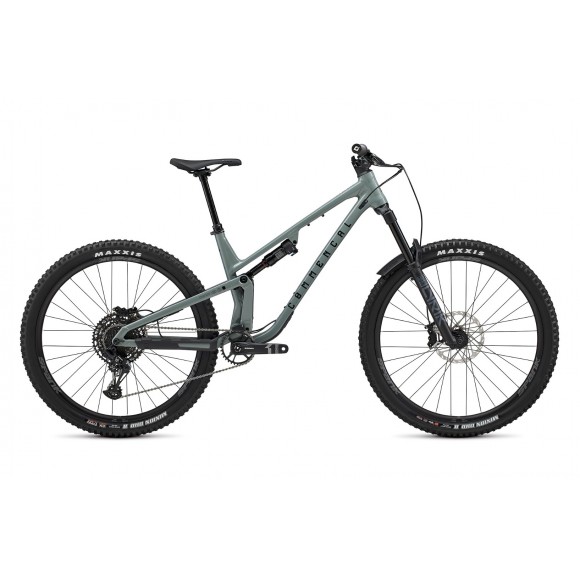

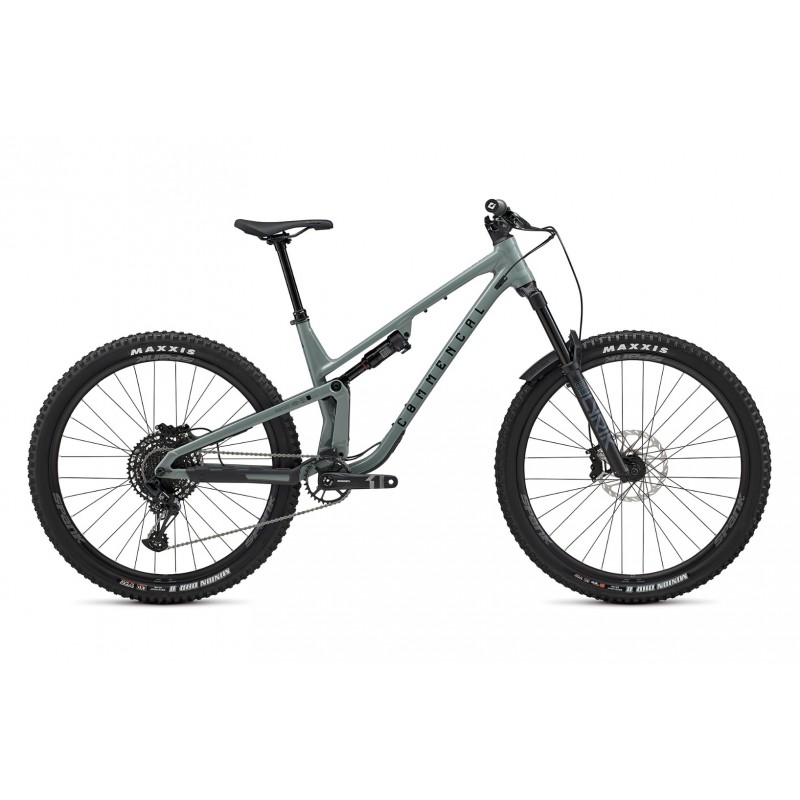

FRAME

META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6

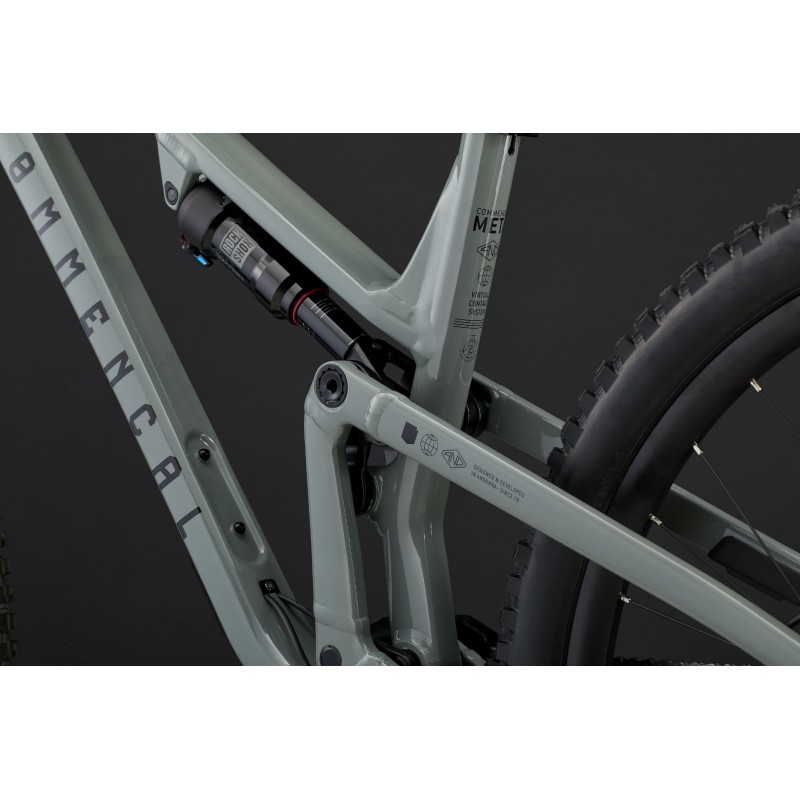

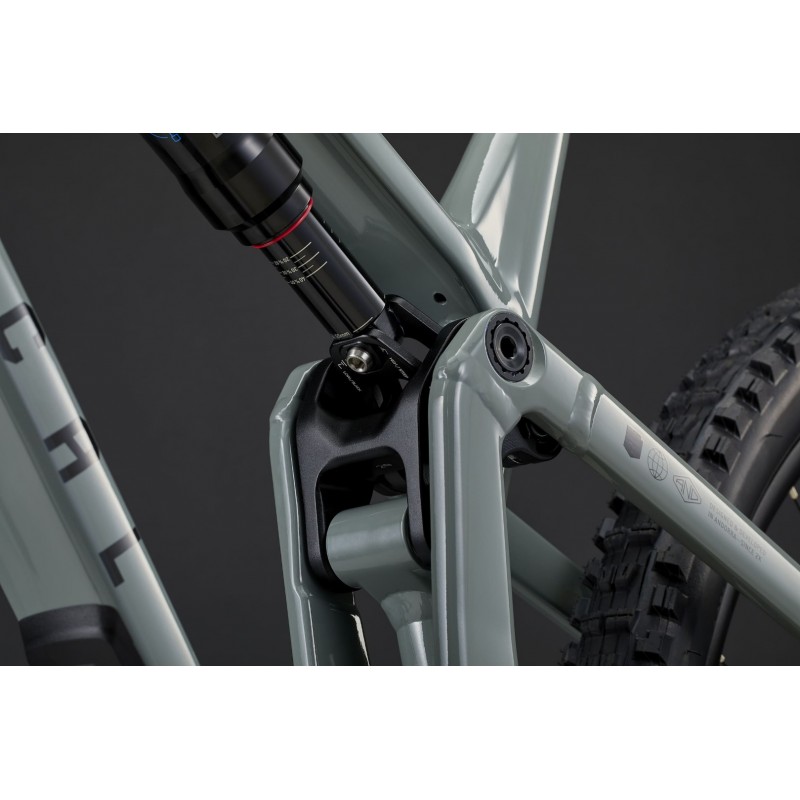

SHOCK

ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression, 0 Token neg. 3 Tokens pos.

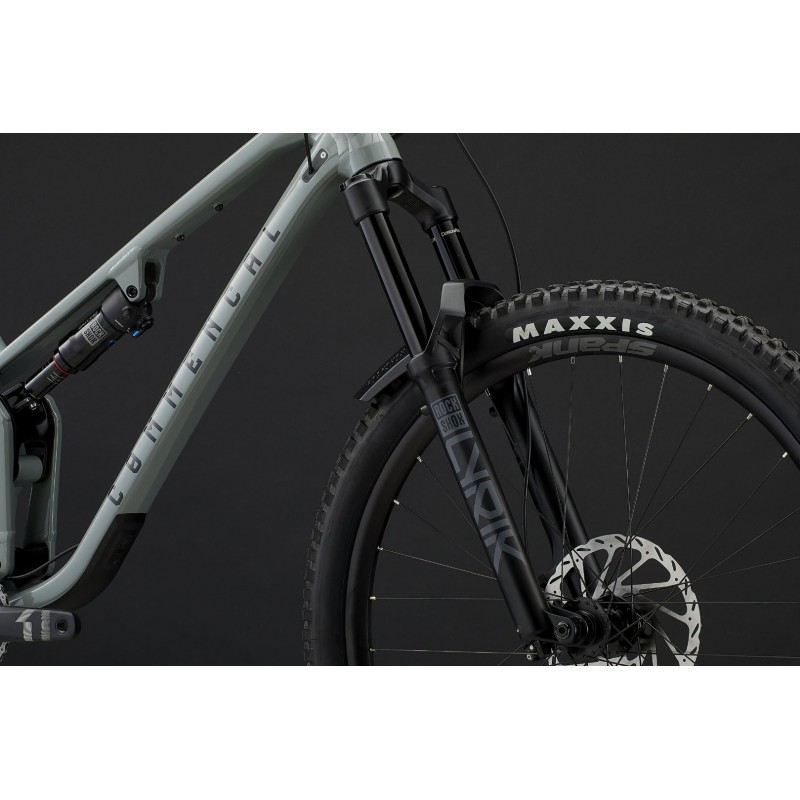

FORK

ROCKSHOX Lyrik Base, 160 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token

HEADSET

ACROS ZS56 / ZS56
Alloy cups, sealed bearings

STEM

RIDE ALPHA 40
40 mm extension, 31,8 mm

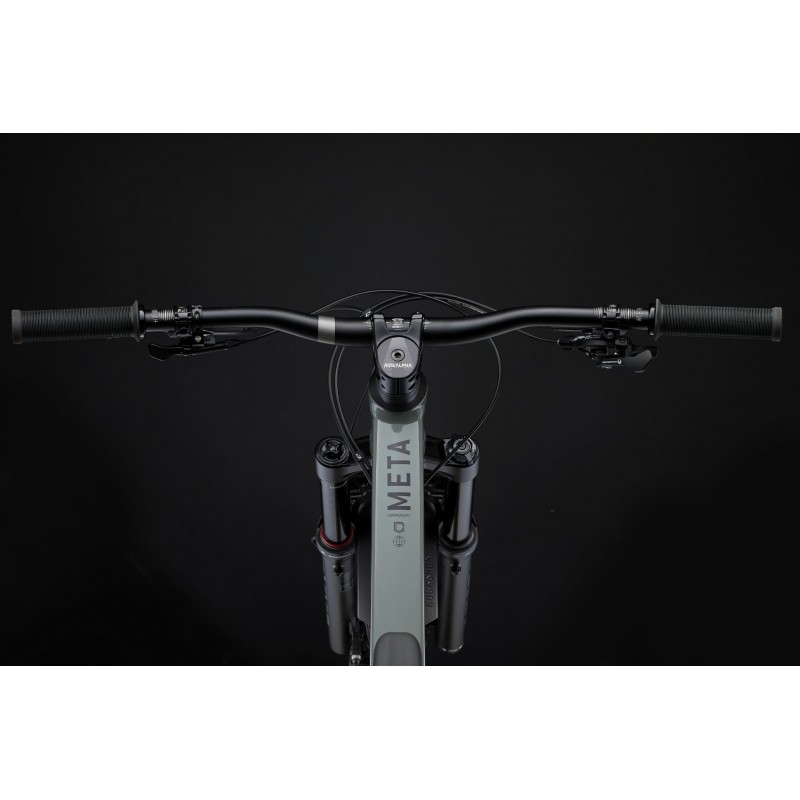

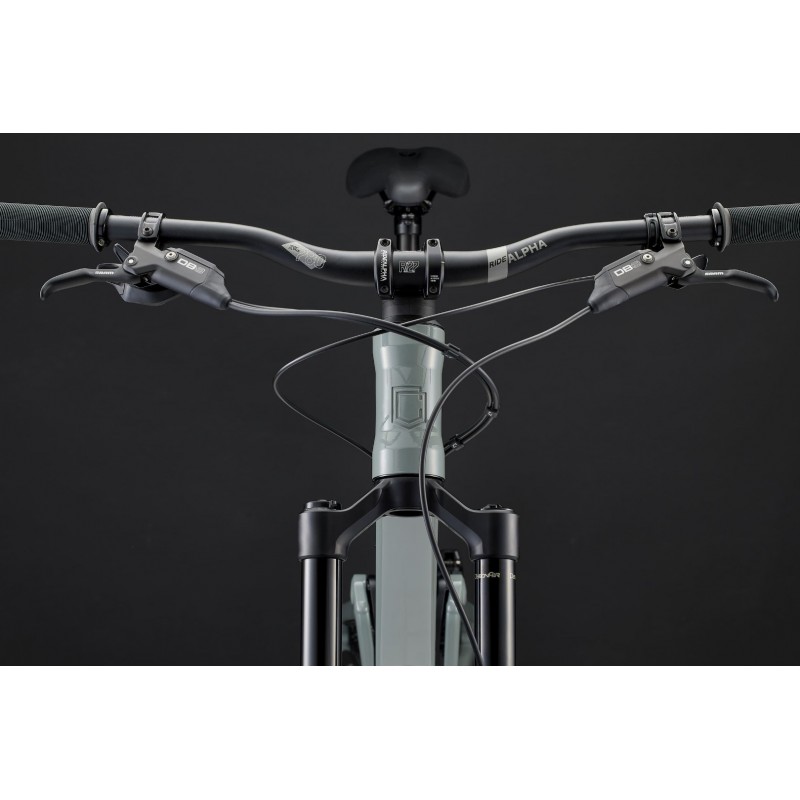

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI Longneck
Soft compound, single clamp, black

BRAKES

SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6 holes

SHIFTERS

SRAM NX Eagle
12s

CHAIN GUIDE

RIDE ALPHA
32t-34t

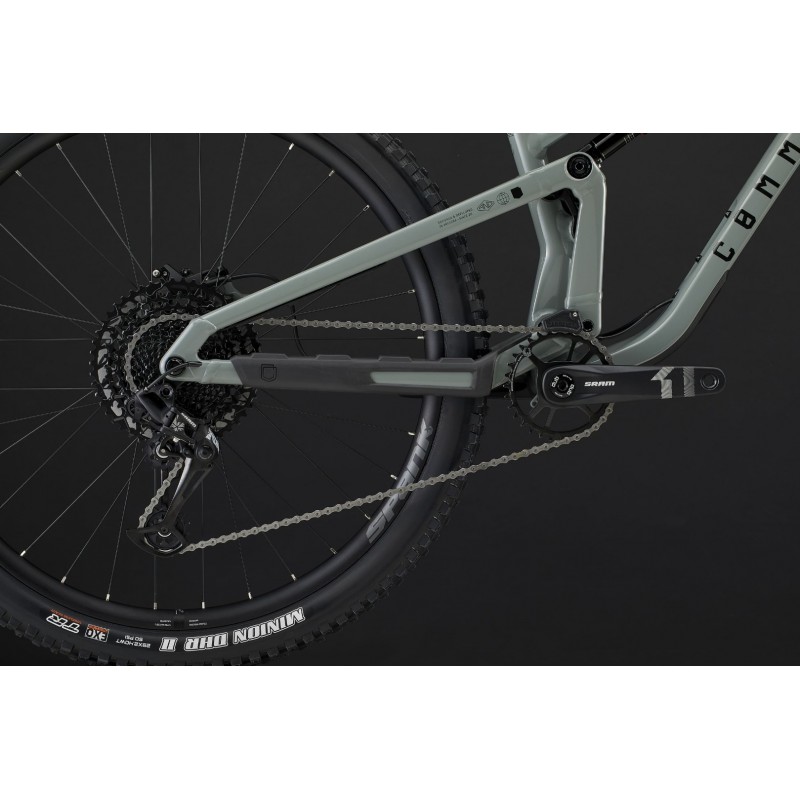

REAR DERAILLEUR

SRAM NX Eagle
12s

BOTTOM BRACKET

SRAM DUB WIDE
Pressfit

CRANKSET

SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-Wide

CHAIN

SRAM NX Eagle
12s

CASSETTE

SRAM PG-1210
12s, 11-50t

RIMS

SPANK SPIKE RACE 33
29'', 32h, 28 mm inner width

HUBS

Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings

SPOKES/NIPPLES

SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless Ready

SEAT POST

KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote

SADDLE

SDG Bel Air V3
140 mm width, steel rails

WEIGHT

15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
