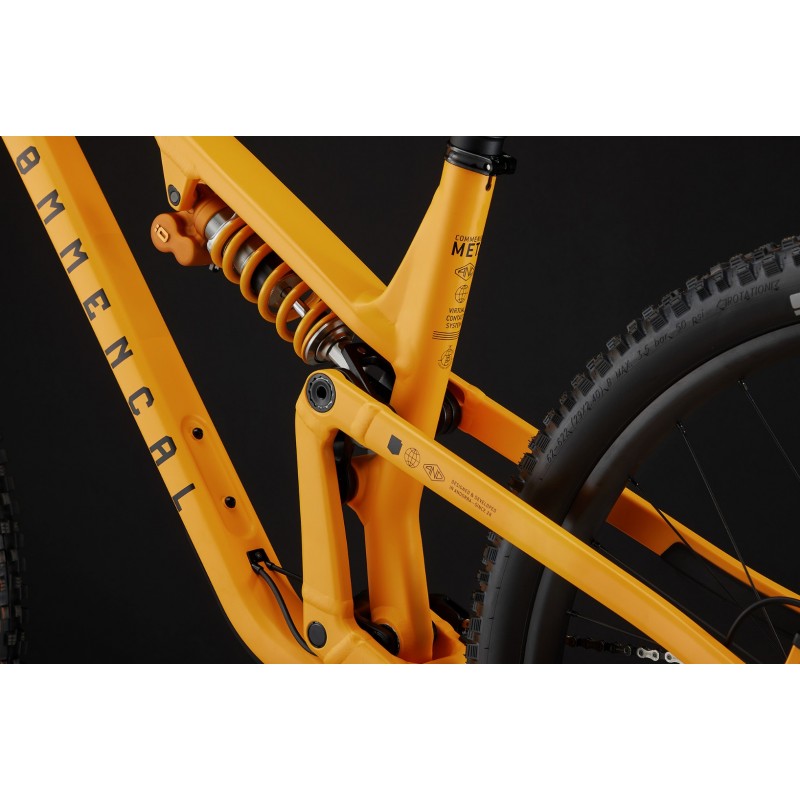

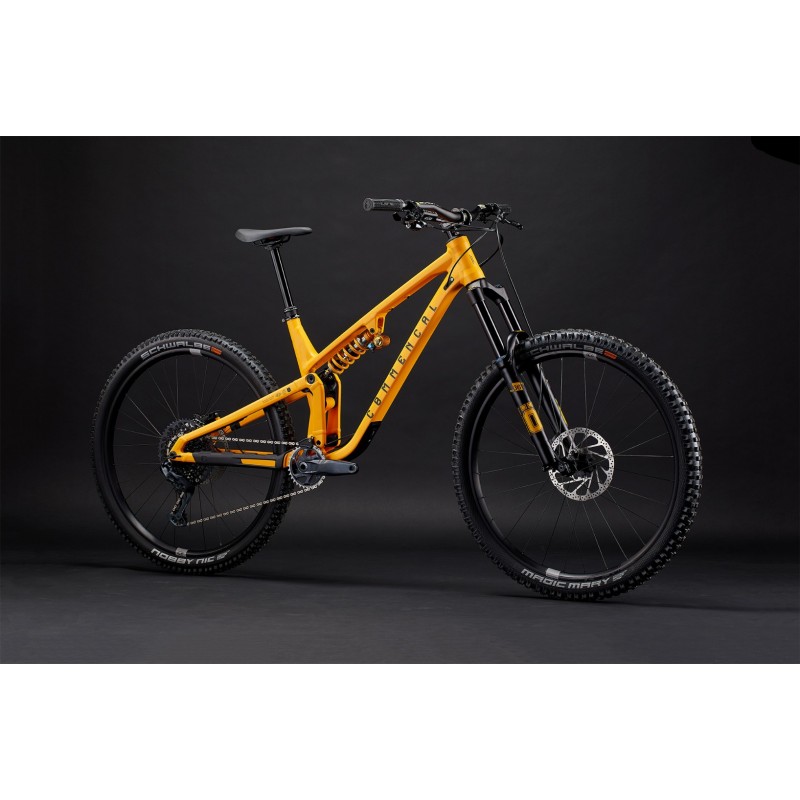

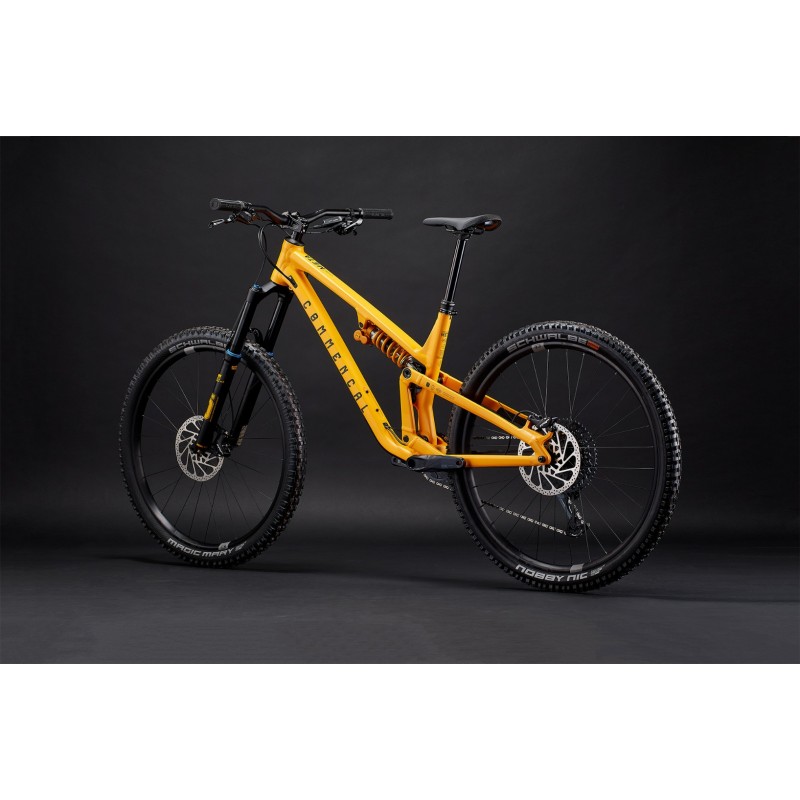

FRAME

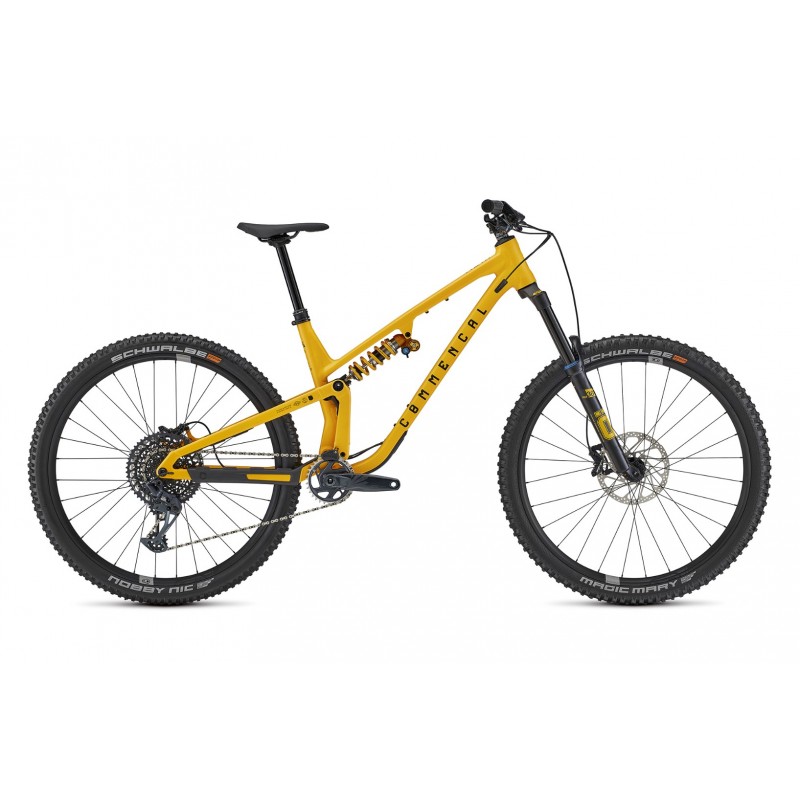

META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6

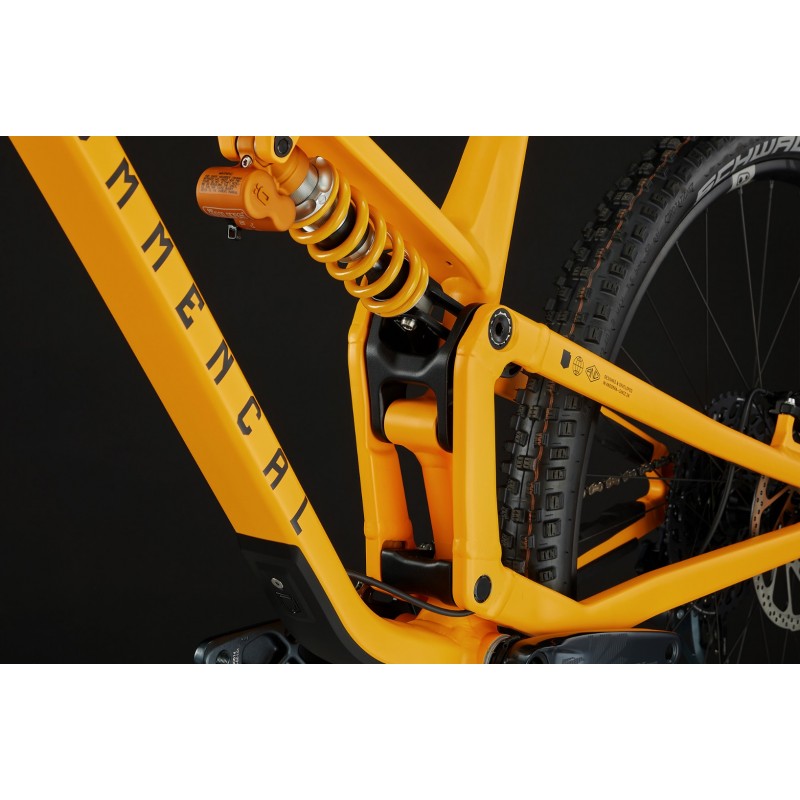

SHOCK

OHLINS TTX22 M.2 Coil
210 x 55 mm, HSC, LSC, rebound, climb mode. Spring rates: 388 on S, 434 on M, 480 on L, 525 on XL

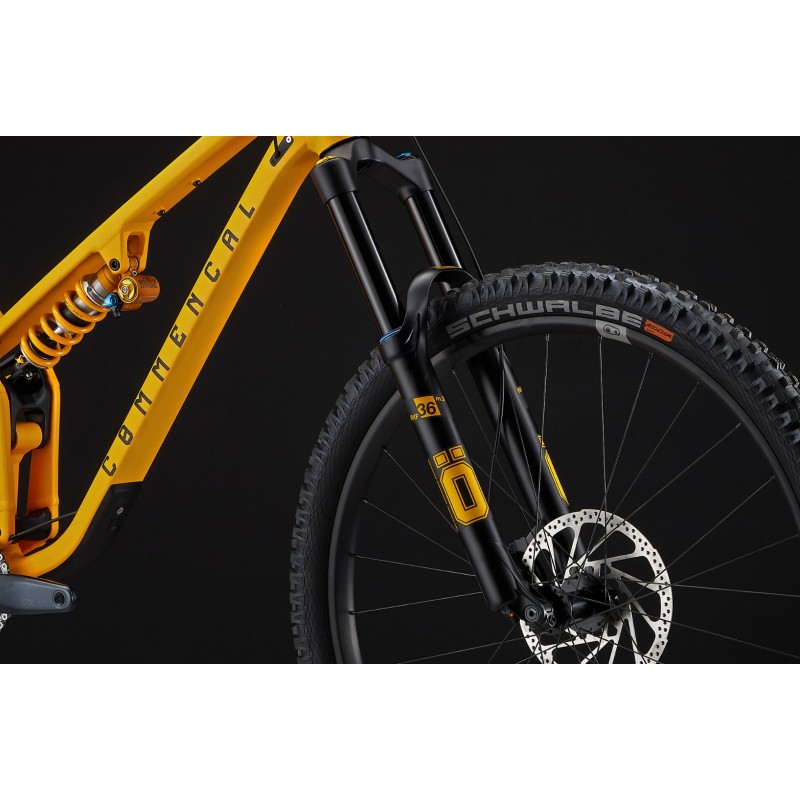

FORK

OHLINS RXF36 m.2 Air, 160 mm travel
29", TTX 18 damper, LSC, HSC, LSR, climb mode, Boost (15 x 110 mm), 44 mm offset

HEADSET

ACROS ZS56 / ZS56
Alloy cups, sealed bearings

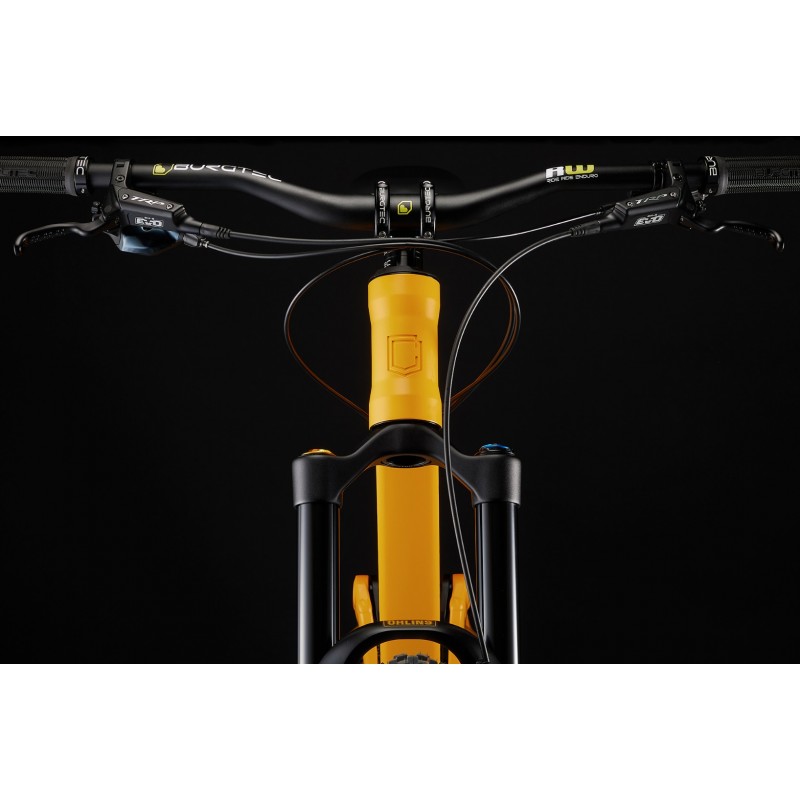

STEM

BURGTEC ENDURO MK3
42,5 mm extension, 31.8 mm

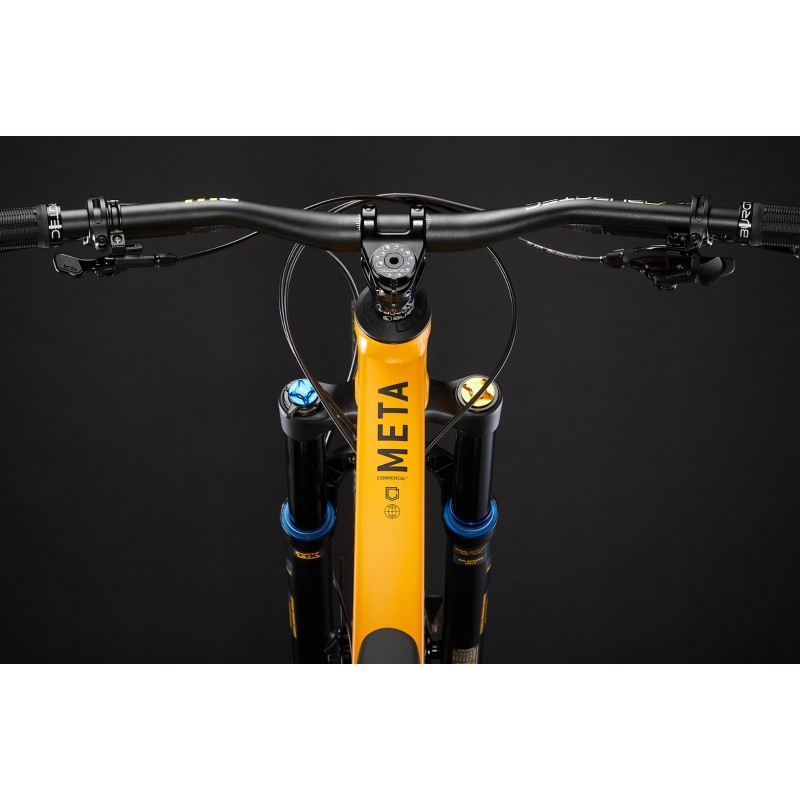

HANDLEBAR

BURGTEC RIDE WIDEALLOY ENDURO 760 on S - BURGTEC RIDE WIDEALLOY ENDURO 780 on M / L - BURGTEC RIDE WIDEALLOY ENDURO 800 on XL
31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 30 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on XL

GRIPS

ODI Longneck
Soft compound, single clamp, black

BRAKES

TRP DH-R EVO, 4 pistons, resin pads,  Postmount
Rotors: TRP R1 203 mm, 6 holes, 2.3mm thickness

SHIFTERS

SRAM GX Eagle
12s

CHAIN GUIDE

RIDE ALPHA
32t-34t

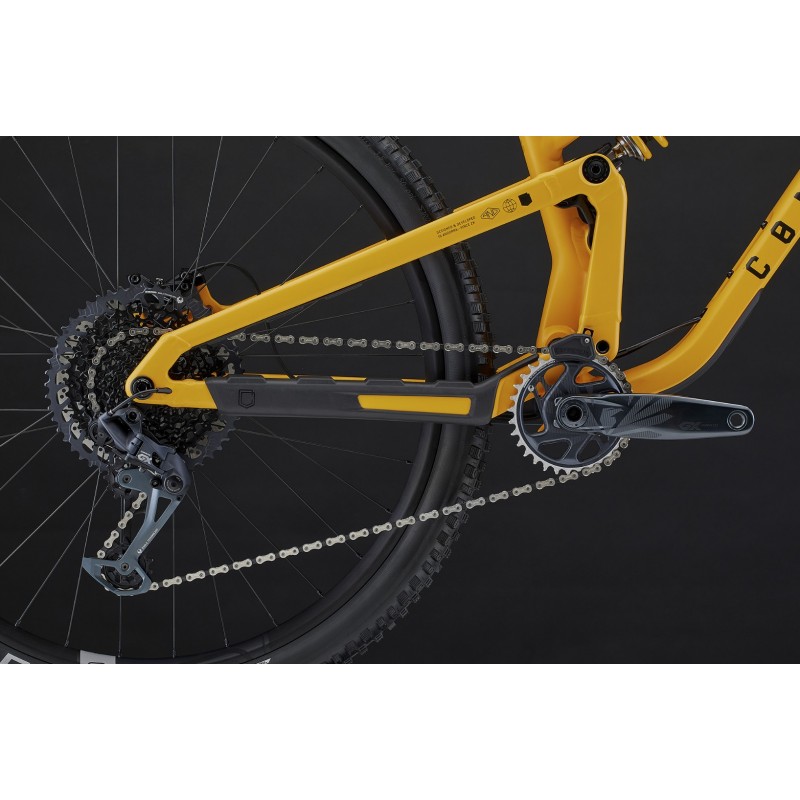

REAR DERAILLEUR

SRAM GX Eagle
12s

BOTTOM BRACKET

SRAM DUB WIDE
Pressfit

CRANKSET

SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-Wide

CHAIN

SRAM GX Eagle
12s

CASSETTE

SRAM XG-1275 Eagle
12s, 10-52t

RIMS

CRANK BROTHERS Synthesis Alloy Enduro 3
Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner width

HUBS

INDUSTRY NINE 1/1
Rear: 32h, sealed bearings, 12 x 148 mm, 4º, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, black

SPOKES/NIPPLES

Rear: SAPIM Race - Front: SAPIM D-Light
Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm,  double butted, stainless, with Nylok, black

TYRES

Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
Rear: 29"x2.4", Evo,  Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo,  Super Trail, Addix Soft, Tubeless Easy

SEAT POST

KS Lev Integra
34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remote

SADDLE

FIZIK Terra Alpaca X5
145 mm width, S-alloy rails

WEIGHT

15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
