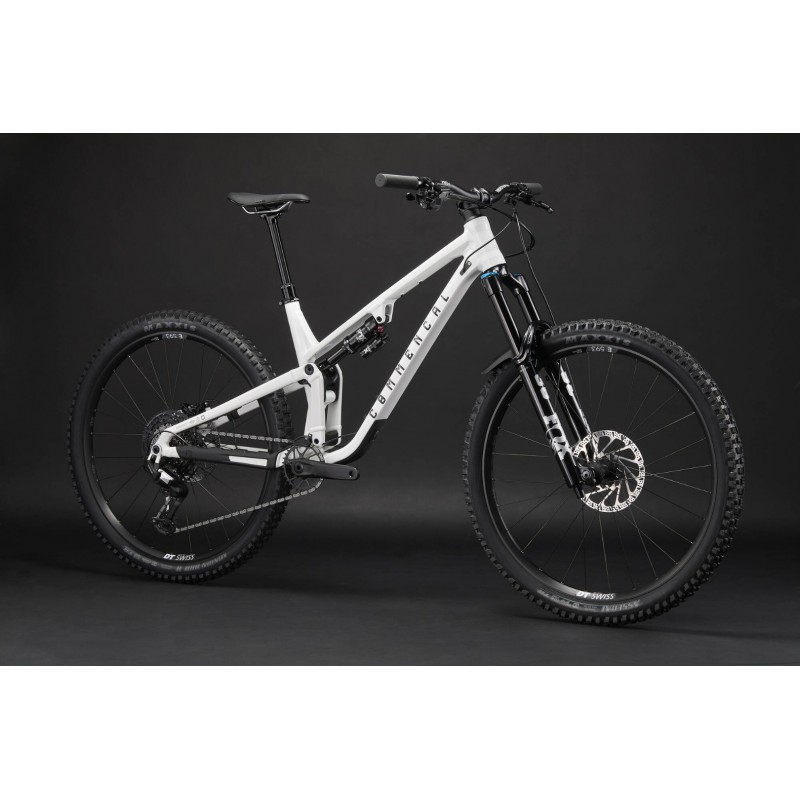

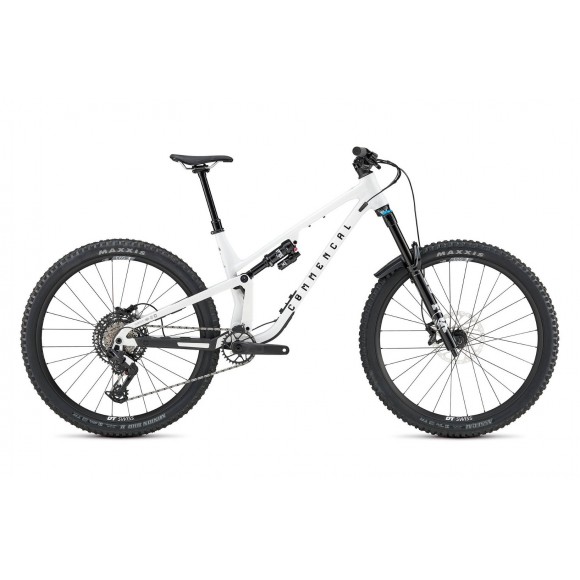

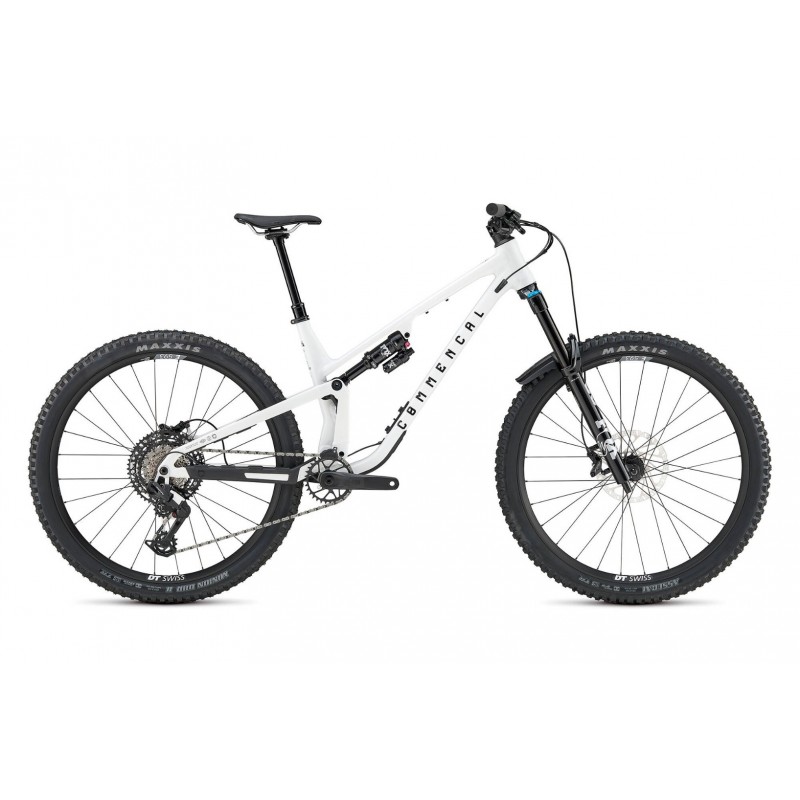

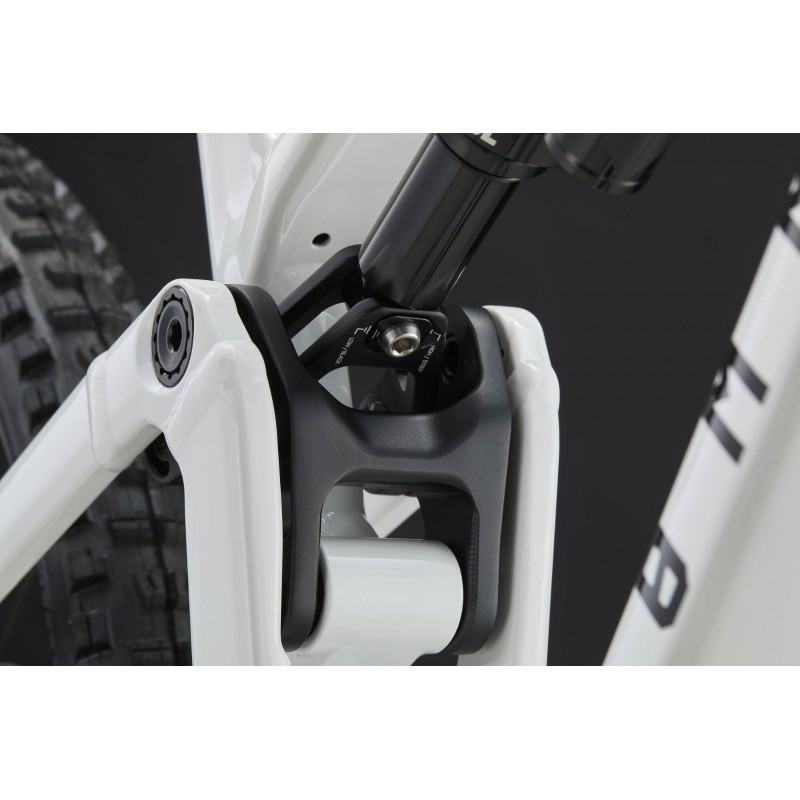

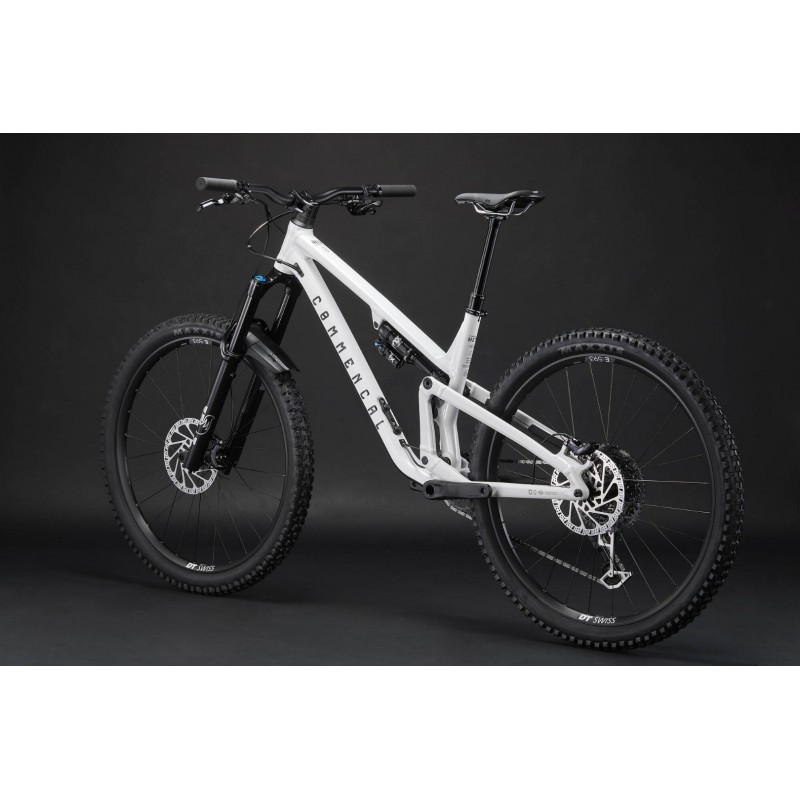

FRAME

META V5, 150 mm travel

29'', Alloy 6066, triple butted tubes, T4, T6.

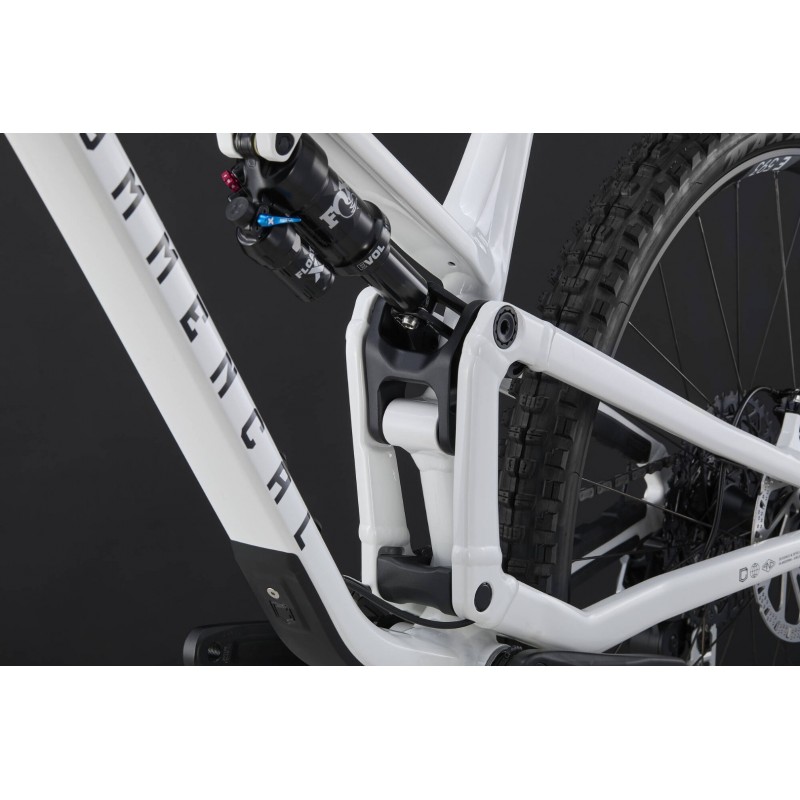

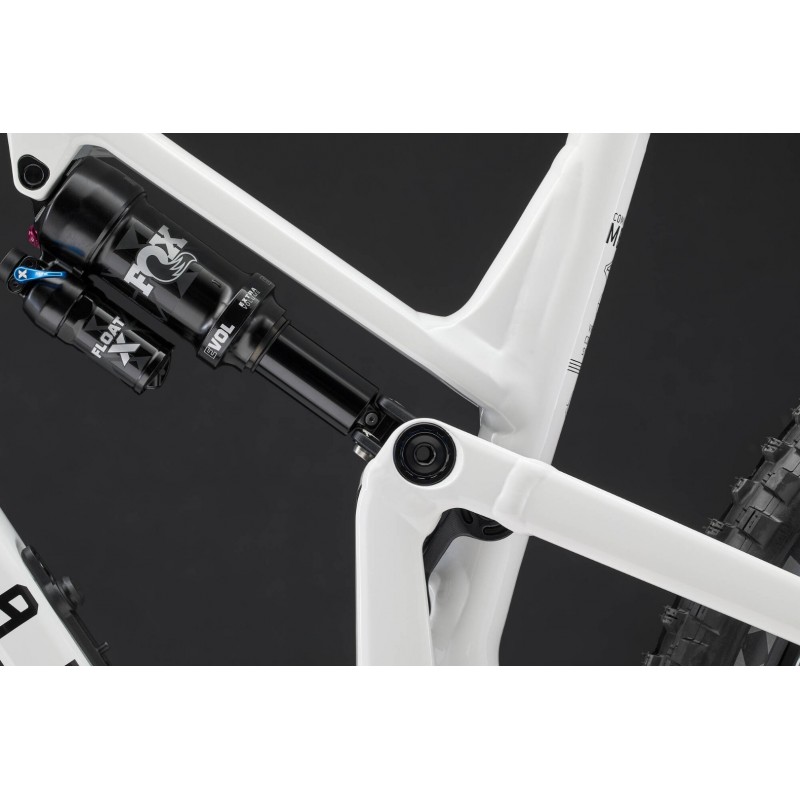

SHOCK

FOX Float X Performance 2027

210 x 55 mm, 2-pos lever, rebound, LSC, 0,6ci spacers

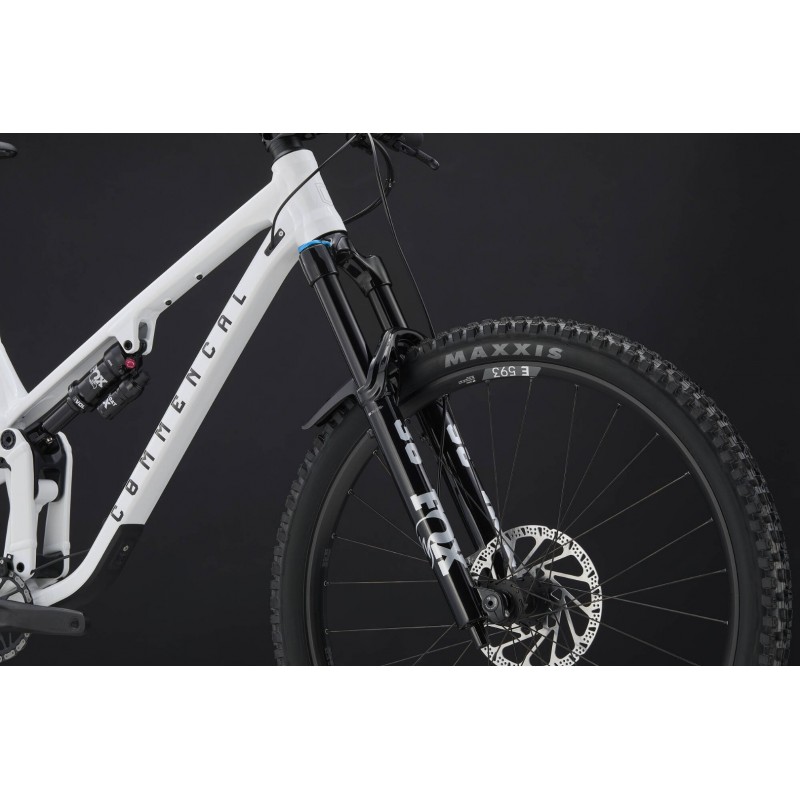

FORK

FOX 38 Performance, 170 mm travel

29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 token

HEADSET

ACROS ZS56/ZS56

Alloy cups, sealed bearings

STEM

RIDE ALPHA 40

40 mm extension, 31.8 mm

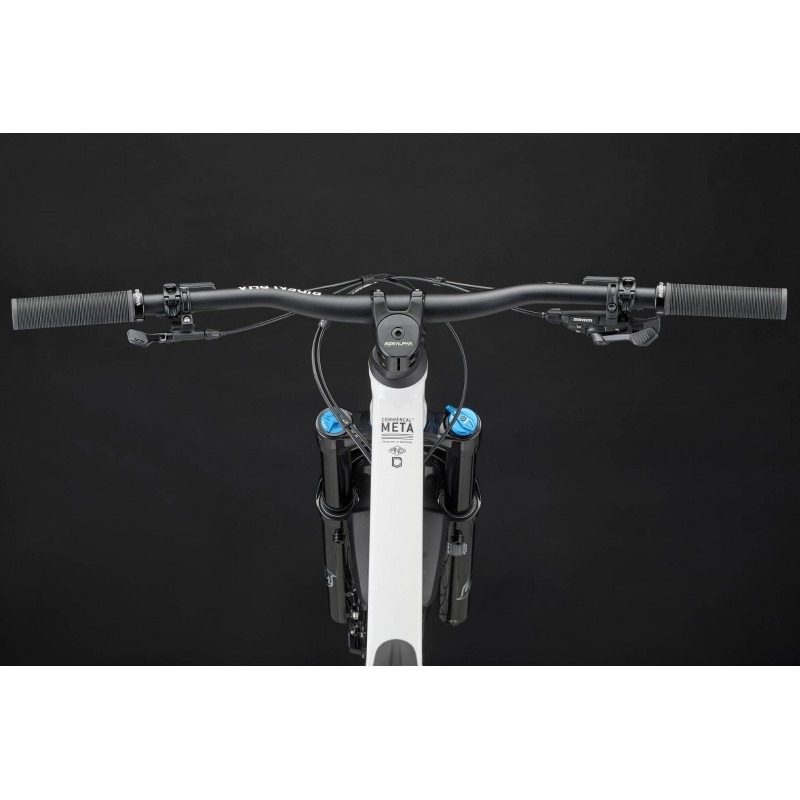

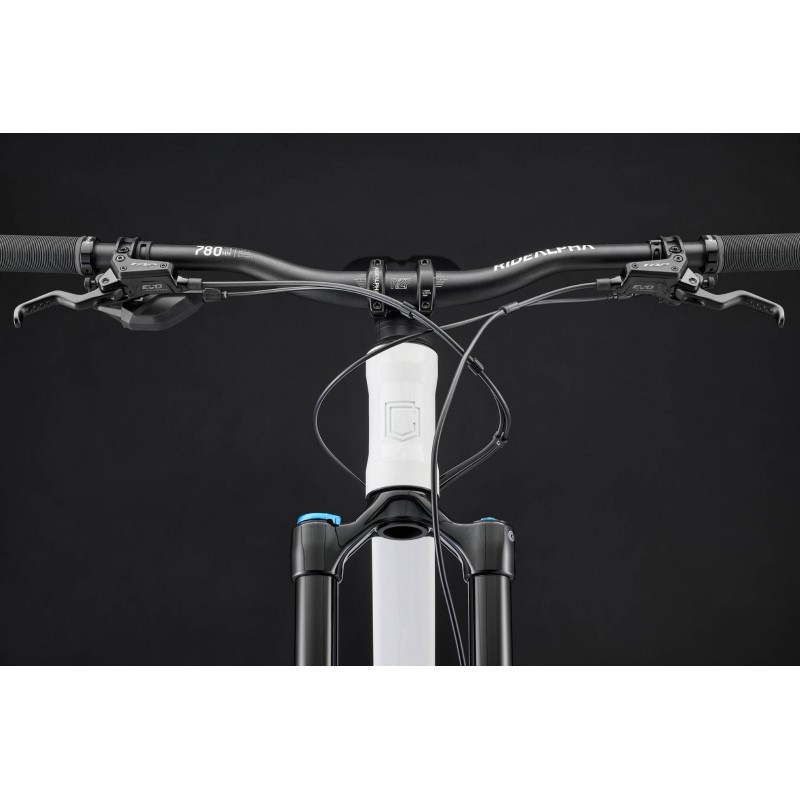

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL

GRIPS

RIDE ALPHA Mushroom

Black clamp

BRAKES

TRP EVO Expert, 4 pistons

Rotors : TRP RS06E 203 mm, 6-bolts

SHIFTERS

SRAM Eagle 90

12s

CHAIN GUIDE

RIDE ALPHA

32t-34t

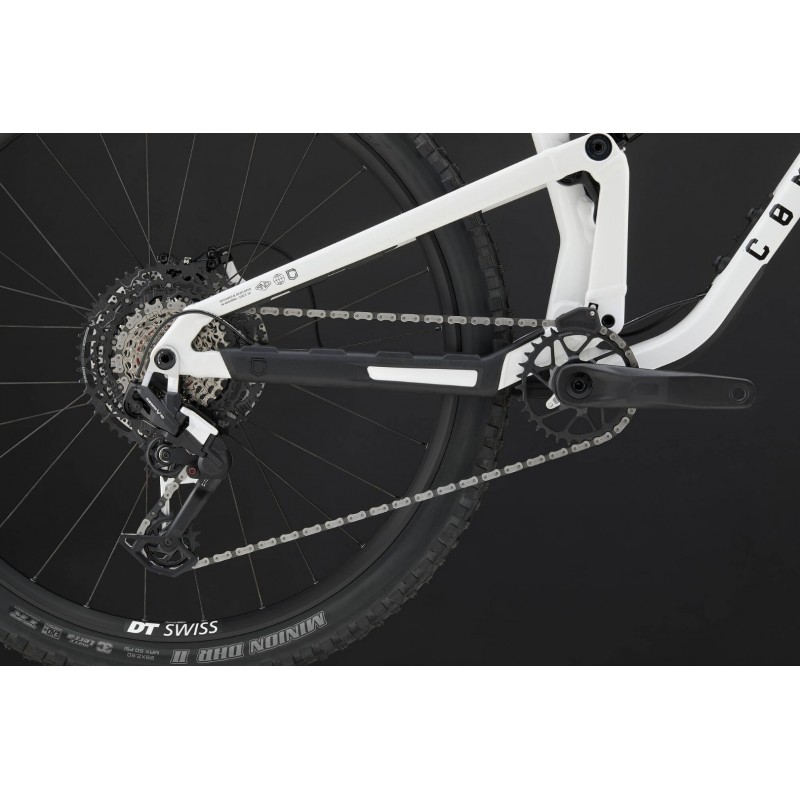

REAR DERAILLEUR

SRAM Eagle 90

12s

BOTTOM BRACKET

SRAM DUB92

MTB WIDE, Pressfit

CRANKSET

SRAM Eagle 70, 170 mm crank arms

Chainring : SRAM Eagle 70, 32t

CHAIN

SRAM Eagle 70

12s

CASSETTE

SRAM XS 1270

12s, 10-52t

RIMS

DT SWISS E593

29'', 32h, 28 mm inner width

HUBS

DT SWISS 370

Rear : 32h, sealed bearings, 12 x 148 mm, Hyperglide - Front : 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear : MAXXIS DHR II - Front : MAXXIS Assegai

Rear : 29''x2.5'' WT, 3C MaxxTerra, New EXO+, Tubeless Ready - Front : 29"x2.5" WT, 3C MaxxGrip, New EXO+, Tubeless Ready

SEAT POST

KS Ragei

34.9 mm, travel: 150 mm on S, 170 mm on M and 190 mm on L/XL, I-SPEC EV, SouthPaw alloy remote

SADDLE

WTB Solano SL Crmo

Crmo rails, 142 x 240 mm

WEIGHT

17 kg / 37,47 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No

COLOUR

Pure White

Shiny finish
