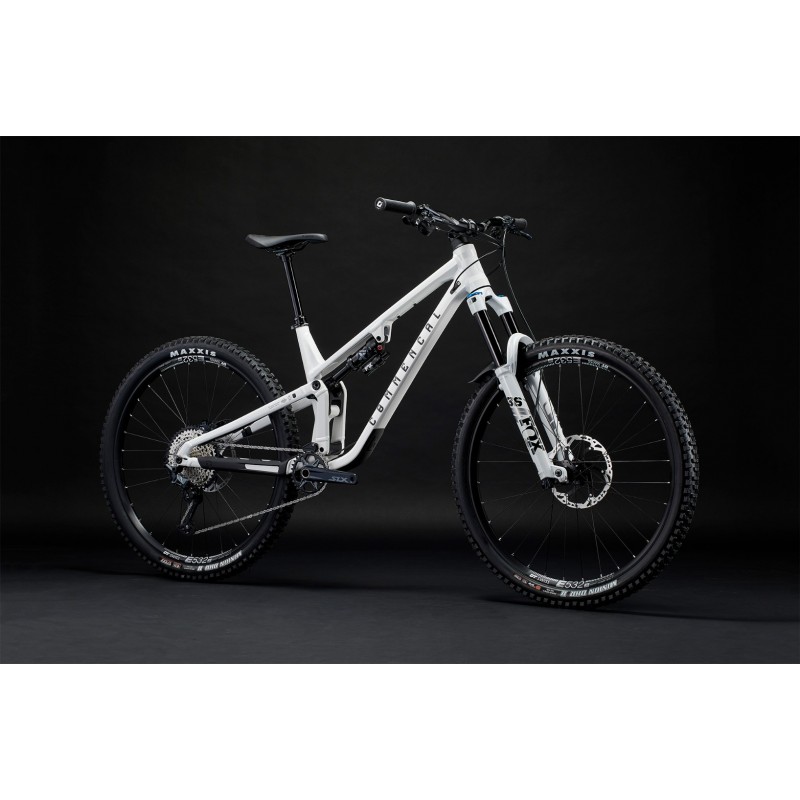

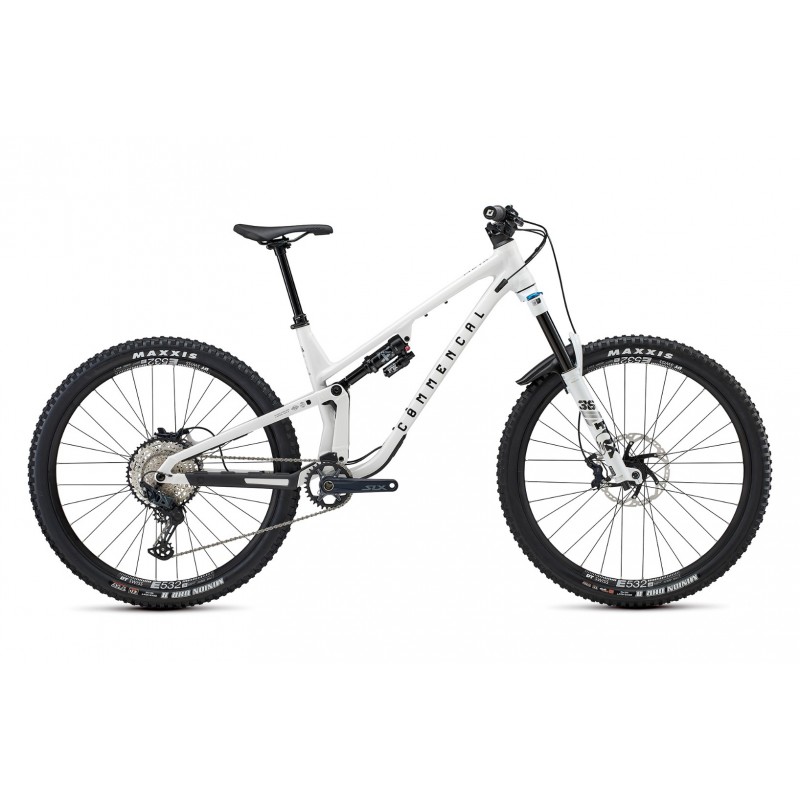

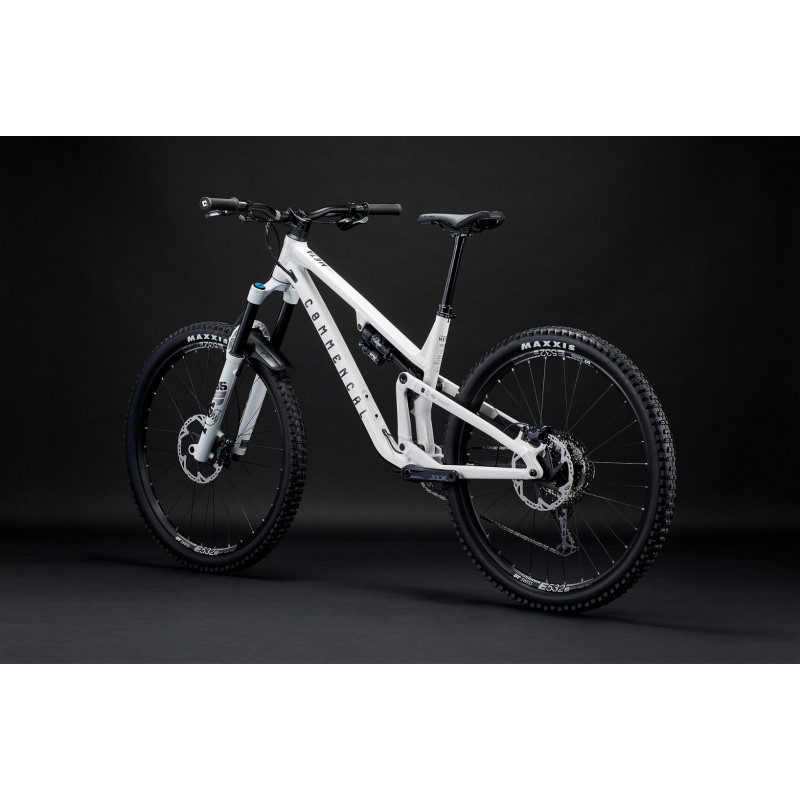

FRAME

META V5, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6

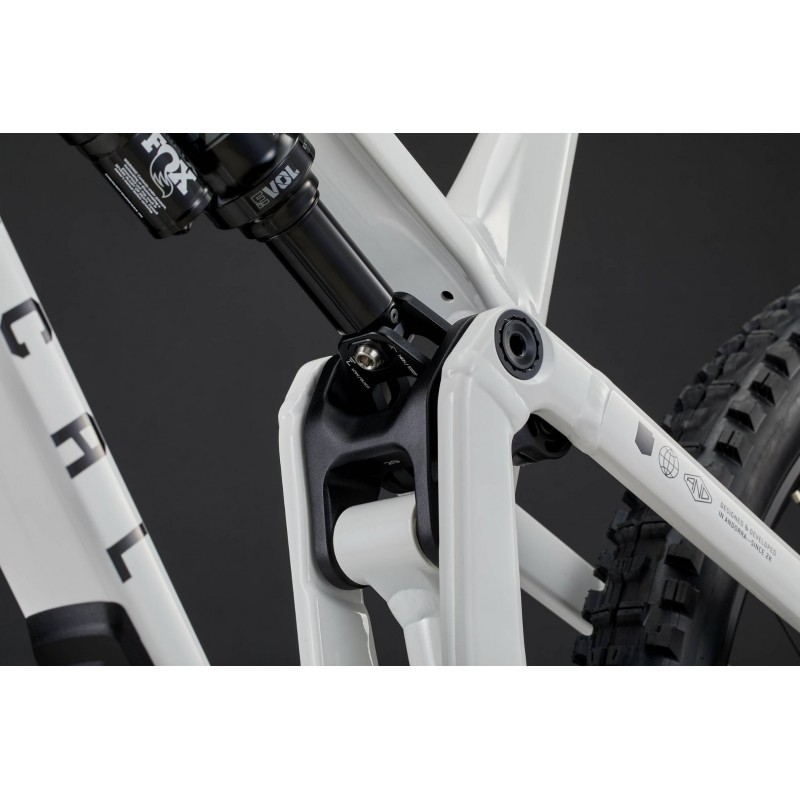

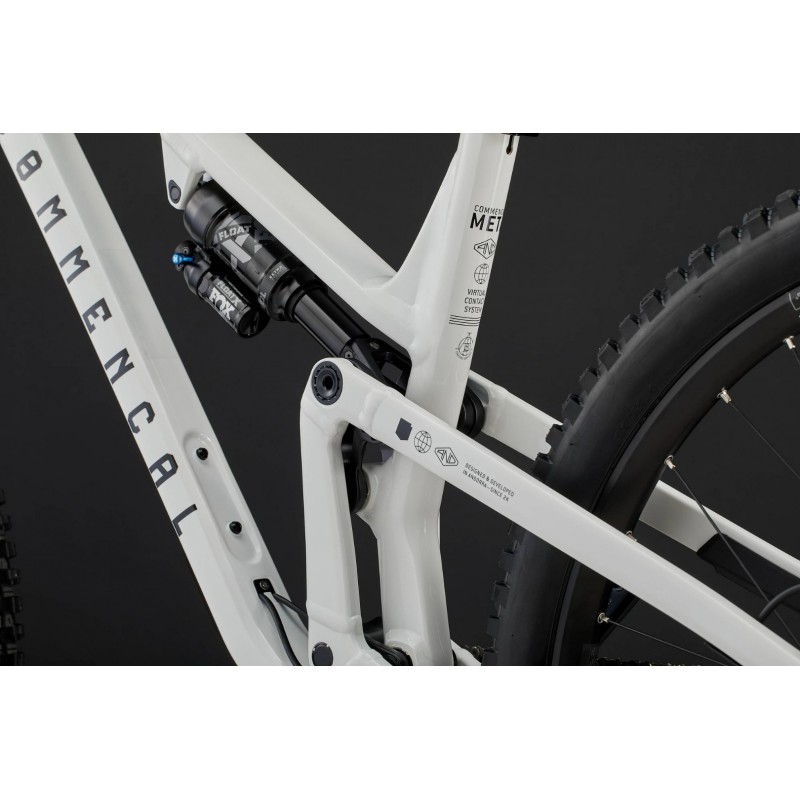

SHOCK

FOX Float X Performance
210 x 55 mm, 2-pos lever, rebound, LSC, 0.6 spacer

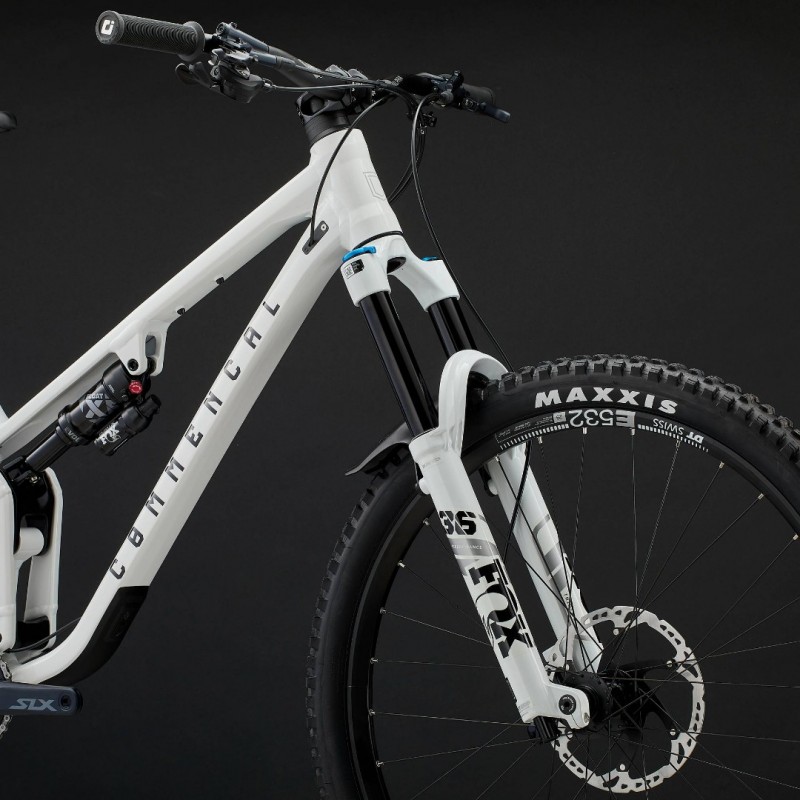

FORK

FOX 36 Performance, 160 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 spacer

HEADSET

ACROS ZS56 / ZS56
Alloy cups, sealed bearings

STEM

RIDE ALPHA 40
40 mm extension, 31,8 mm

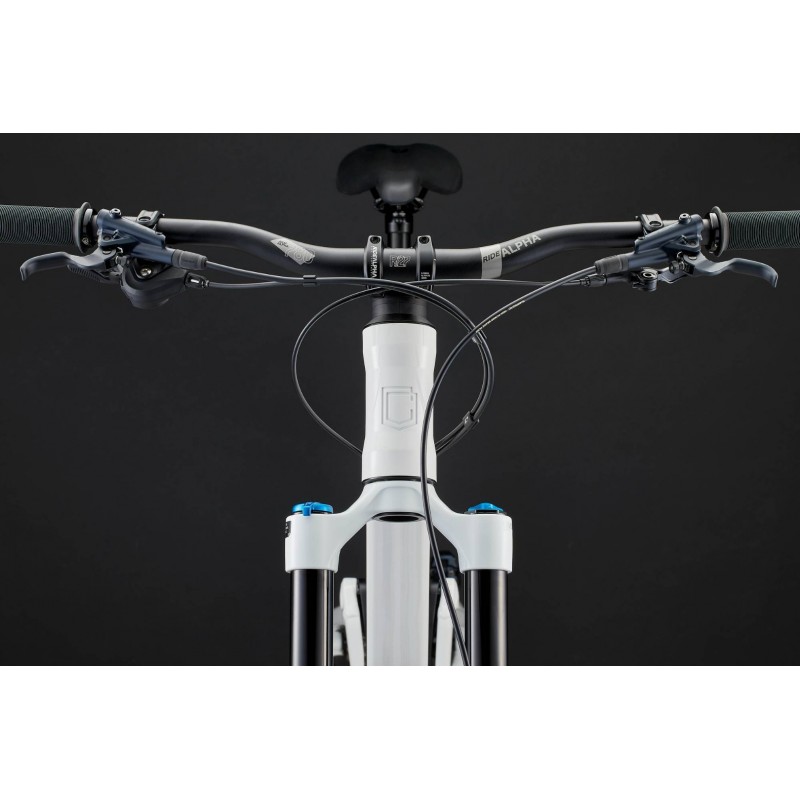

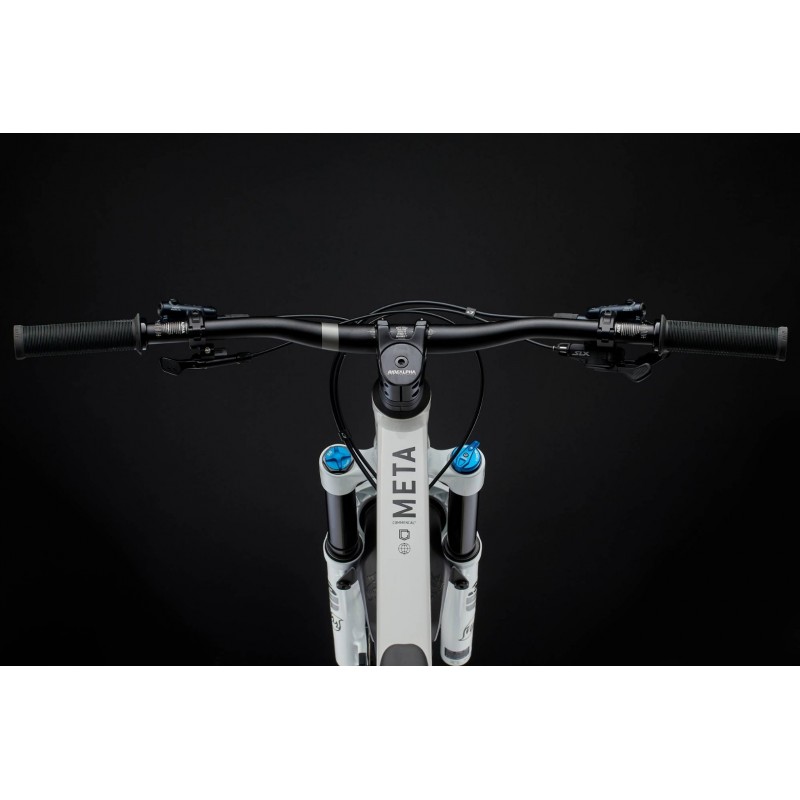

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI Longneck
Soft compound, single clamp, black

BRAKES

SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holes

SHIFTERS

SHIMANO SLX
12s

REAR DERAILLEUR

SHIMANO SLX
12s

BOTTOM BRACKET

SHIMANO BB71
Pressfit

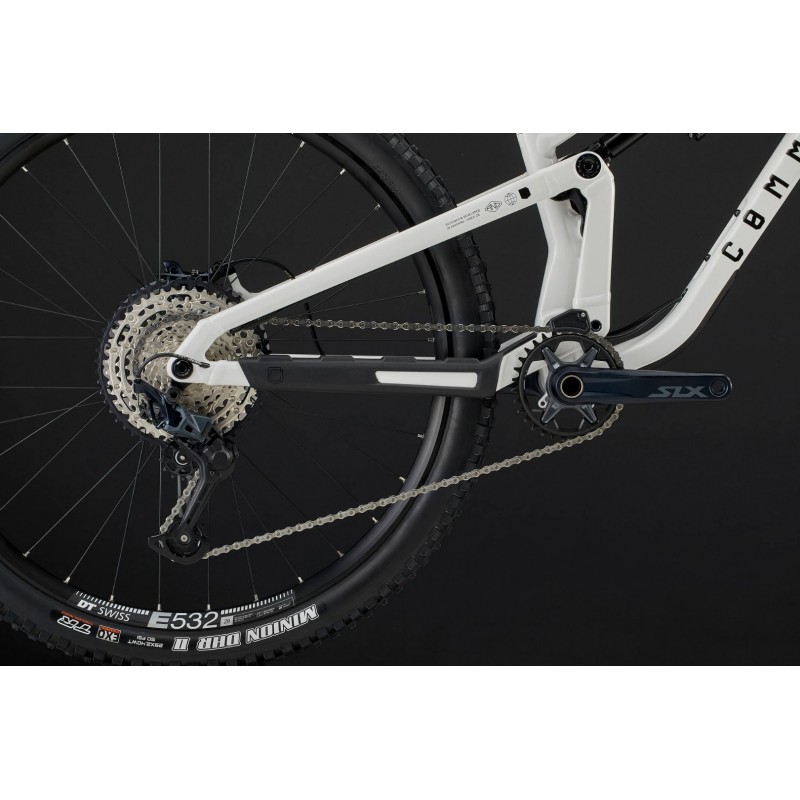

CRANKSET

SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology

CHAIN

SHIMANO SLX
12s

CASSETTE

SHIMANO SLX
12s, 10-51t

RIMS

DT SWISS E 532
29'', 32h, 30 mm inner width

HUBS

Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearings

SPOKES/NIPPLES

SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual compound, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless Ready

SEAT POST

KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote

SADDLE

SDG Bel Air V3
140 mm width, steel rails

WEIGHT

15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
