FRAME

META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6

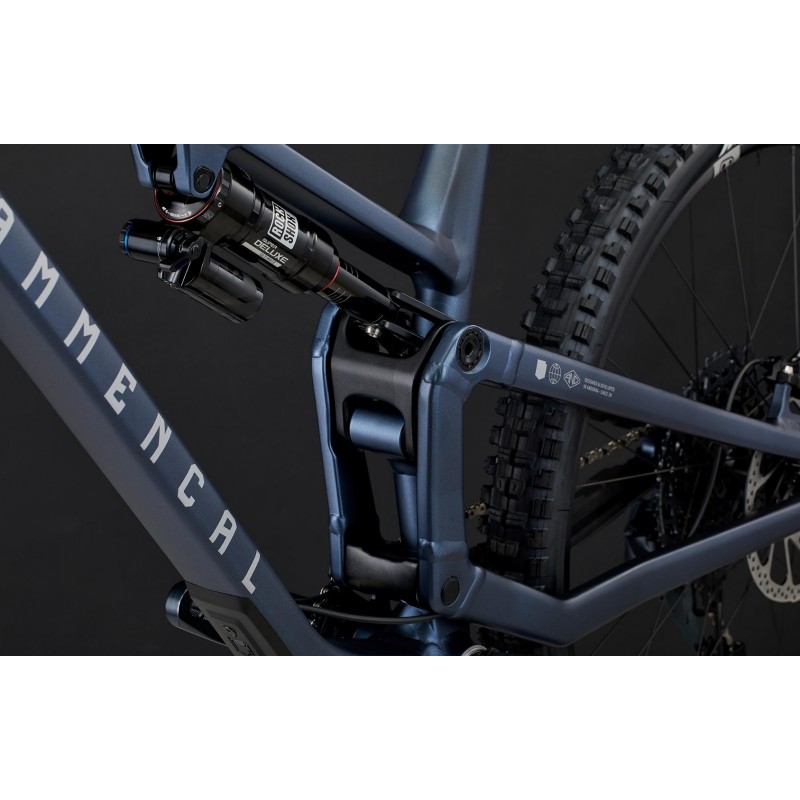

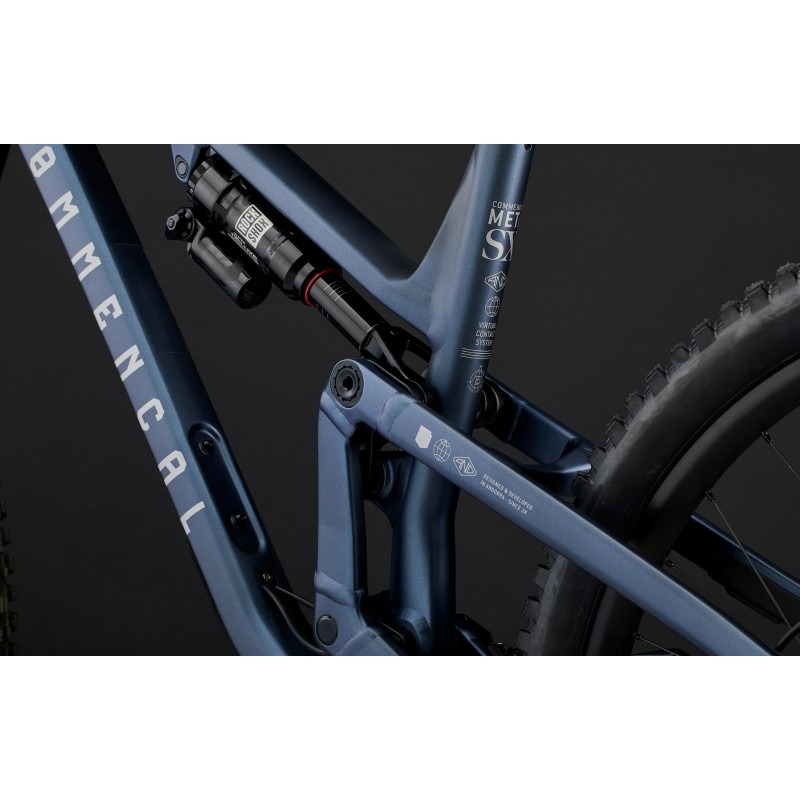

SHOCK

ROCKSHOX Super Deluxe Ultimate
230 x 65 mm, RC2T damper, DebonAir, HSC, LSC, rebound, 2-position (open/firm) compression, 0 Token neg. 2 Tokens pos.

FORK

ROCKSHOX Zeb Ultimate, 170 mm travel
29", Charger 3 RC2 W/ButterCup damper, DebonAir+ W/ButterCups, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token

HEADSET

ACROS ZS56 / ZS56
Alloy cups, sealed bearings

STEM

RIDE ALPHA 40
40 mm extension, 31,8 mm

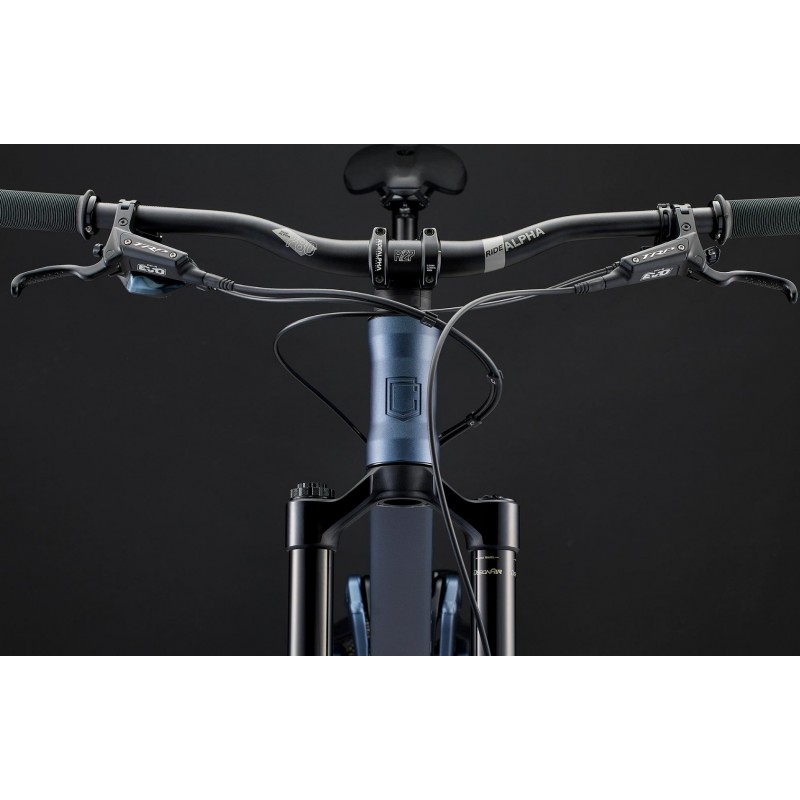

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI Longneck
Soft compound, single clamp, black

BRAKES

TRP DH-R EVO, 4 pistons, resin pads, Postmount
Rotors: TRP R1 203 mm, 6-bolts, 2.3 mm width

SHIFTERS

SRAM GX Eagle
12s

CHAIN GUIDE

RIDE ALPHA
32t-34t

REAR DERAILLEUR

SRAM GX Eagle
12s

BOTTOM BRACKET

SRAM DUB WIDE
Pressfit

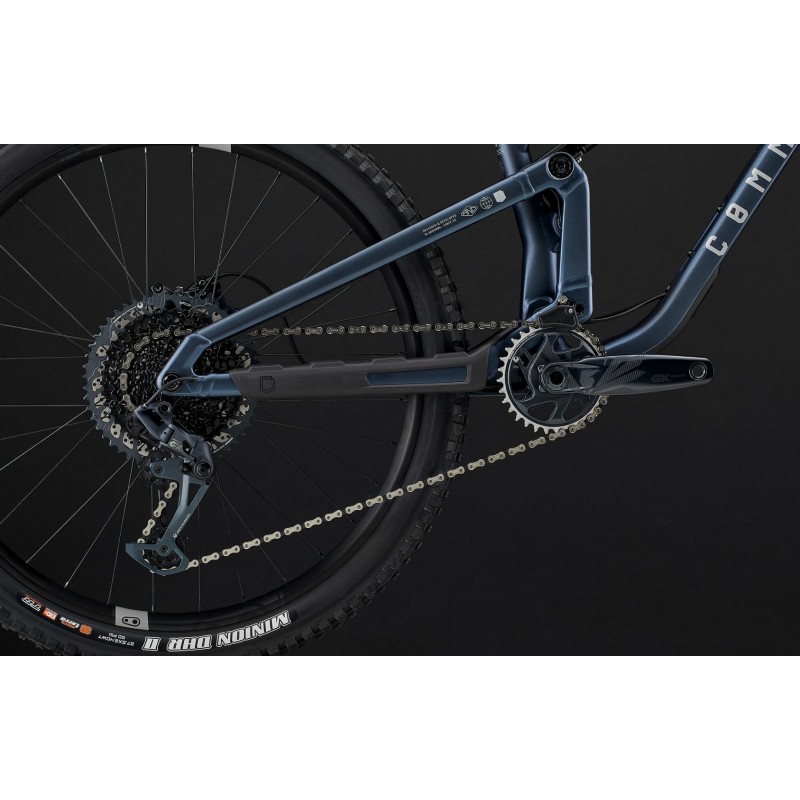

CRANKSET

SRAM GX Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-Wide

CHAIN

SRAM GX Eagle
12s

CASSETTE

SRAM XG-1275 Eagle
12s, 10-52t

RIMS

CRANK BROTHERS Synthesis Alloy Enduro 3
Rear: 27,5'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner width

HUBS

INDUSTRY NINE 1/1
Rear: 32h, sealed bearings, 12 x 148 mm, 4°, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, black

SPOKES/NIPPLES

Rear: SAPIM Race - Front:  SAPIM D-Light
Rear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm,  double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless Ready

SEAT POST

KS Lev Integra
34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remote

SADDLE

SDG Bel Air V3 Atmos
140 mm width, Lux-Alloy Rails

WEIGHT

15.9 kg / 35 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
