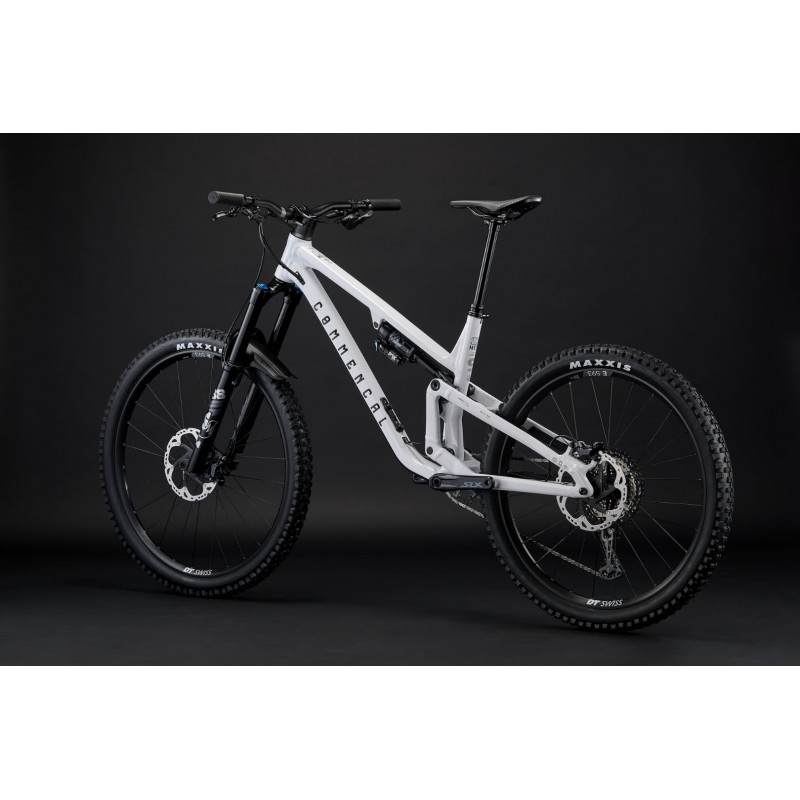

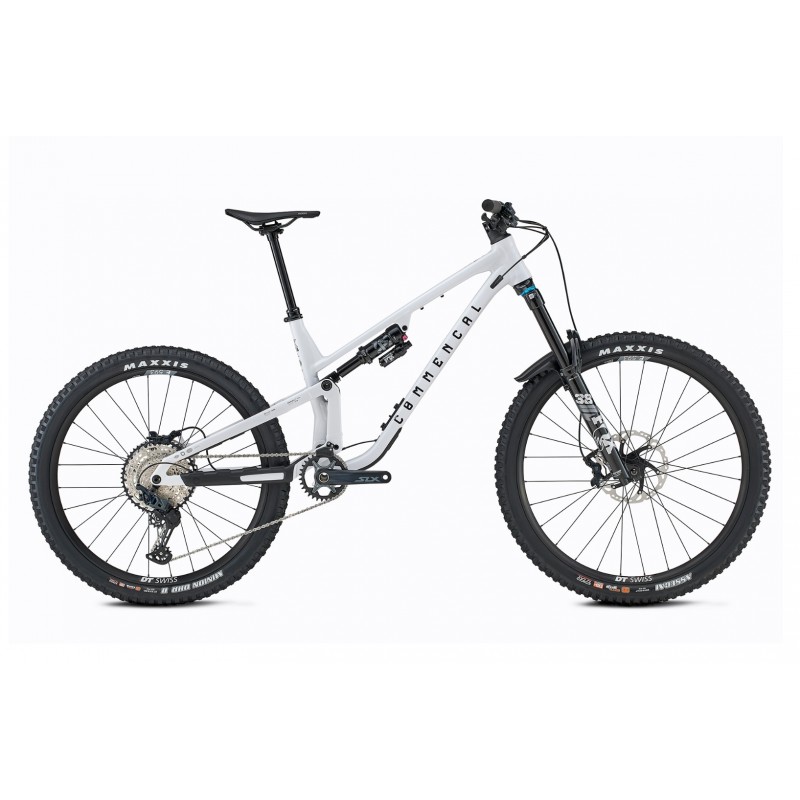

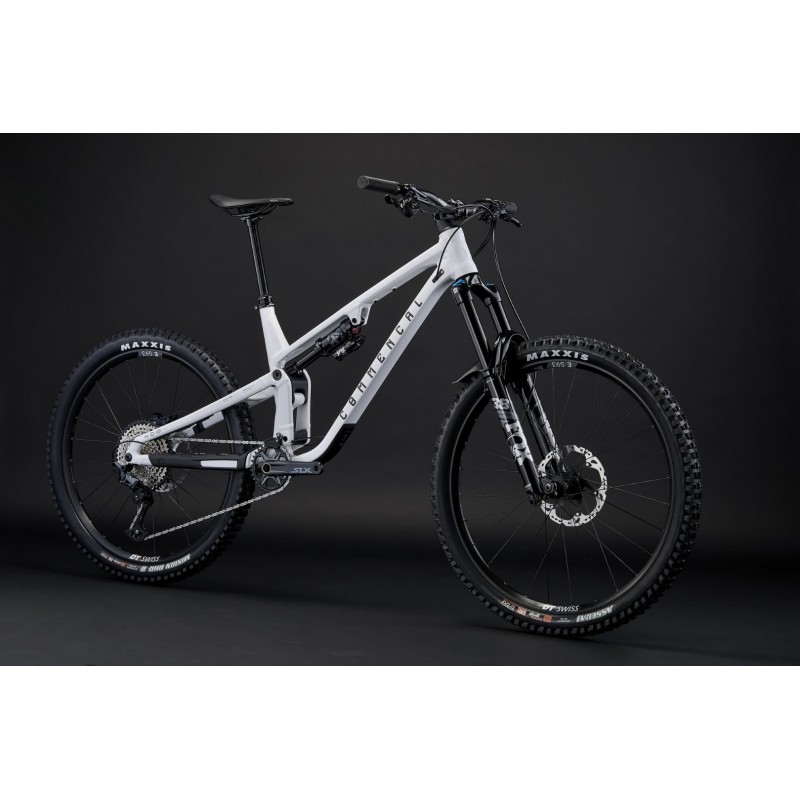

FRAME

2025 META SX, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

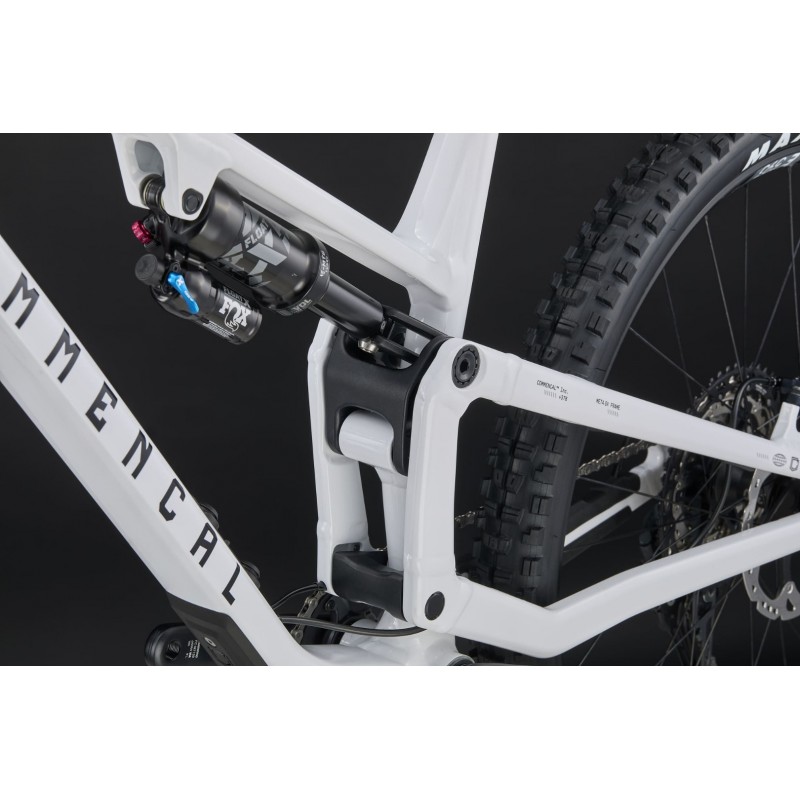

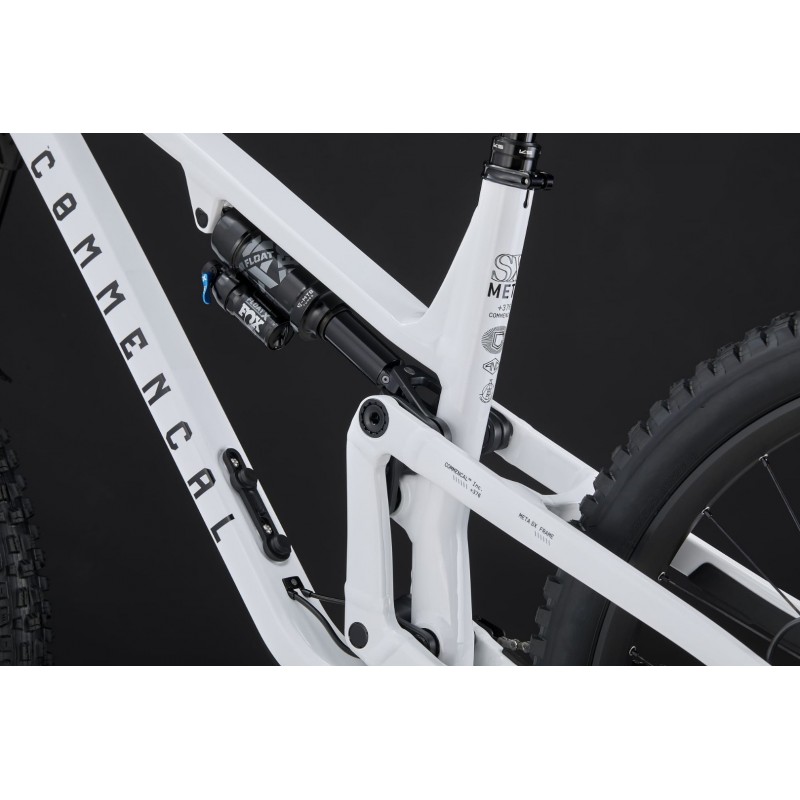

SHOCK

FOX Float X Performance
230 x 65 mm,  LSR, 2 pos-adj, 0.4ci Spacers

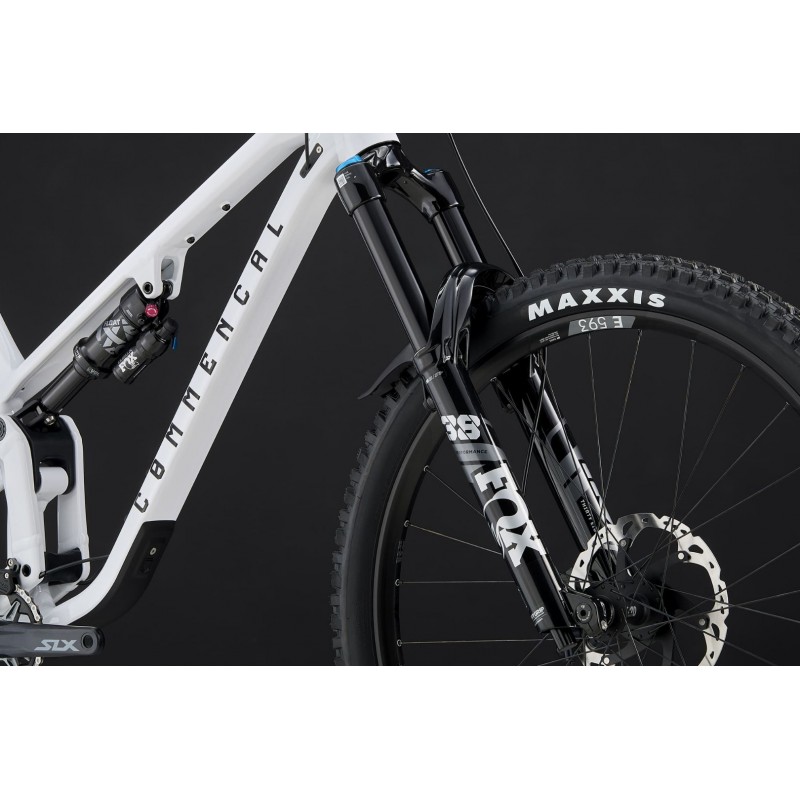

FORK

FOX 38 Performance, 170 mm travel
29", rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token

HEADSET

ACROS ZS56/ZS56
Alloy cups, sealed bearings

STEM

RIDE ALPHA 40
40 mm extension, 31.8 mm

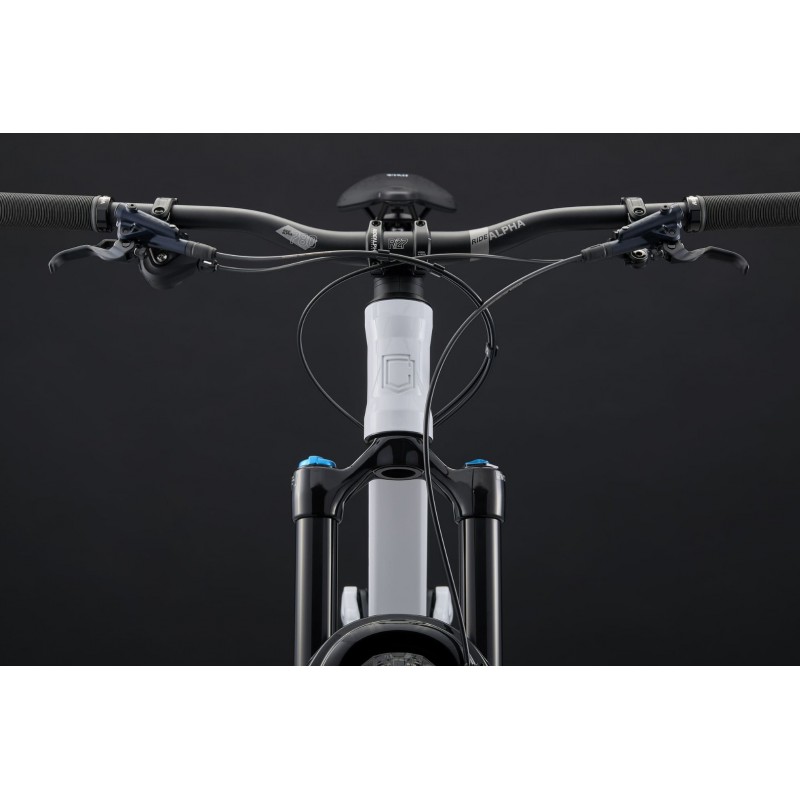

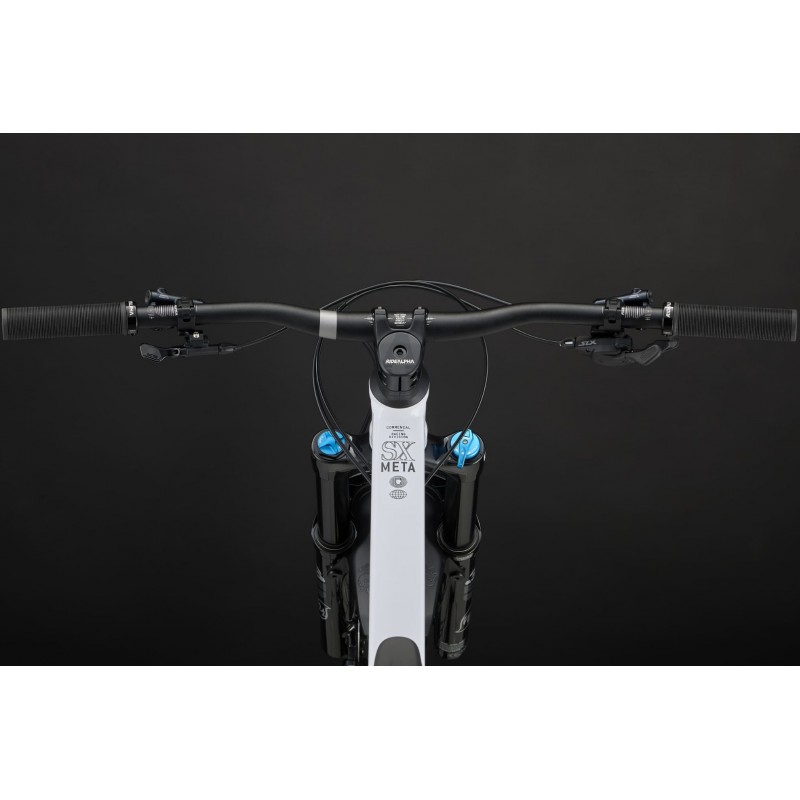

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

RIDE ALPHA Mushroom
Black clamp

BRAKES

SHIMANO SLX, 4 pistons, resin pads
Rotors: SHIMANO RT86, 203 mm, 6-bolts

SHIFTERS

SHIMANO SLX
12s

CHAIN GUIDE

RIDE ALPHA

REAR DERAILLEUR

SHIMANO SLX
12s

BOTTOM BRACKET

SHIMANO SM-BB-71
Pressfit

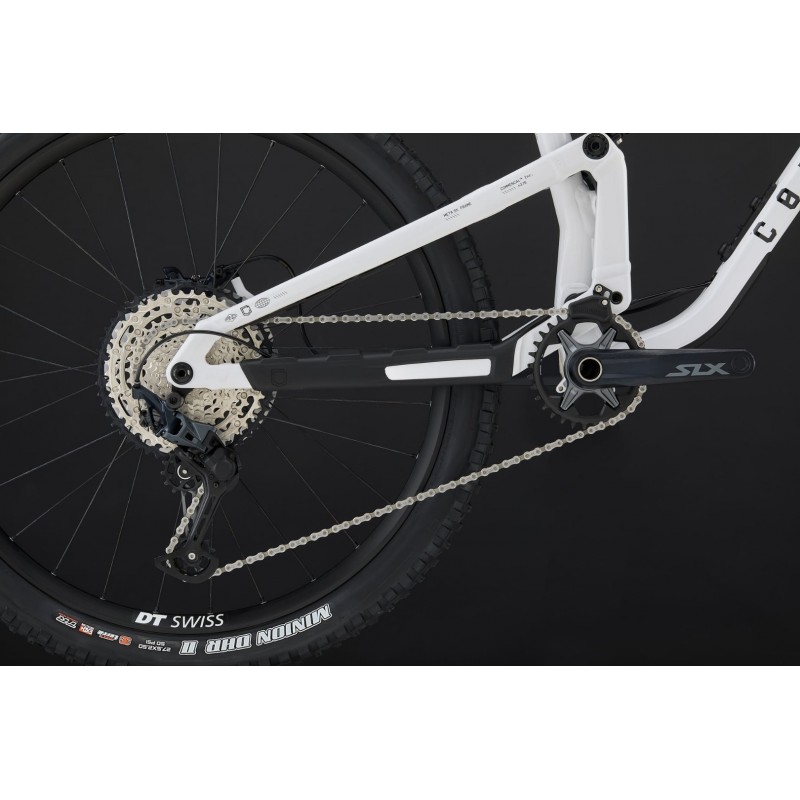

CRANKSET

SHIMANO SLX, 165 mm crank arms
Chainring: SHIMANO SLX, 32t

CHAIN

SHIMANO SLX
12s

CASSETTE

SHIMANO SLX
12s, 10-51t

RIMS

DT SWISS E593
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner width

HUBS

Included with wheelset
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Microspline - Front: 32h, sealed bearings, 15 x 110mm

SPOKES/NIPPLES

Included with wheelset

TYRES

Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5''x2.5'' WT, 3C MaxxTerra, New EXO+, Tubeless Ready - Front: 29''x2.5'' WT, 3C MaxxGrip, New EXO+, Tubeless Ready

SEAT POST

KS Rage-I
34.9 mm, travel: 125 mm on S, 170 mm on M and 190 mm on L/XL, SouthPaw alloy remote

SADDLE

FIZIK Terra Ridon X5
145 mm, Alloy rails

WEIGHT

16,5 kg / 36.3 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
