FRAME

META HT V3: 29''/27'' on S & 29''/29'' on M / L / XL
Alloy 6061, triple butted tubes, T4, T6.

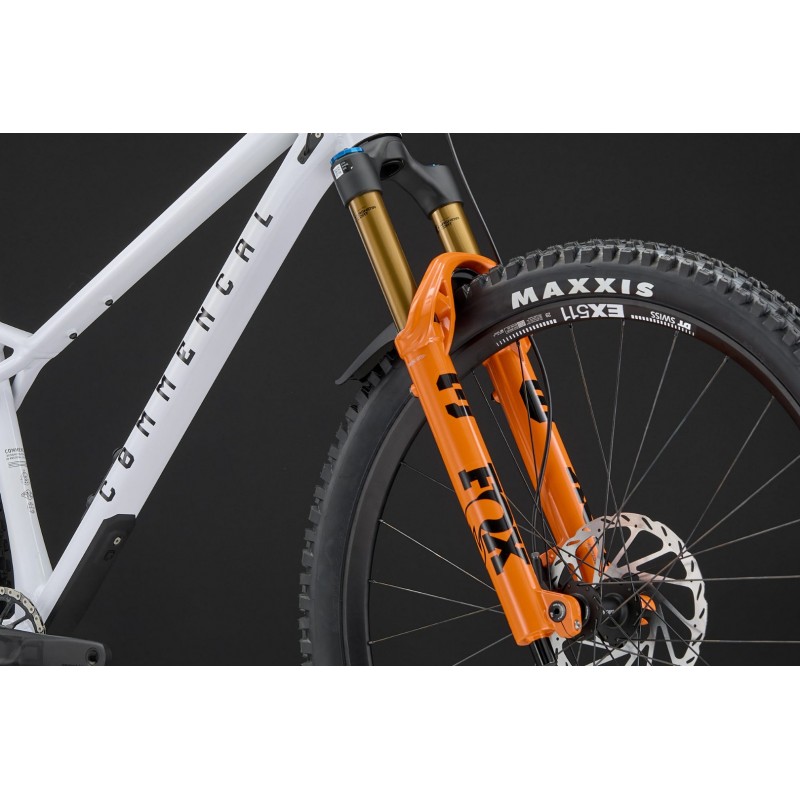

FORK

FOX 36 Factory, 150 mm travel
29", Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset

HEADSET

ACROS ZS56/ZS56
Alloy cups, sealed bearings

STEM

RIDE ALPHA  40 mm
40 mm extension, 31.8 mm

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

RIDE ALPHA Mushroom
132 mm, black clamp

BRAKES

SRAM DB8, 4 pistons
Rotors: SRAM G2 200 mm, 6-bolts

SHIFTERS

SRAM Eagle 90
12s

REAR DERAILLEUR

SRAM Eagle 90
12s

BOTTOM BRACKET

SRAM DUB BSA
Width 68 mm, wide

CRANKSET

SRAM Eagle 70, 170 mm crank arms
Chainring: SRAM Eagle 70, 32t, steel

CHAIN

SRAM GX T-type
12s

CASSETTE

SRAM Eagle 70
12s, 10-52t, Sram XD

RIMS

DT SWISS EX511
Rear: 27.5'', 32h, 30 mm inner width on S or 29'', 32h, 30 mm inner width on M / L / XL - Front: 29'', 28h, 30 mm inner width on S / M / L / XL

HUBS

DT SWISS 370
Rear: 32h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Champion
J-Bend

TYRES

Rear: MAXXIS DHRII - Front: MAXXIS Assegai
Rear: S: 27.5 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ - M / L / XL: 29 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+

SEAT POST

KS Rage-I
31.6 mm, travel: 150 mm on S, 170 mm on M, 190 mm on L/XL

SADDLE

FIZIK Terra Aidon X5
145 mm width, S-alloy rails

WEIGHT

14 kg / 30.86 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
