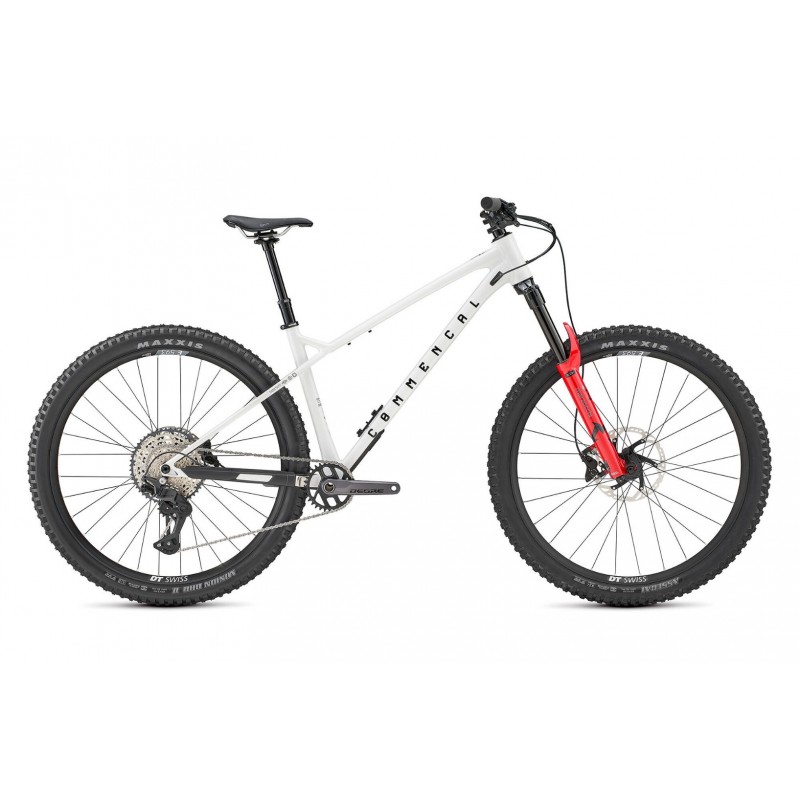

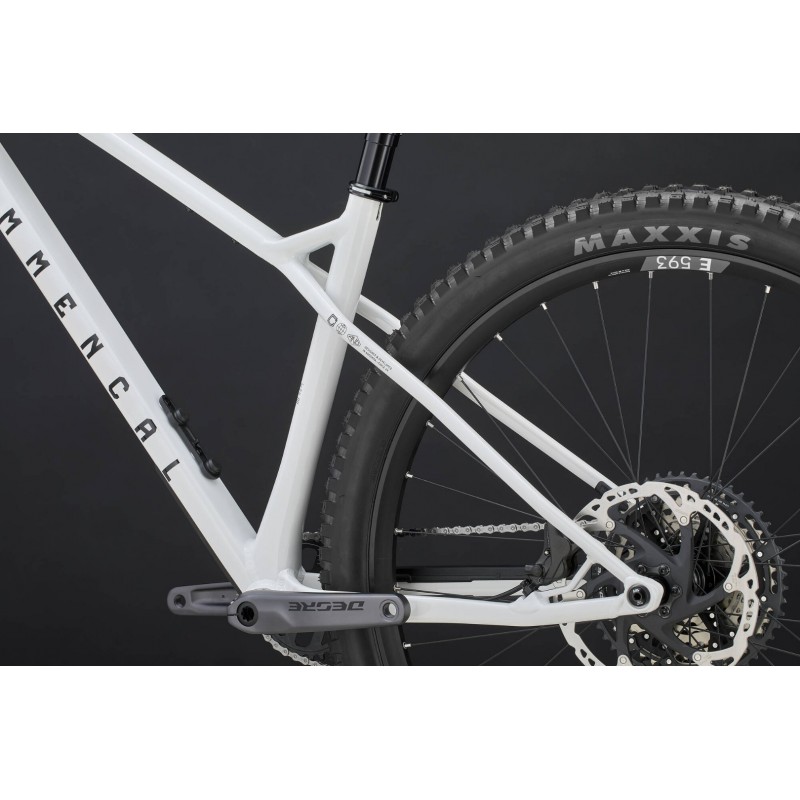

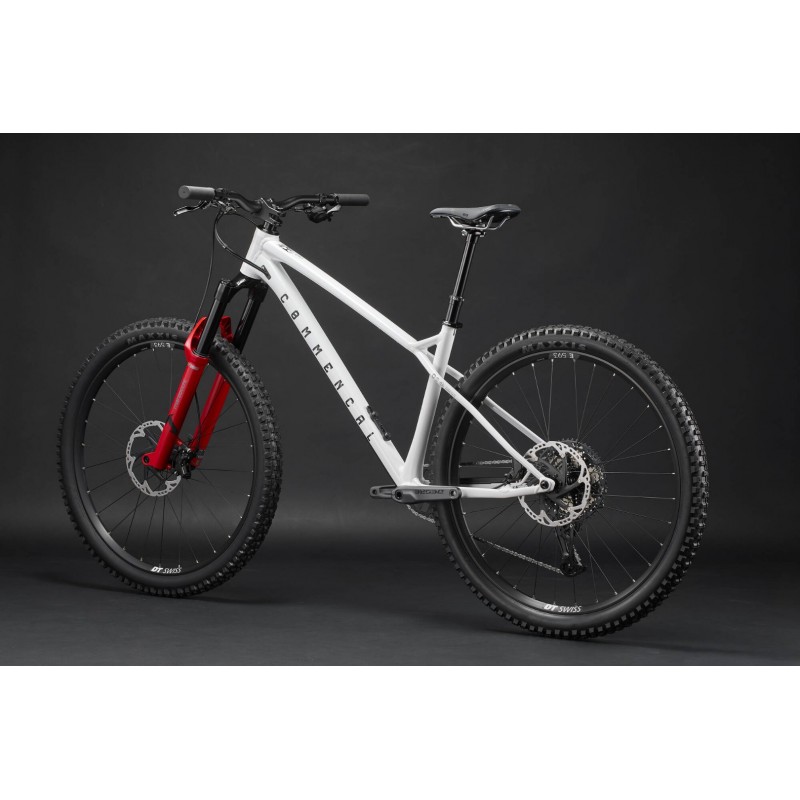

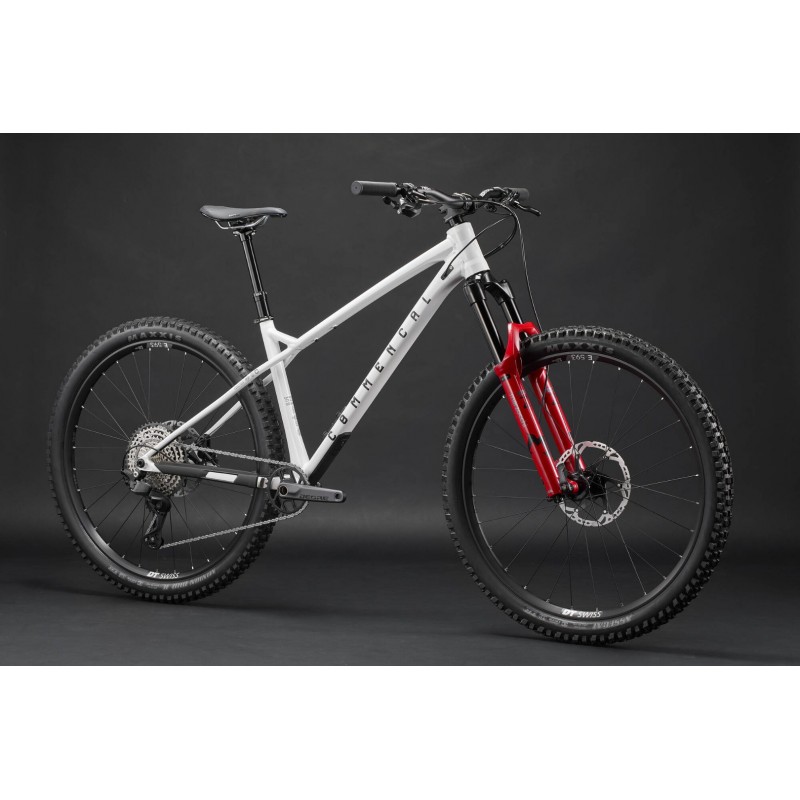

FRAME

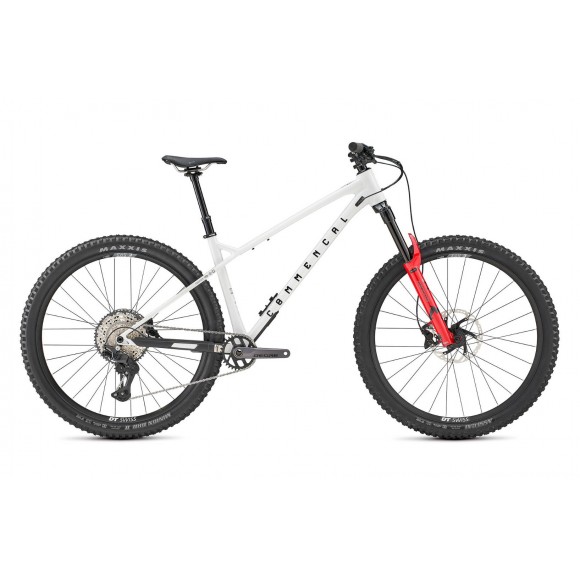

META HT V3: 29''/27'' on S & 29''/29'' on M / L / XL

Alloy 6061, triple butted tubes, T4, T6.

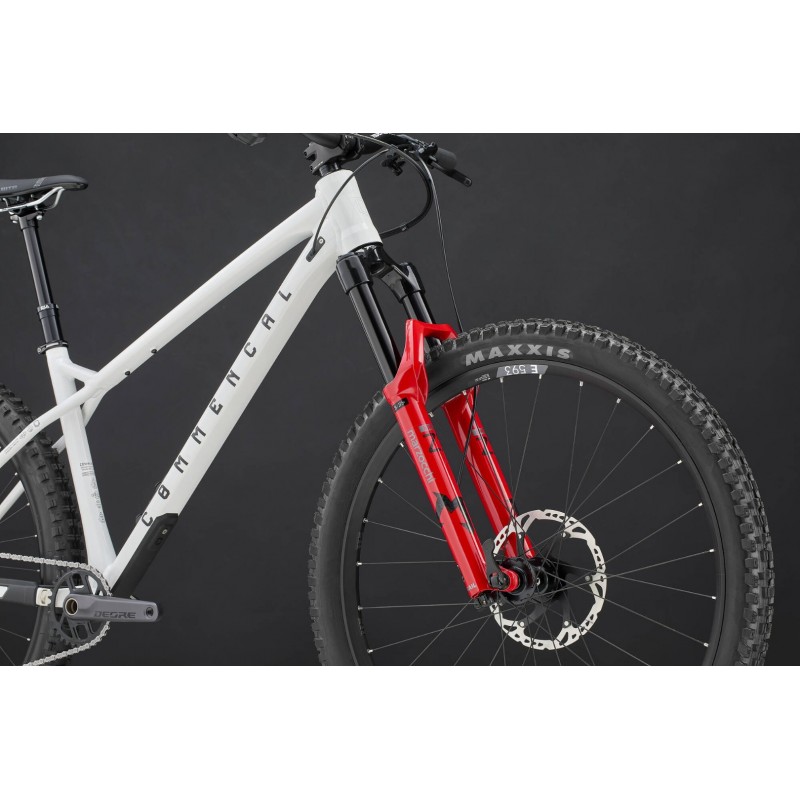

FORK

MARZOCCHI Bomber Z1, 150 mm travel

29", RAIL 2.0, Sweep-Adj, rebound, Boost (15 x 110 mm), 44 mm offset, 2 tokens

HEADSET

ACROS ZS56/ZS56

Alloy cups, sealed bearings

STEM

RIDE ALPHA  40 mm

40 mm extension, 31.8 mm

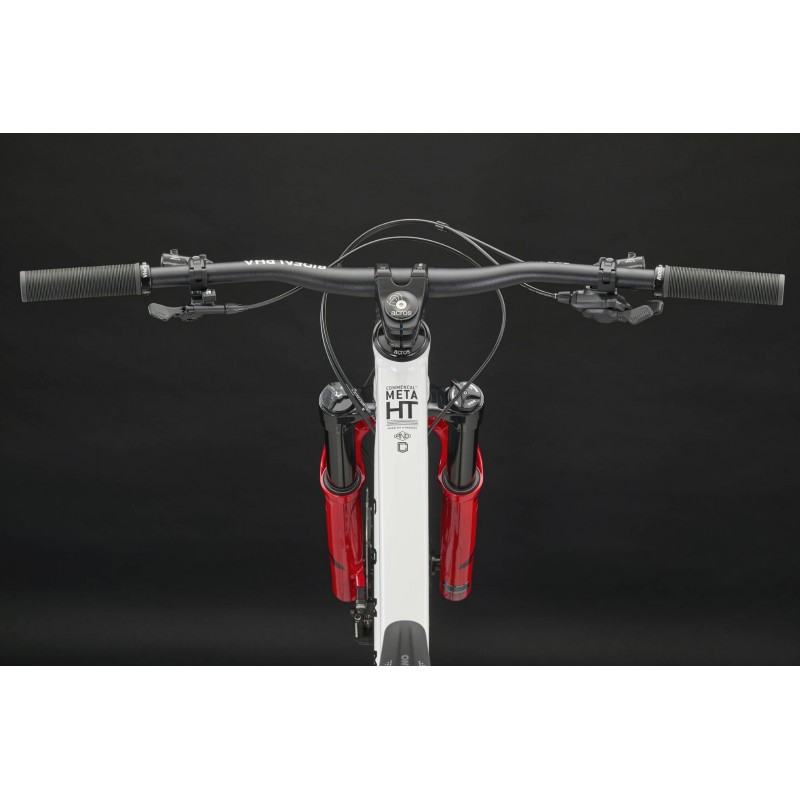

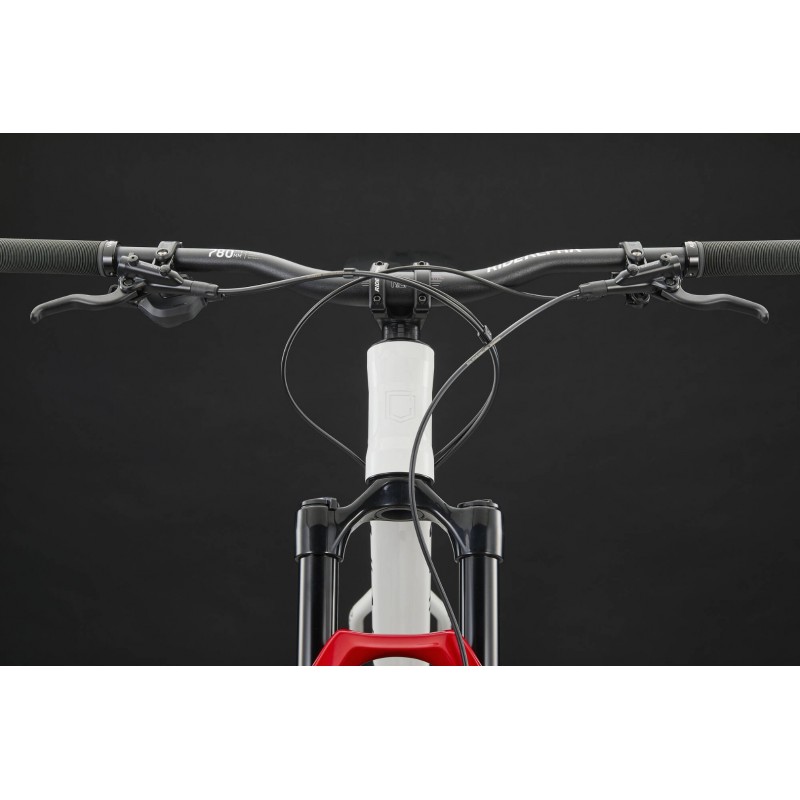

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL

GRIPS

RIDE ALPHA Mushroom

132 mm, black clamp

BRAKES

SHIMANO MT420, 4 pistons

Rotors : SHIMANO SMRT76 203 mm, 6-bolts

SHIFTERS

SHIMANO Deore M6200

12s

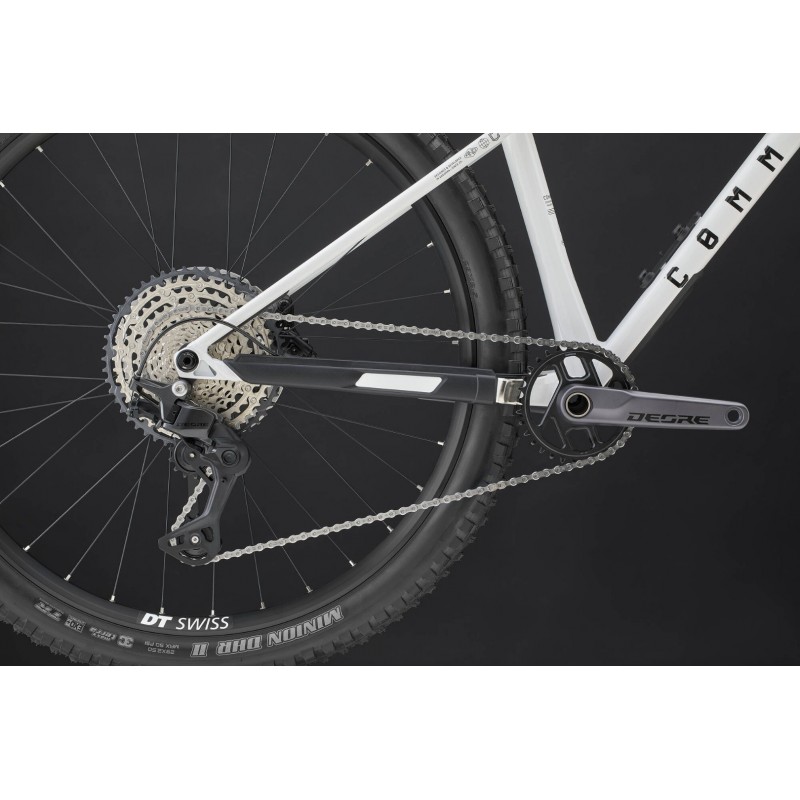

REAR DERAILLEUR

SHIMANO Deore M7200

12s

BOTTOM BRACKET

SHIMANO RS501

BSA 68

CRANKSET

SHIMANO Deore M6200, 170 mm crank arms

Chainring : SHIMANO Deore M6200, 32t

CHAIN

SHIMANO Deore M6100

12s

CASSETTE

SHIMANO Deore M7200

12s, 10-51t

RIMS

DT SWISS E593

Rear : 27.5'', 32h, 30 mm inner width rear on S - 29'', 32h, 30 mm inner width front on M / L / XL - Front : 29'', 28h, 30 mm inner width rear on S / M / L / XL

HUBS

Rear : FORMULA MSL-148A - Front : FORMULA DC-611

Rear : 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front : 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

SAPIM D-Light

2.0-1.8-2.0mm, double butted, with Nylok, black

TYRES

Rear : MAXXIS DHRII - Front : MAXXIS Assegai

Rear : 27.5x2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ on S - 29x2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ on M / L / XL - Front : 29x2.50WT 3C MaxxTerra, Exo, TR

SEAT POST

KS 900i

31.6 mm, travel: 150 mm on S, 170 mm on M, 190 mm on L/XL

SADDLE

WTB Solano Medium

142 x 240 mm, Cromo rails

WEIGHT

14,4 kg / 31.74 lbs

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No

COLOUR

Pure White

Shiny Finish
