FRAME

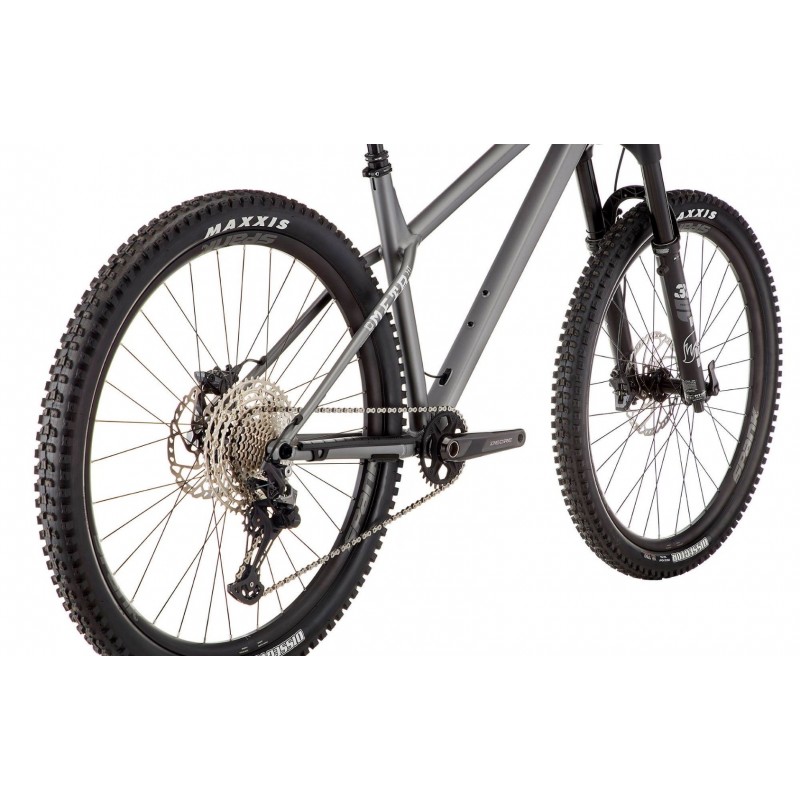

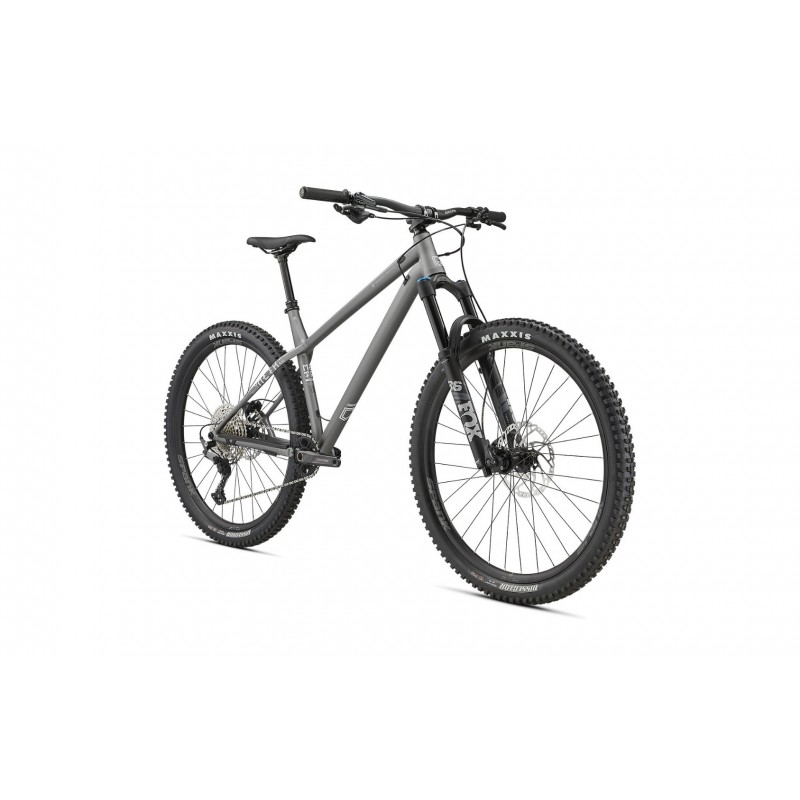

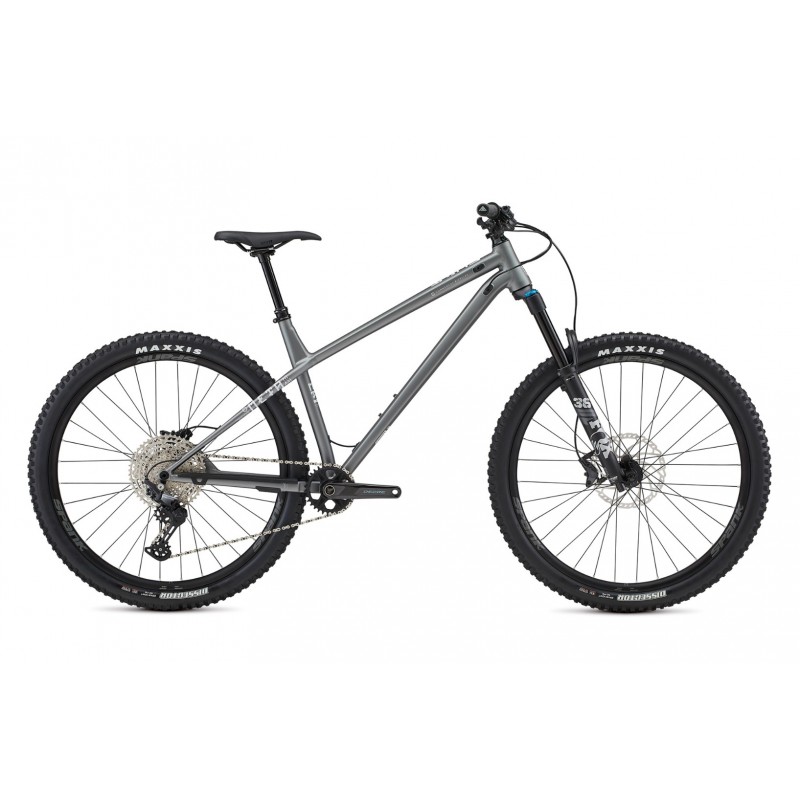

2021 META HT AM - 29’’
Alloy 6061, triple butted tubes, T4, T6.

FORK

FOX 36 Performance, 150 mm travel

29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 51 mm offset

HEADSET

ACROS ZS44 / ZS56

Alloy cups, sealed bearings

STEM

RIDE ALPHA Freeride 40

40 mm extension, 31,8 mm

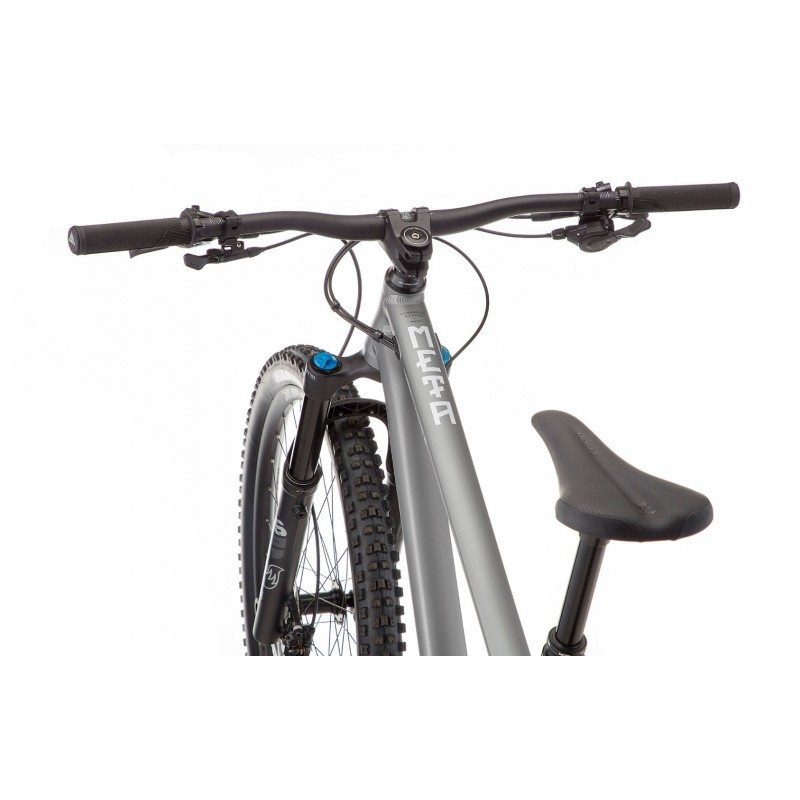

HANDLEBAR

RIDE ALPHA R27

31,8 mm, 780 mm width, 27 mm rise, Alloy 6061

GRIPS

ODI Elite Motion
Soft pro compound, single clamp, black

BRAKES

SHIMANO Deore, 2 PISTONS, I-Spec EV compatible

Rotors: SHIMANO SM-RT66 203 / 180 mm

SHIFTERS

SHIMANO Deore

12 sp, RapidFire Plus

REAR DERAILLEUR

SHIMANO Deore
12 sp

BOTTOM BRACKET

SHIMANO Deore
BSA, threaded

CRANKSET

SHIMANO Deore, 170 mm crank arms, Boost
Chainring: SHIMANO Deore, 32t

CHAIN

KMC X12
12 sp

CASSETTE

SHIMANO Deore
12 sp, 10-51t

RIMS

SPANK Spike Race 33
29'', 32h, 28 mm inner width, Tubeless Ready

HUBS

Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition
J-Bend, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS Dissector - Front: MAXXIS Dissector
Rear: 29" x 2.4" WT, EXO, Tubeless Ready
Front: 29" x 2.4" WT, EXO, Tubeless Ready

SEAT POST

KS Rage-I
31,6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

SADDLE

FIZIK Alpaca X5
145mm width, S-Alloy rail

WEIGHT

13,4 kg / 29,54 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
