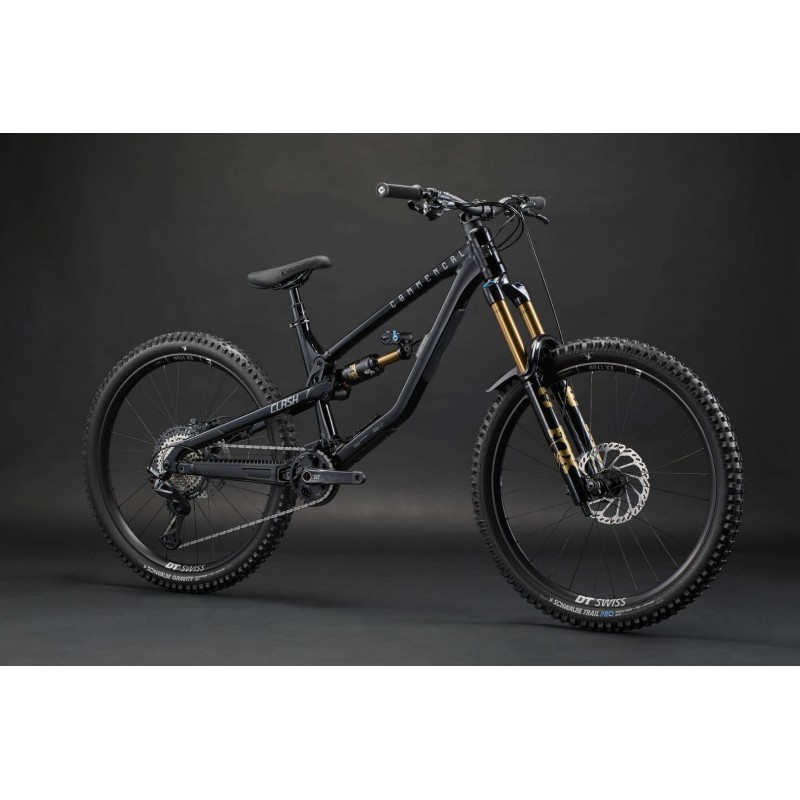

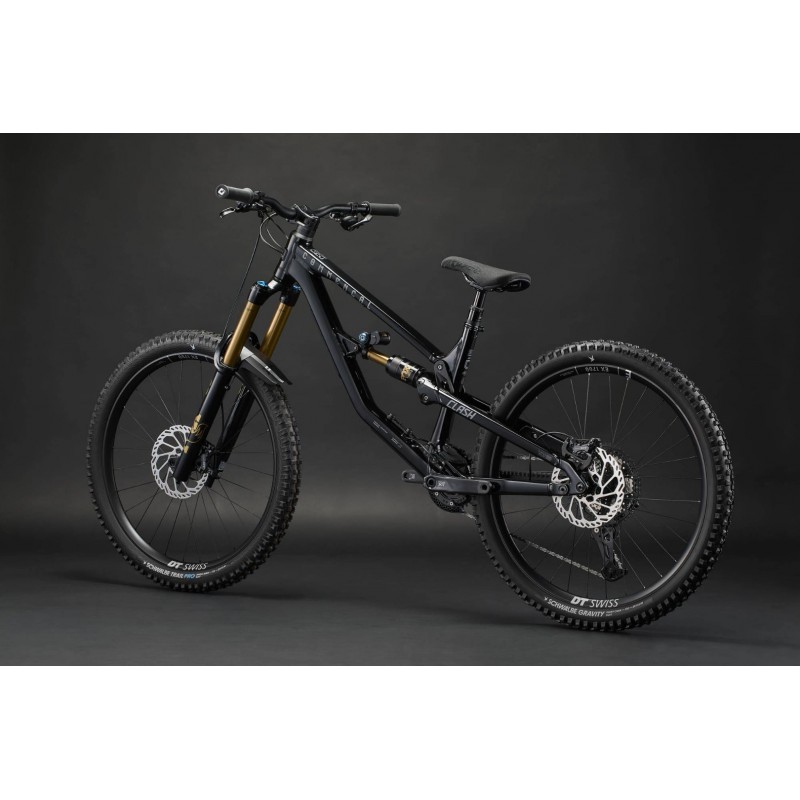

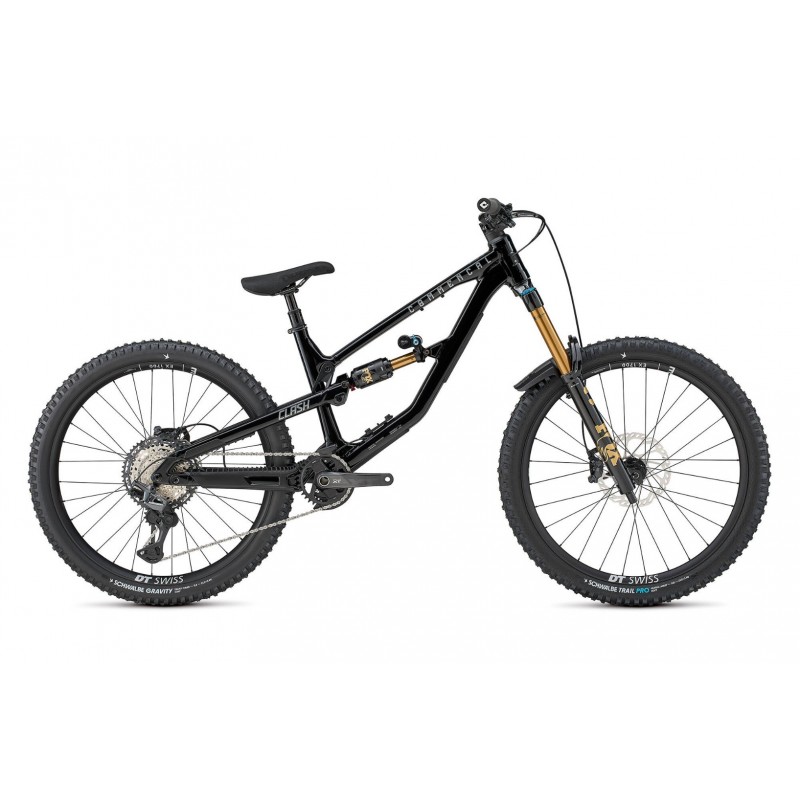

FRAME

CLASH V3, 170 mm travel

27.5'', Alloy 6066, triple butted tubes, T4, T6

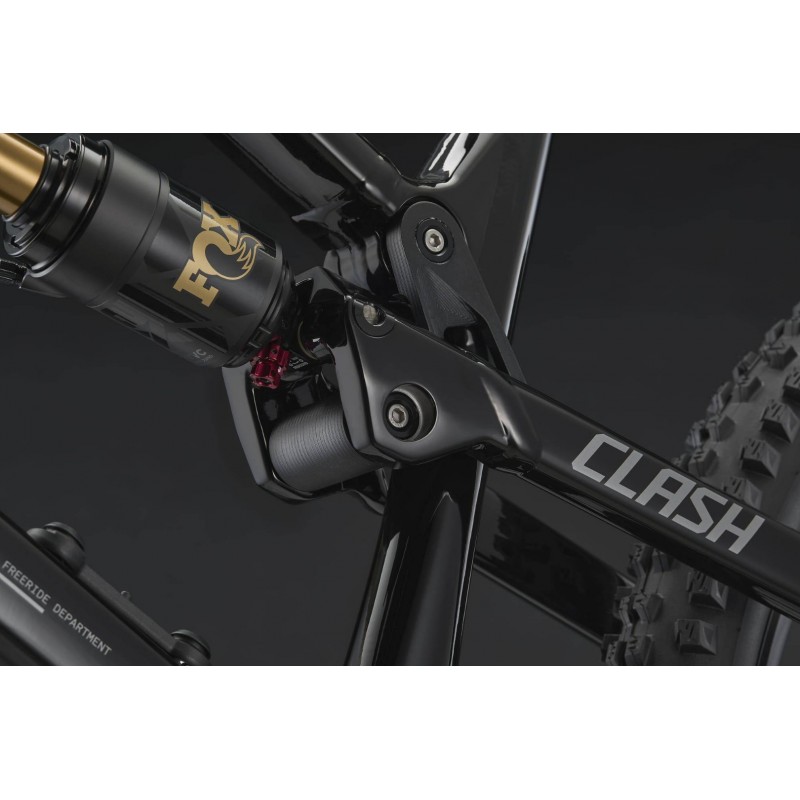

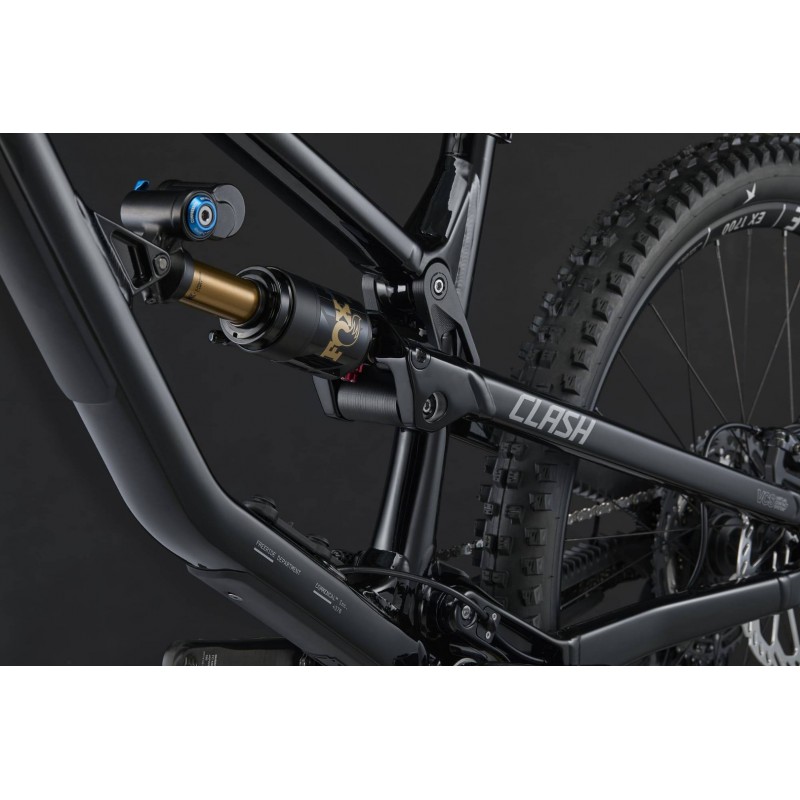

SHOCK

FOX Float X2 Factory

230 x 65 mm, 2-pos adjustment, HSC, LSC, HSR, LSR

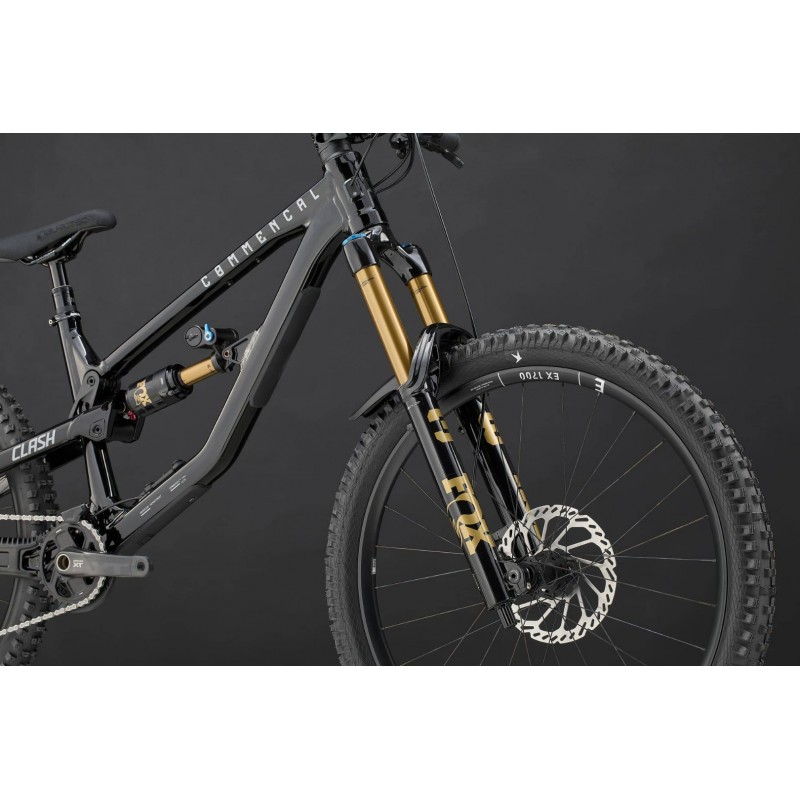

FORK

FOX 38 Factory, 180 mm

27.5'', Grip X2, HSC, LSC, HSR, LSR, Boost (15 x 110), 2 Tokens

HEADSET

ACROS ZS56 / ZS56

Alloy cups, sealed bearings

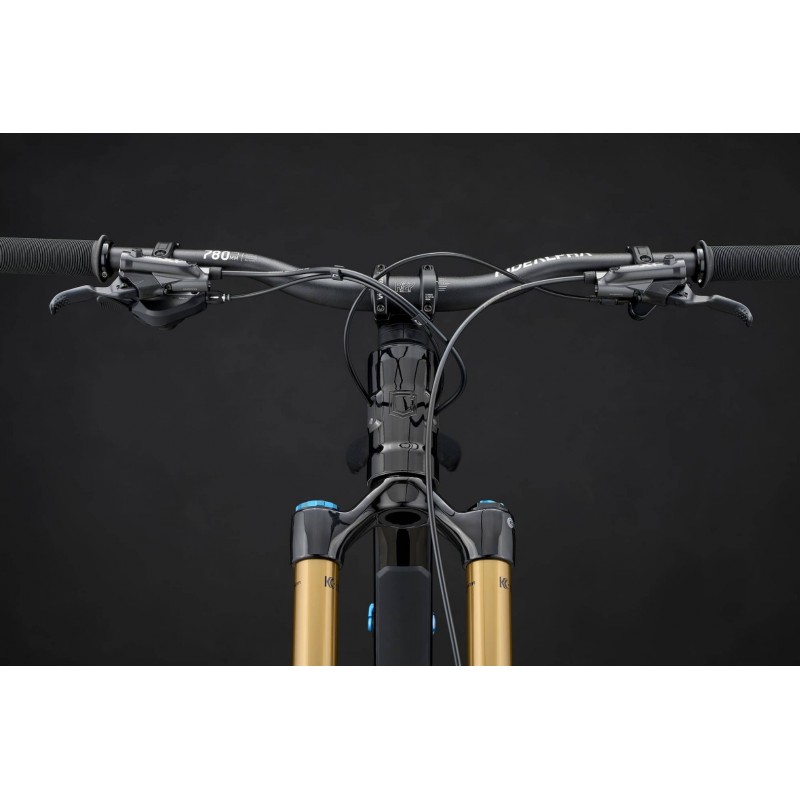

STEM

RIDE ALPHA 40

40 mm extension, 31.8 mm

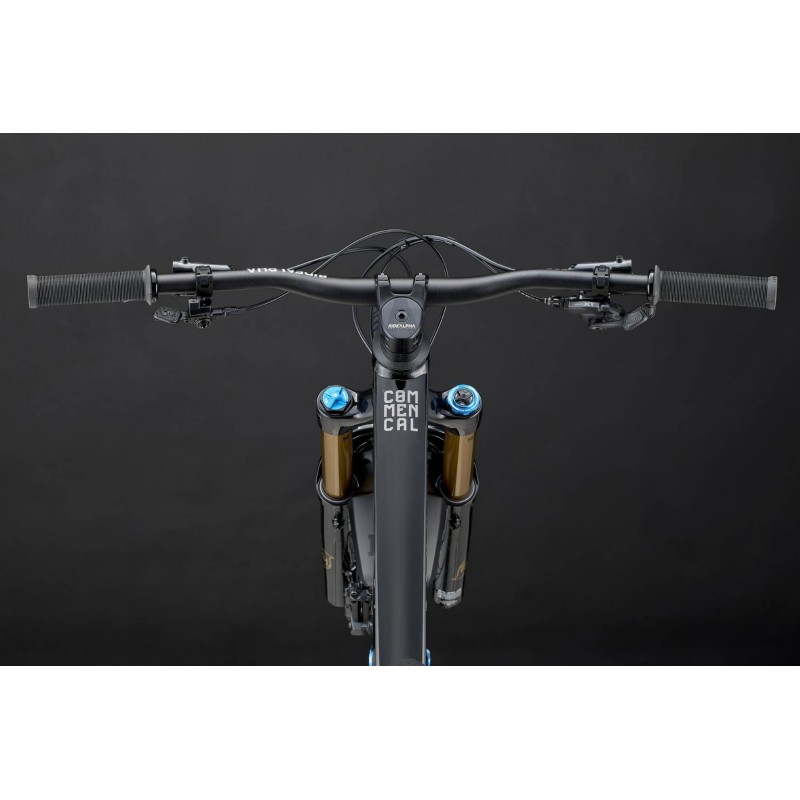

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL

GRIPS

ODI Longneck V2.1

Single clamp, black

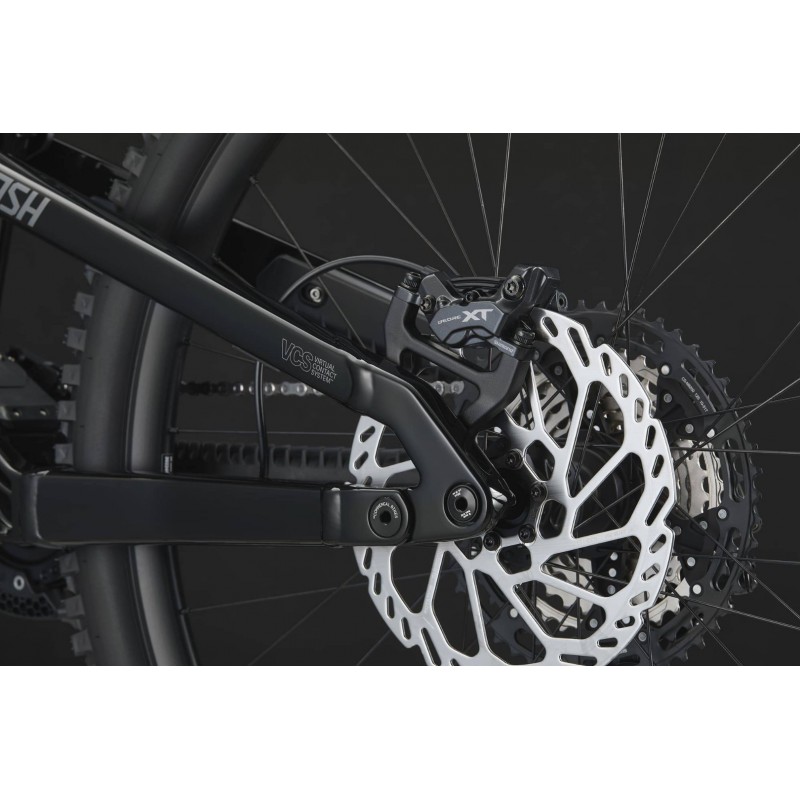

BRAKES

SHIMANO XT, 4 pistons, resin pads

Rotors : SHIMANO RT 6B750 200 mm, 6-bolts

SHIFTERS

SHIMANO XT

12s

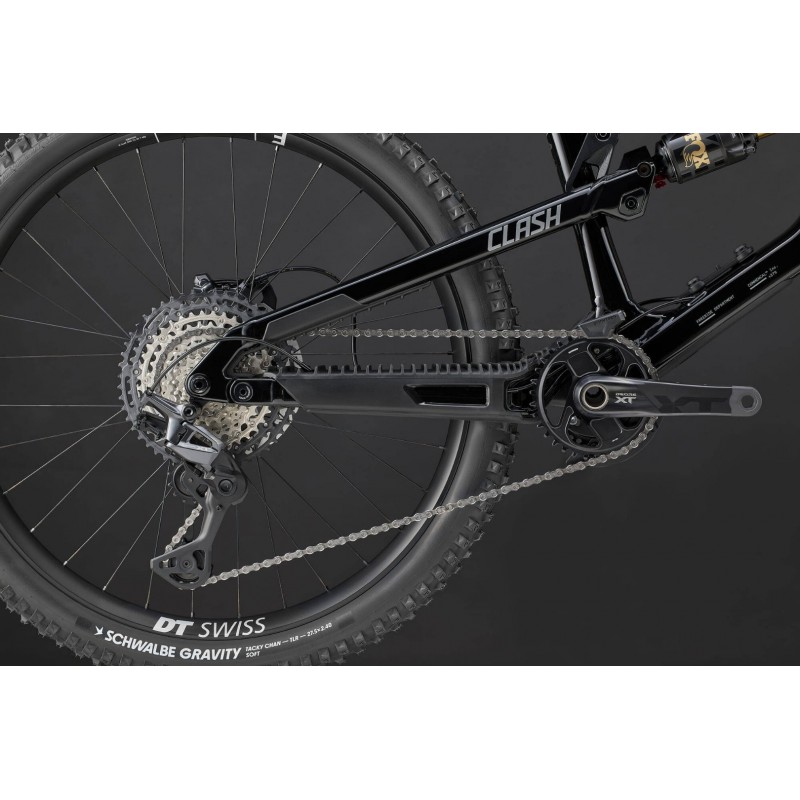

REAR DERAILLEUR

SHIMANO XT

12s

BOTTOM BRACKET

SHIMANO MT801

BSA 73

CRANKSET

SHIMANO XT, 165 mm crank arms

Chainring : SHIMANO XT, 34t

CHAIN

SHIMANO XT

12s

CASSETTE

SHIMANO XT

12s, 10-51t

RIMS

DT SWISS EX1700 Classic

27.5'', 32h, 30 mm inner width

HUBS

DT SWISS 350

Rear : 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline, DEG DF - Front : 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary

Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, Soft, Tubeless ready

SEAT POST

ONE UP Dropper V3

34.9 mm, 150 mm on S, 180 mm on M, 210 mm on L

SADDLE

BURGTEC The Cloud Boost

Alloy rails, Black

WEIGHT

17,5 kg / 38.58 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No

COLOUR

Pure Black

Shiny Finish
