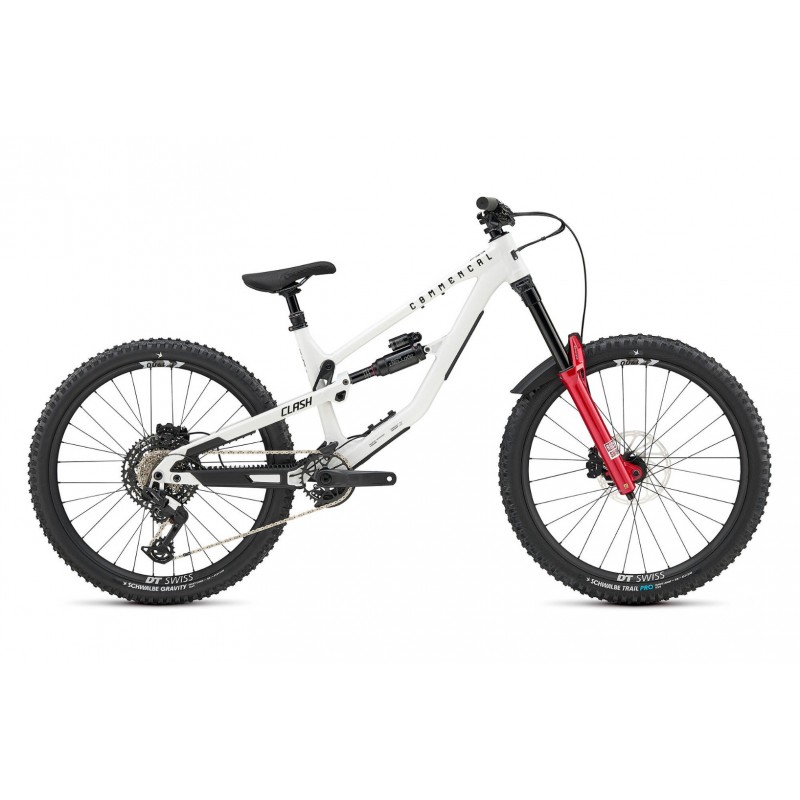

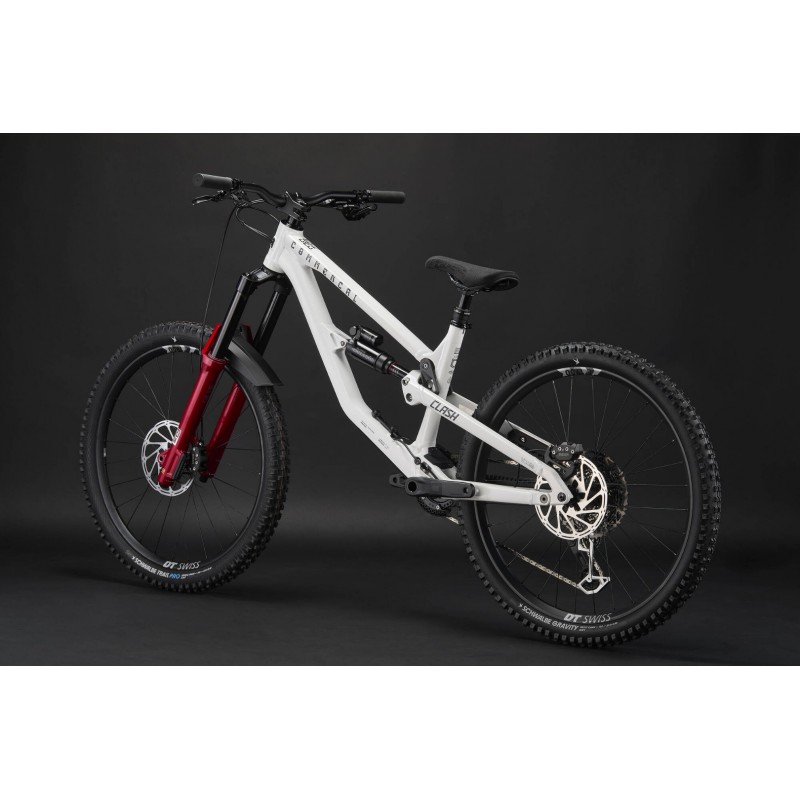

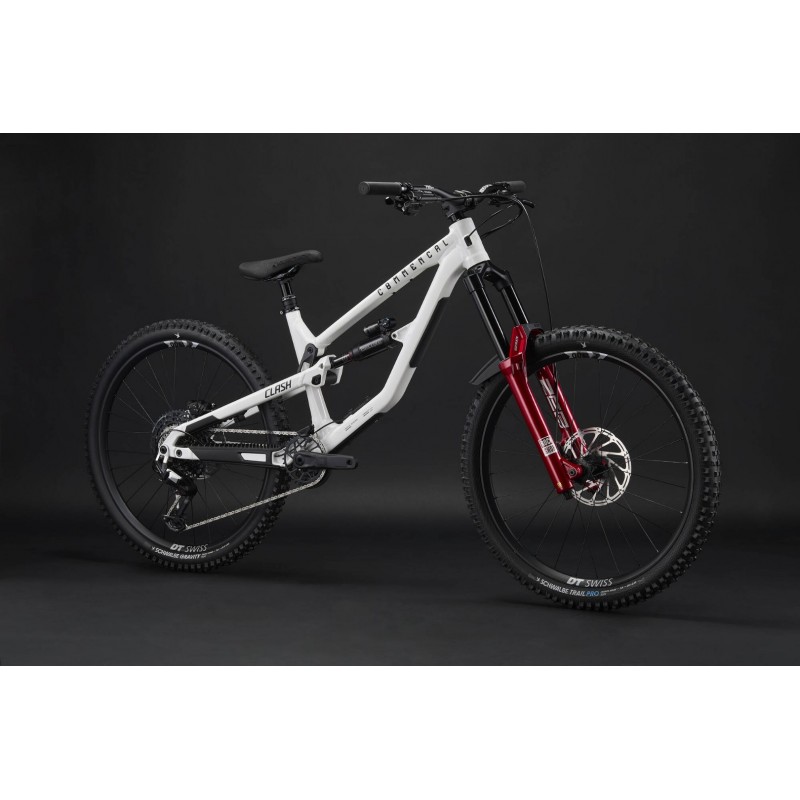

FRAME

CLASH V3, 170 mm travel

27.5'', Alloy 6066, triple butted tubes, T4, T6.

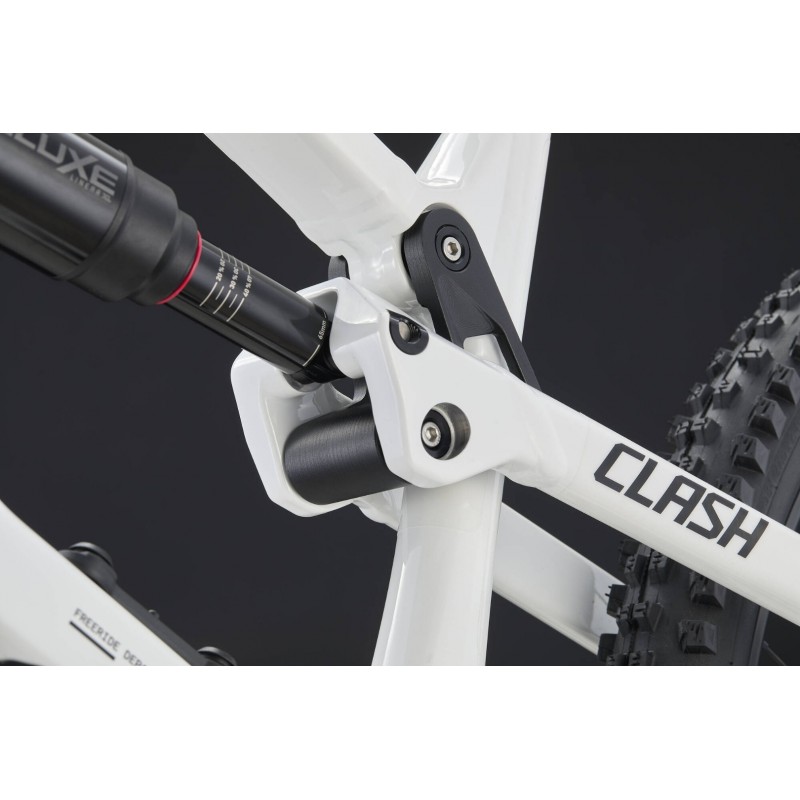

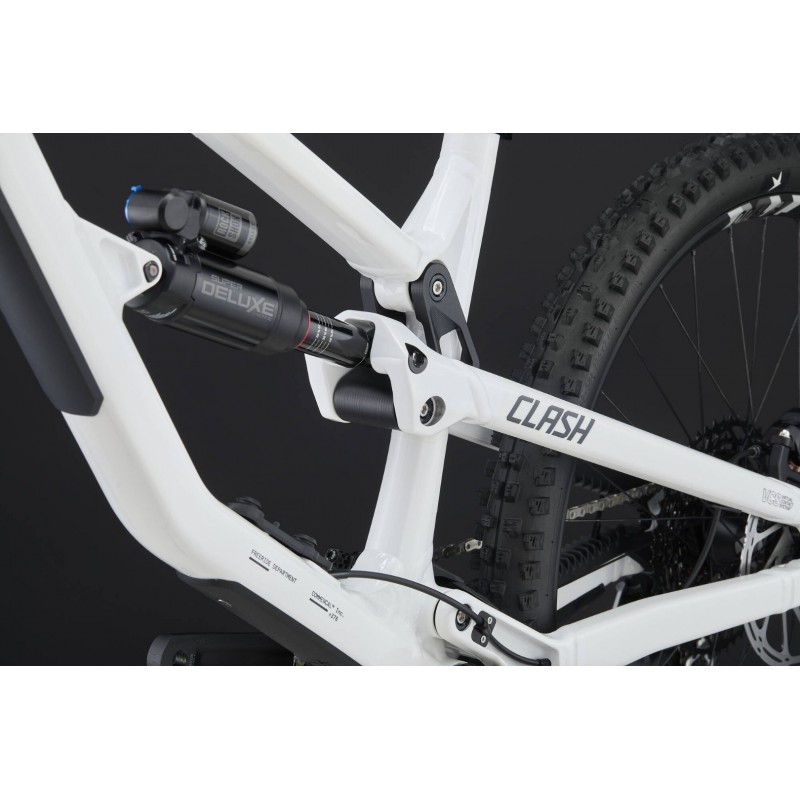

SHOCK

ROCKSHOX Super Deluxe Select

230 x 65 mm, Pos adjustment, Rebound

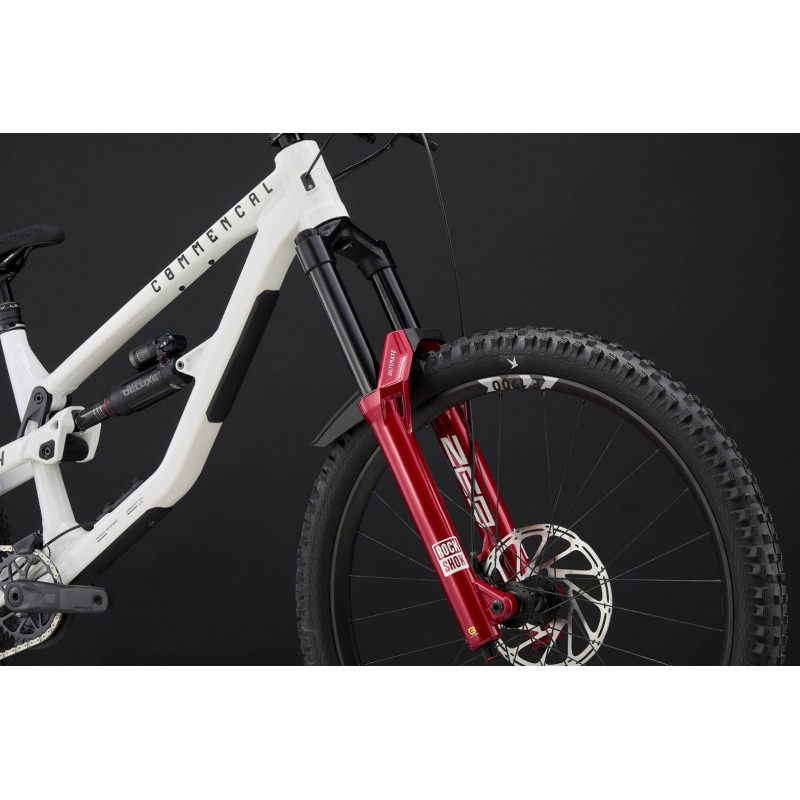

FORK

ROCKSHOX Zeb Ultimate, 180 mm

27.5'', Charger 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110), 0 Token

HEADSET

ACROS ZS56 / ZS56

Alloy cups, sealed bearings

STEM

RIDE ALPHA 40

40 mm extension, 31.8 mm

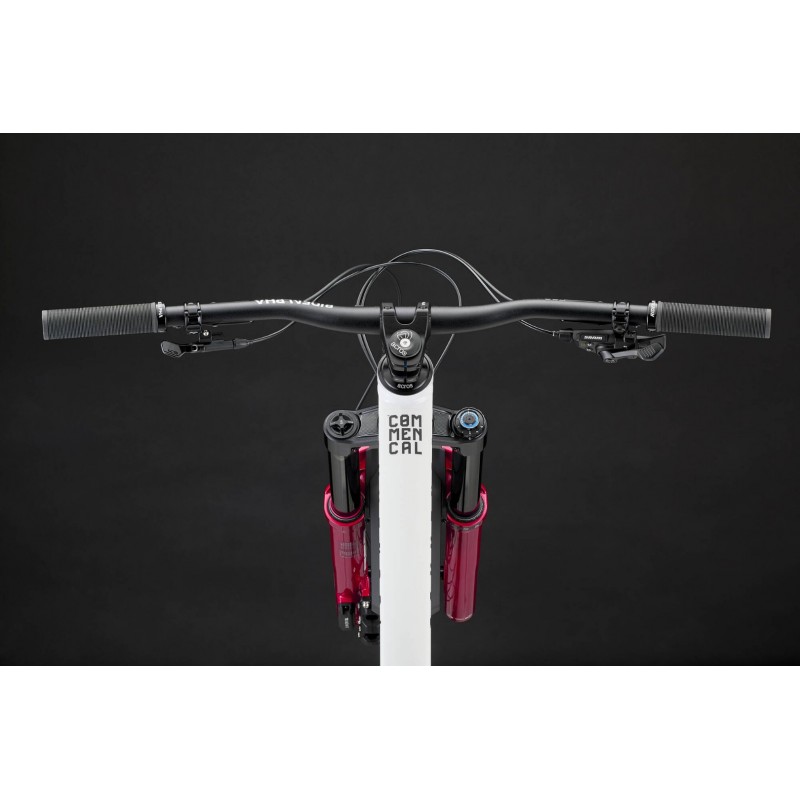

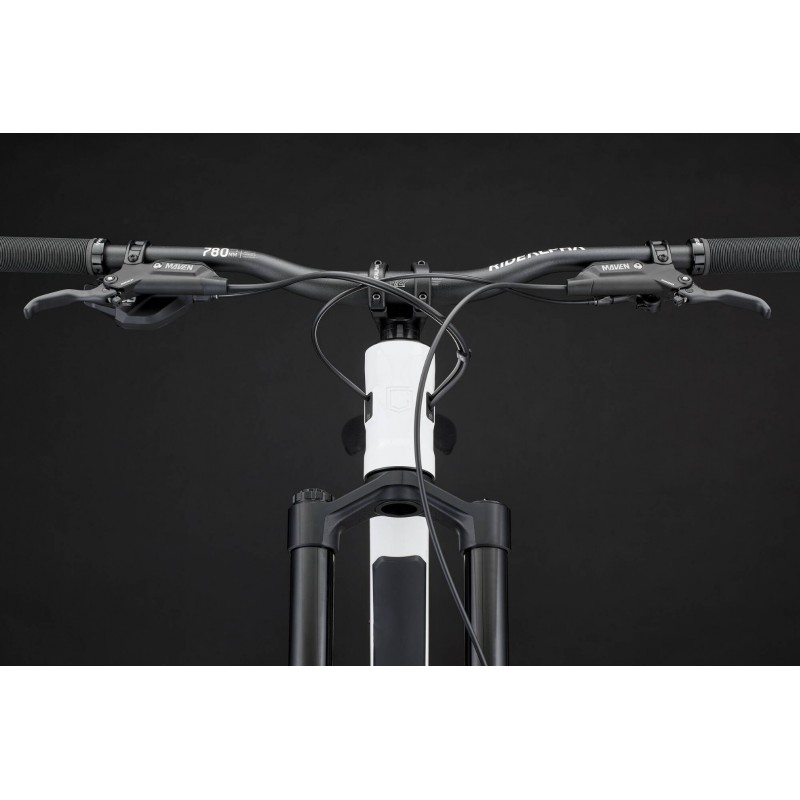

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M - RIDE ALPHA R35 800 on L

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on L

GRIPS

RIDE ALPHA Mushroom

Single clamp, black

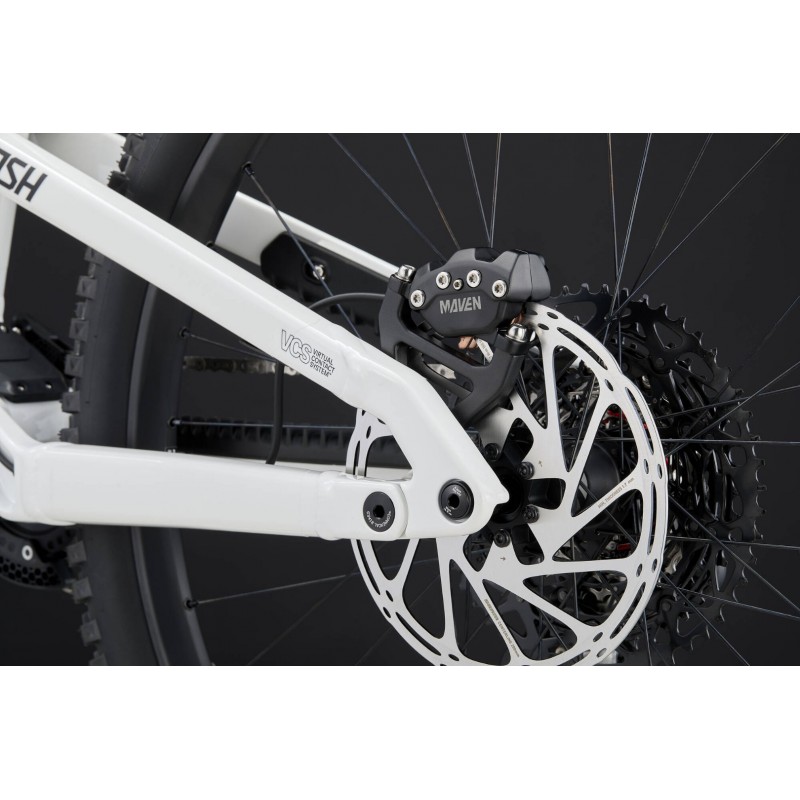

BRAKES

SRAM Maven Base, 4 pistons, sintered pads

Rotors : SRAM Centerline 200 mm, 6-bolts

SHIFTERS

SRAM EAGLE 90

12s

CHAIN GUIDE

E13 Vario

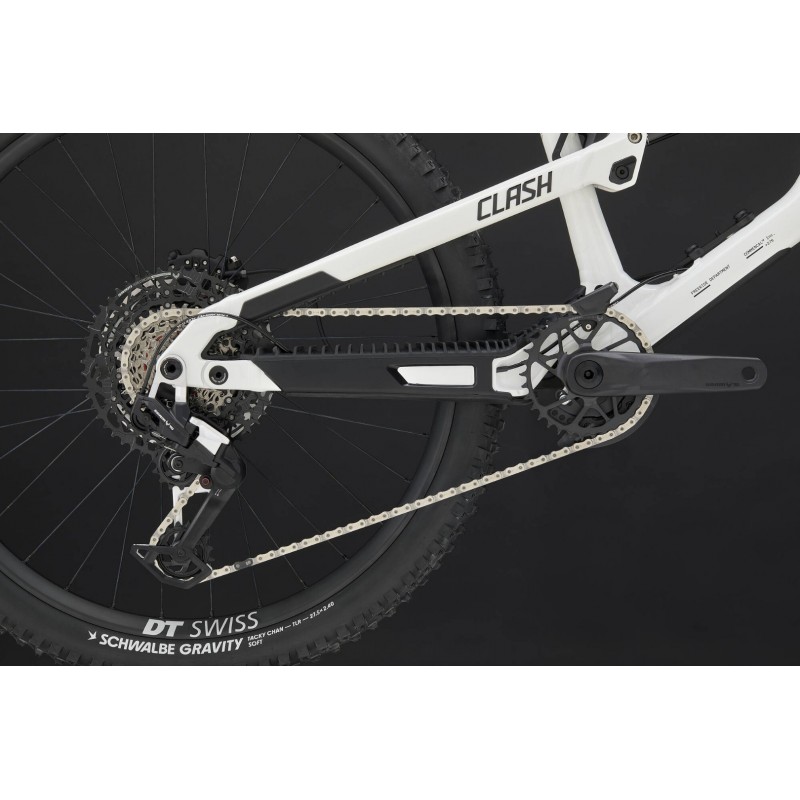

REAR DERAILLEUR

SRAM EAGLE 90

12s

BOTTOM BRACKET

SRAM DUB

BSA 73 MTB wide

CRANKSET

SRAM EAGLE 70, 165 mm

Chainring : SRAM EAGLE 90, 34t T-type

CHAIN

SRAM GX T-type

12s

CASSETTE

SRAM XS 1270 T-type

12s, 10-52t

RIMS

DT SWISS F1900 Classic

27.5'', 32h, 30 mm inner width

HUBS

DT SWISS 370 Classic LN

Rear : 32h, sealed bearings, 12 x 148 mm, Hyperglide - Front : 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Competition

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary

Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, Soft, Tubeless ready

SEAT POST

KS Lev Integra

34.9 mm, 150 mm on S, 175 mm on M, 200 mm on L

SADDLE

BURGTEC The Cloud boost

Alloy rails, Black

WEIGHT

- kg / - lbs

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
