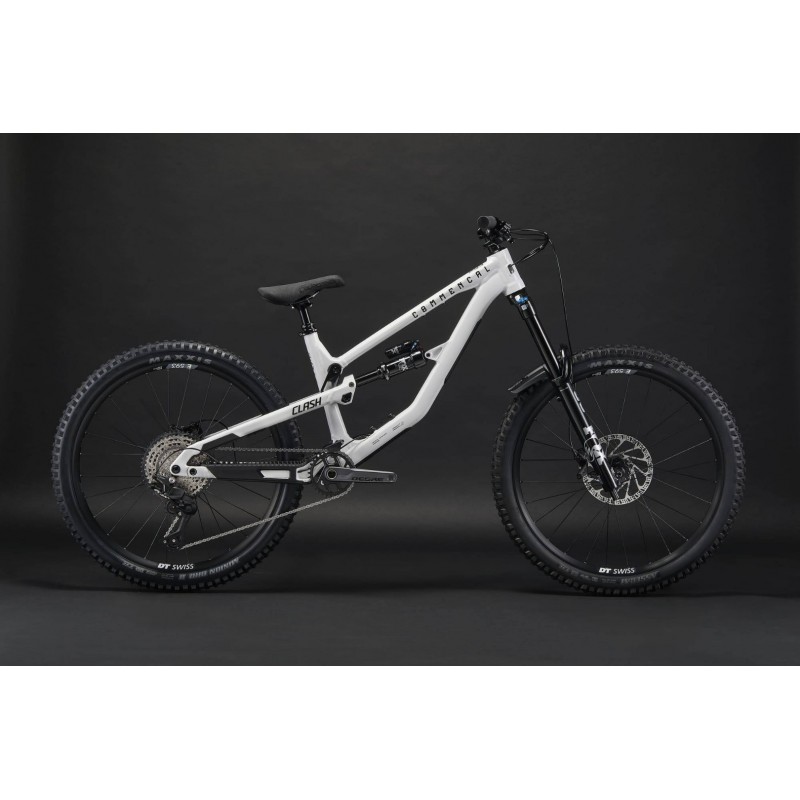

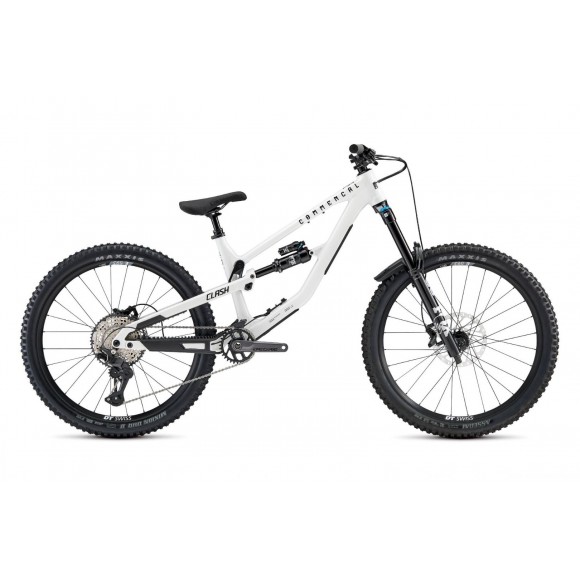

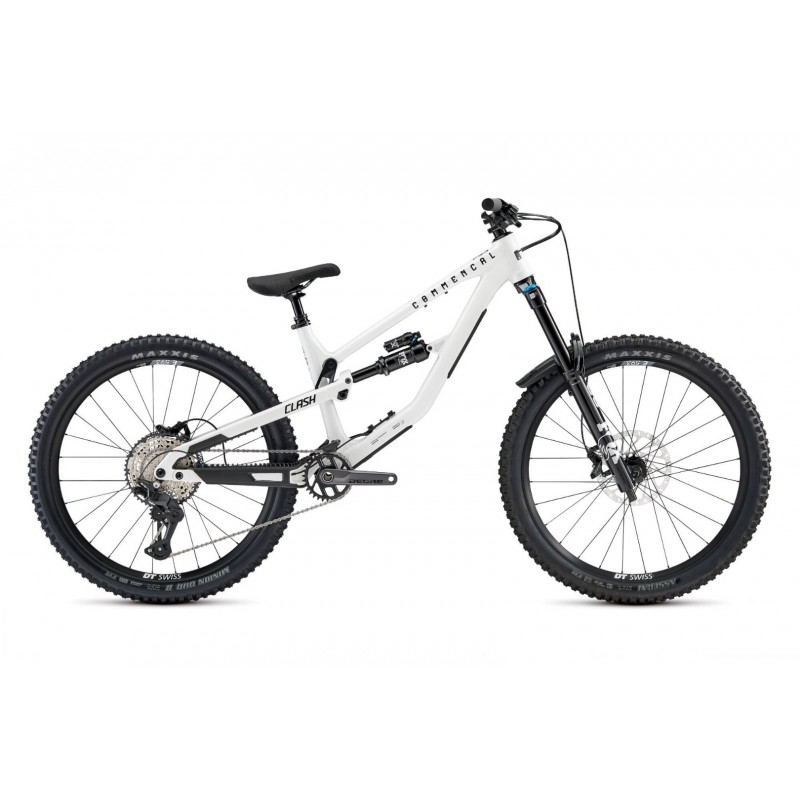

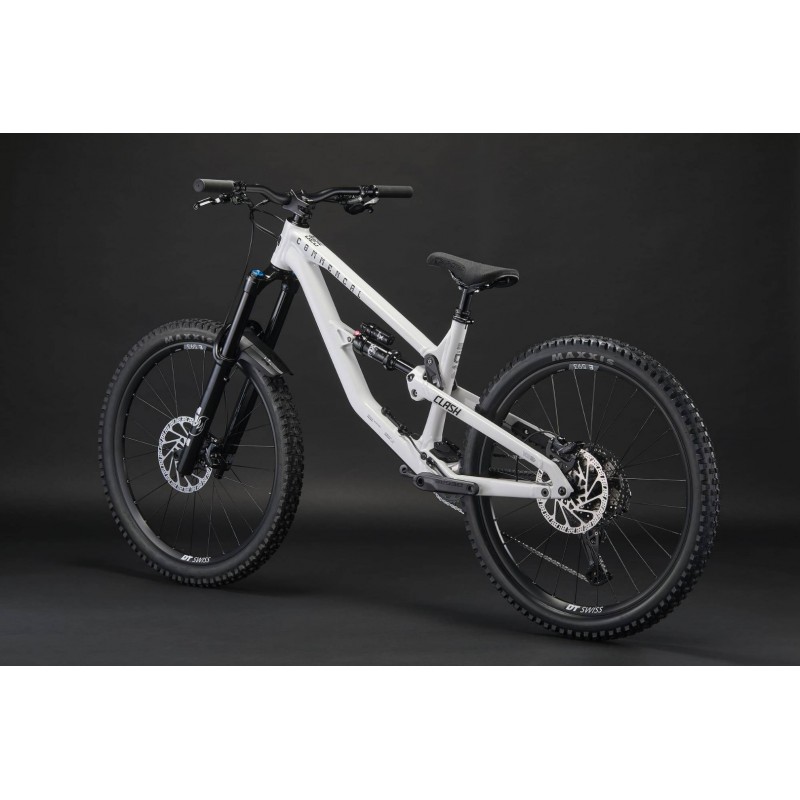

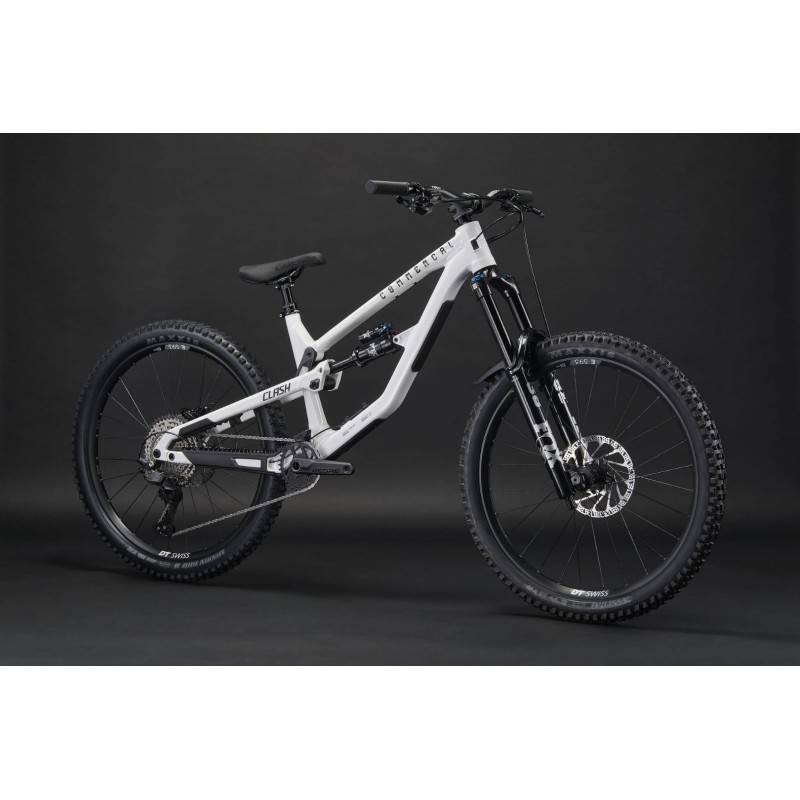

FRAME

CLASH V3, 170 mm travel27.5'', Alloy 6066, triple butted tubes, T4, T6.

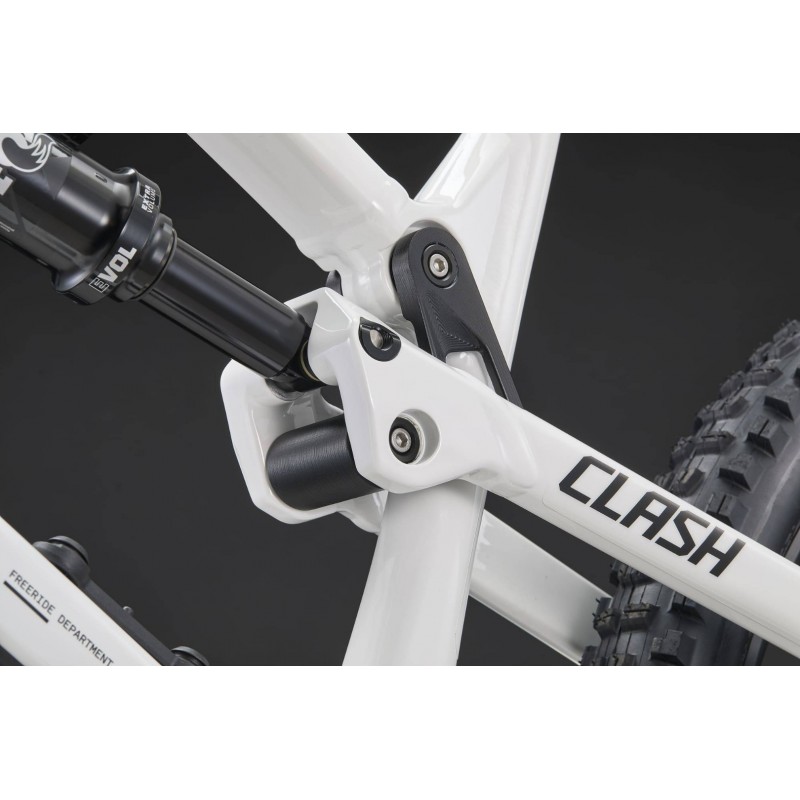

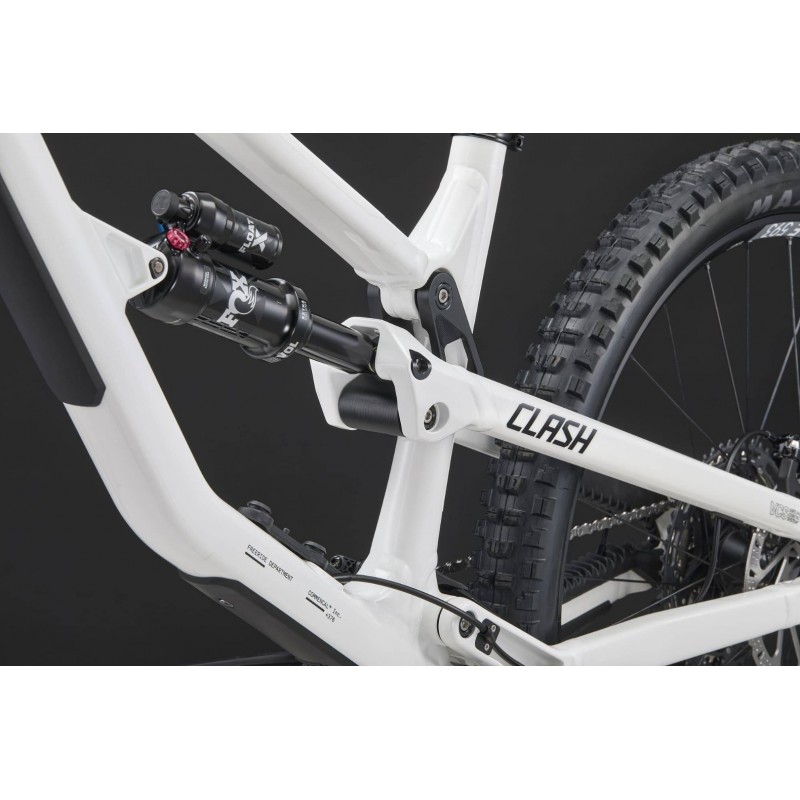

SHOCK

FOX Float X Performance

230 x 65 mm, 2-pos lever, rebound, LSC, 0,0ci spacers

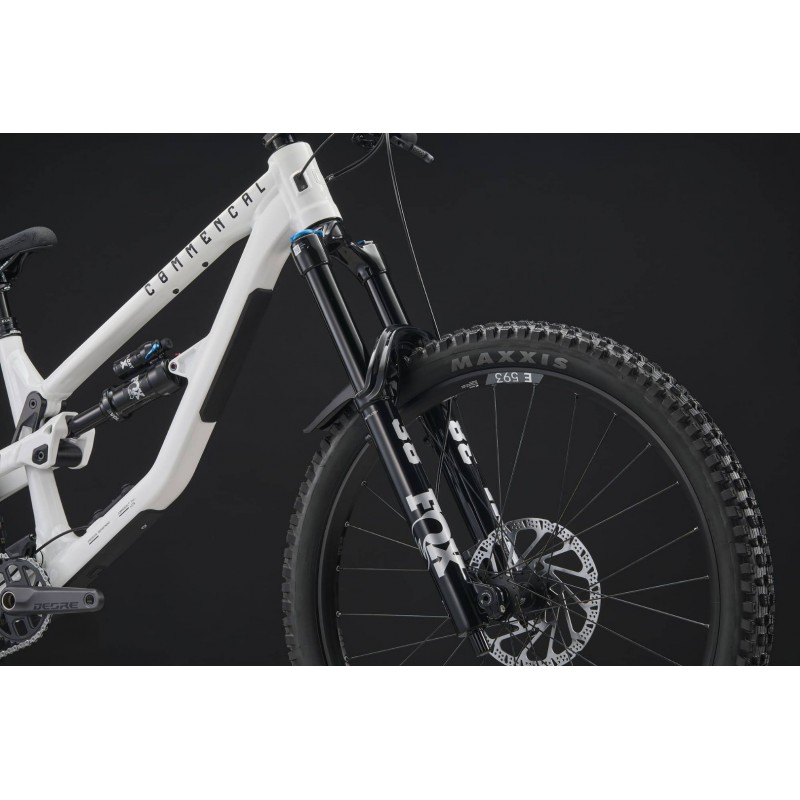

FORK

FOX 38 Performance, 180 mm travel

27.5'', Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 volume spacer

HEADSET

ACROS ZS56/ZS56

Alloy cups, sealed bearings

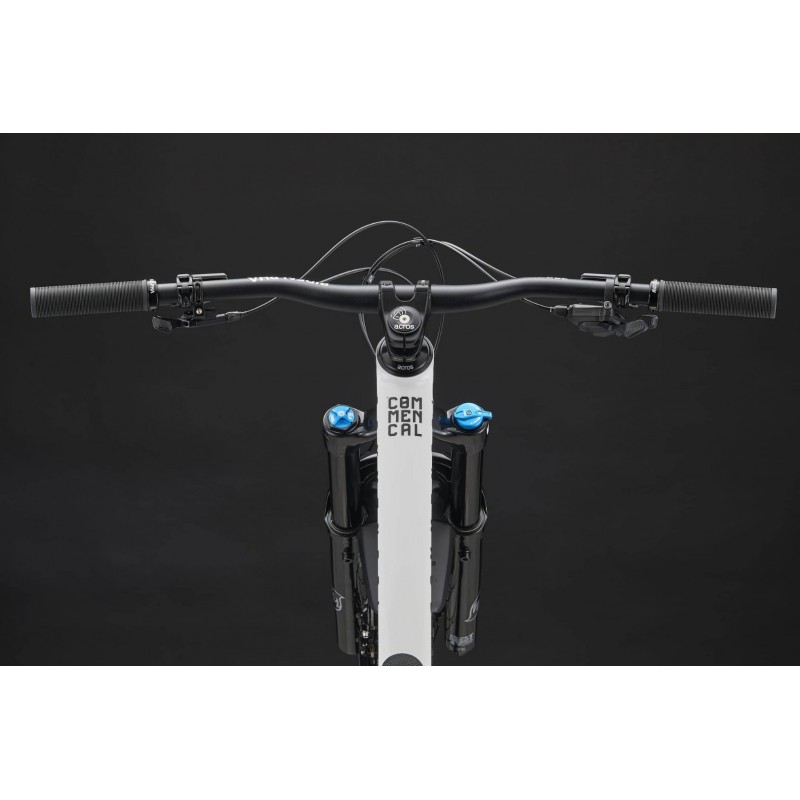

STEM

RIDE ALPHA 40

40 mm extension, 31.8 mm

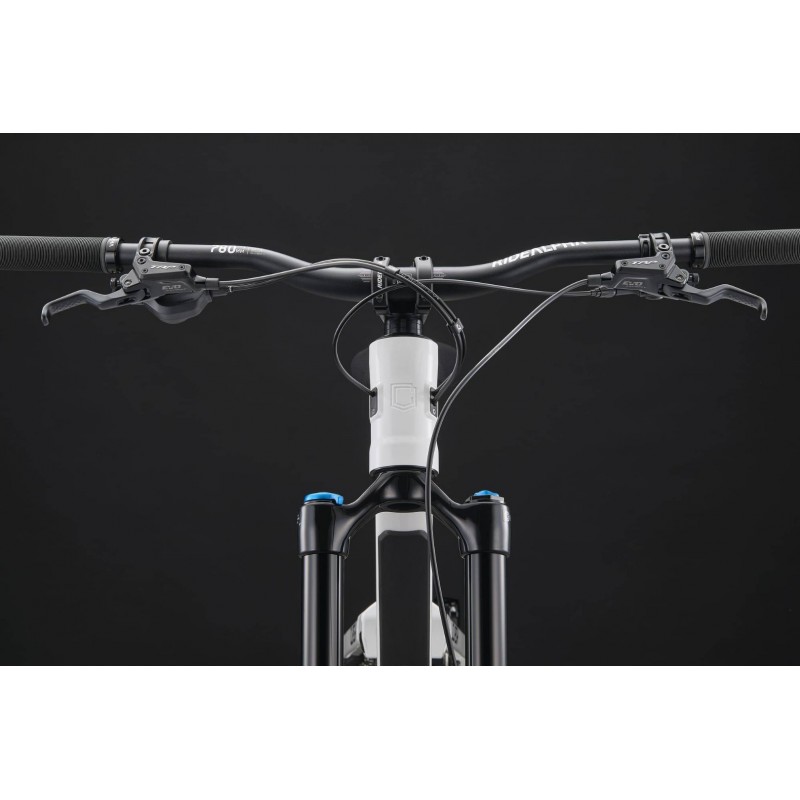

HANDLEBAR

RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M, RIDE ALPHA R35 800 on L

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M, 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on L

GRIPS

RIDE ALPHA Mushroom

Single clamp, black

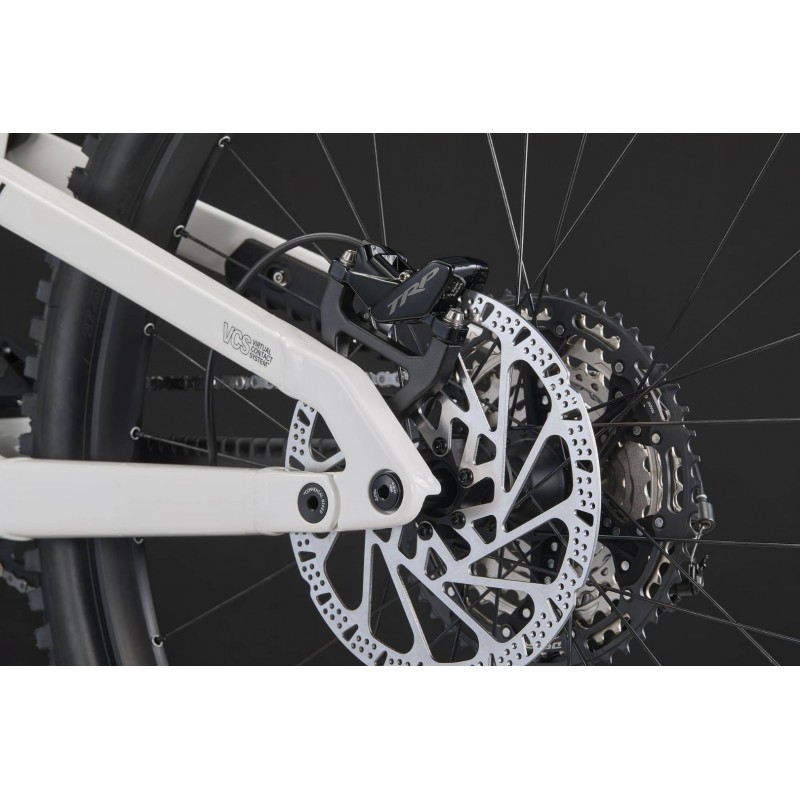

BRAKES

TRP EVO Expert, 4 pistons

Rotors : TRP R203S06E, 203 mm, 6-bolts

SHIFTERS

SHIMANO Deore

M6200, 12s

CHAIN GUIDE

E13 Vario

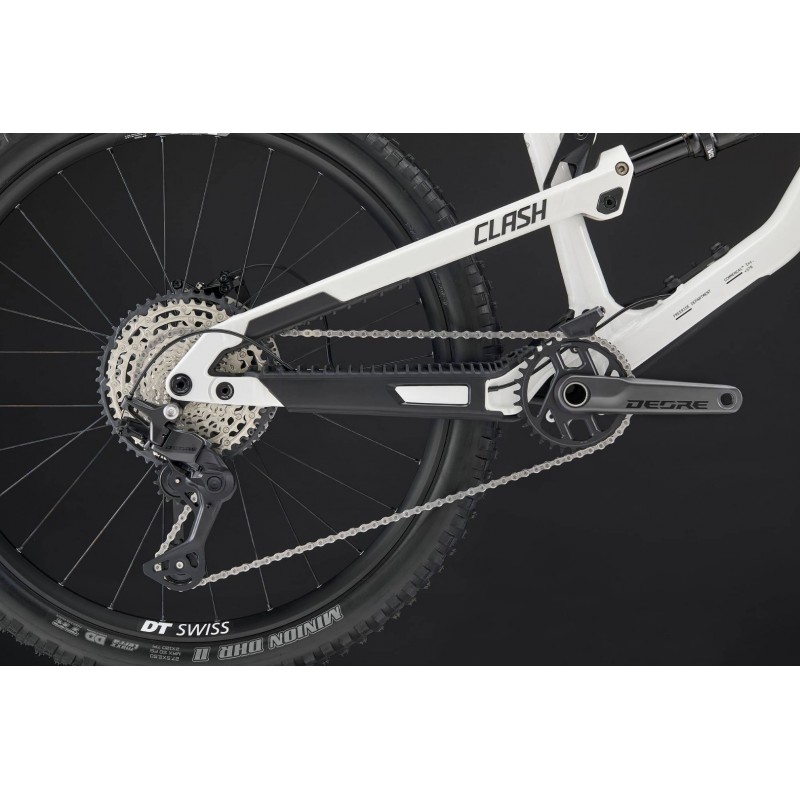

REAR DERAILLEUR

SHIMANO Deore

M7200, 12s

BOTTOM BRACKET

SHIMANO MT801

BSA 73 MTB wide

CRANKSET

SHIMANO Deore, M6200, 165 mm

Chainring : SHIMANO Deore, 32t

CHAIN

SHIMANO Deore

M6100, 12s

CASSETTE

SHIMANO Deore

M7200, 12s, 10-51t

RIMS

DT SWISS E 593

27.5'', 32h, 30 mm inner width

HUBS

DT SWISS 370 Classic LN

Rear : 32h, sealed bearings, 12 x 148 mm, Microspline - Front : 32h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

DT SWISS Champion

J-Bend, 2.0mm, stainless, with Nylok, black

TYRES

Rear : MAXXIS MINION DHRII - Front : MAXXIS ASSEGAI

Rear : 27.5x2.50, DoubleDown, MaxxTerra, Tubeless ready - Front : 27.5x2.50, EXO+, MaxxGrip, Tubeless ready

SEAT POST

KS 900i 2.0

150 mm on S, 180 mm on M, 210 mm on L

SADDLE

BURGTEC The Cloud boost

Black

WEIGHT

17,5 kg / 38,58 lbs

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No

COLOUR

Pure White

Shiny Finish
