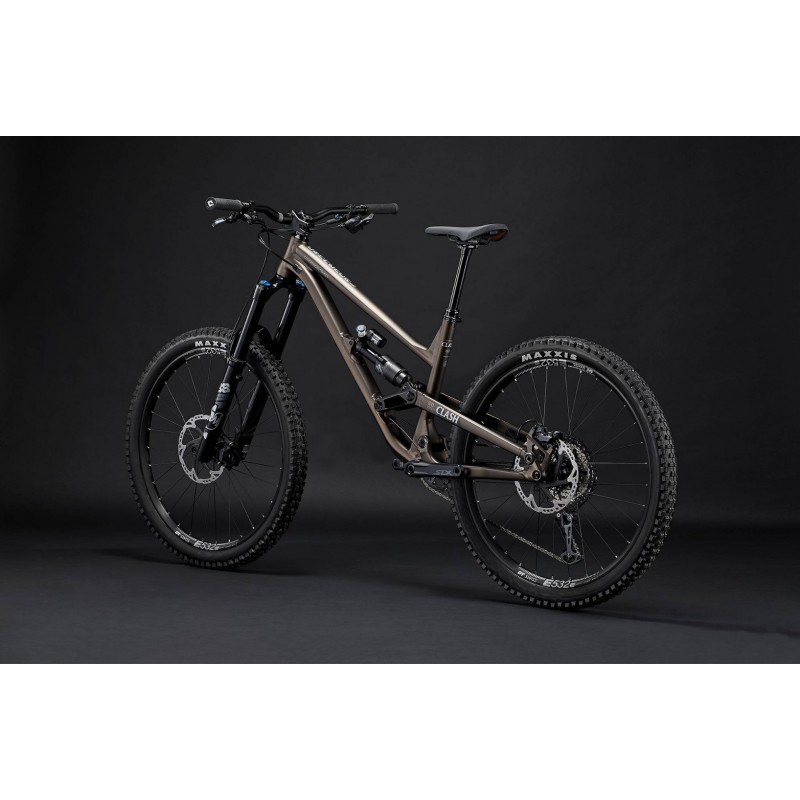

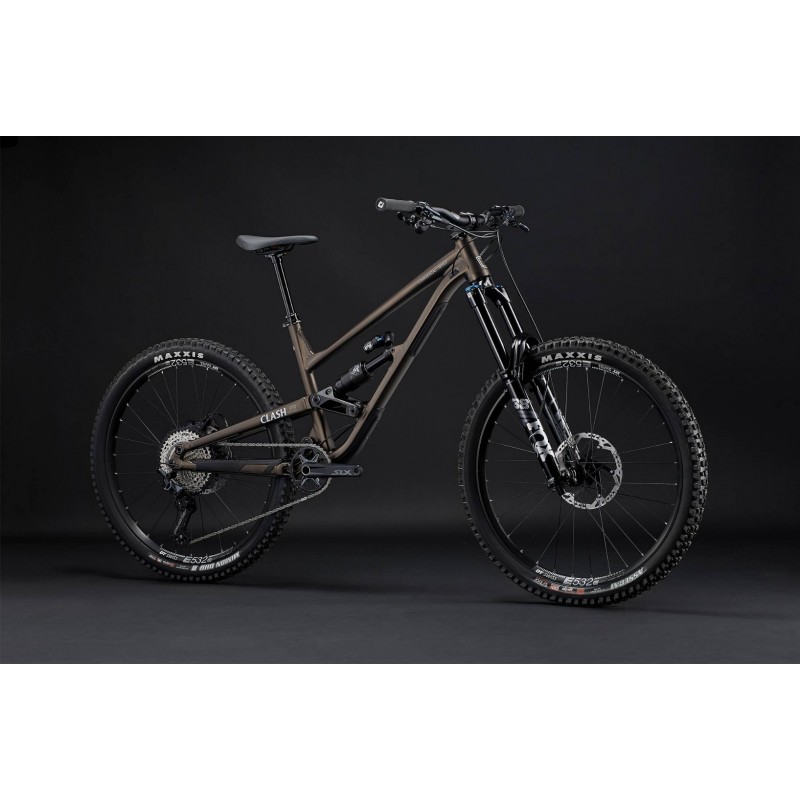

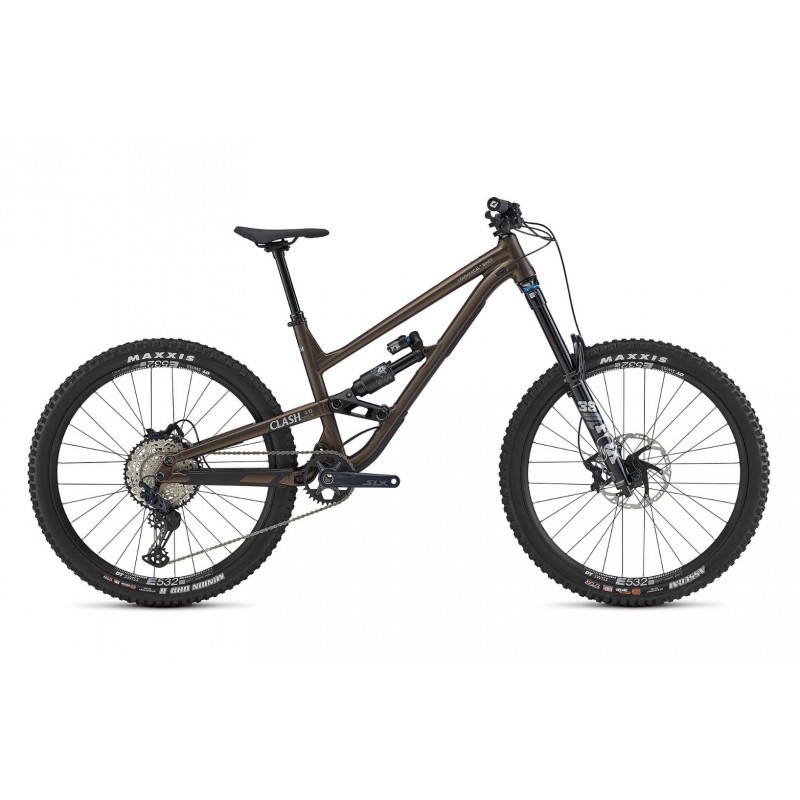

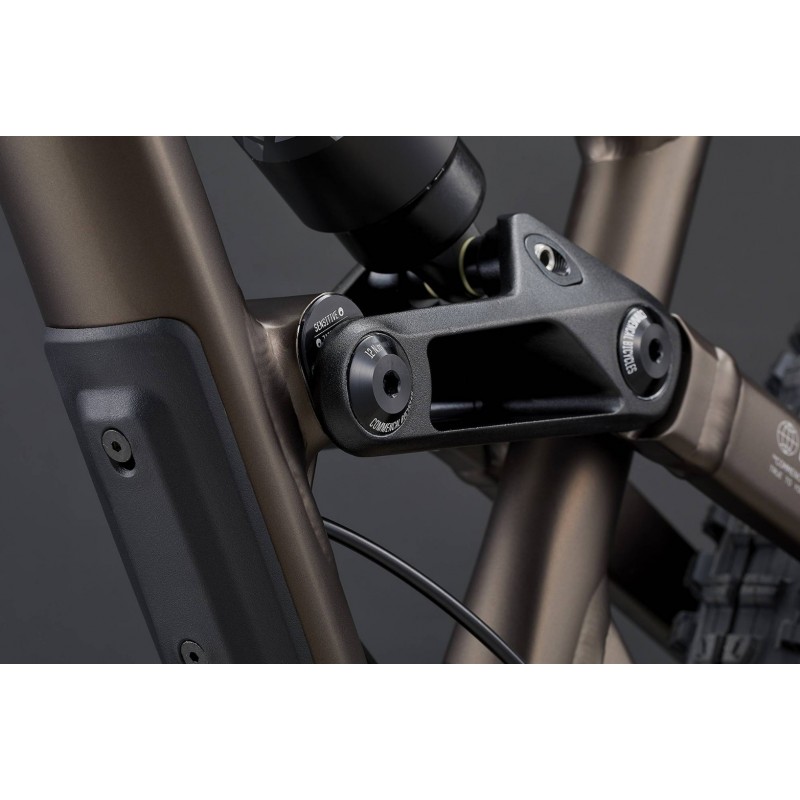

FRAME

CLASH, 170 mm travel
27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

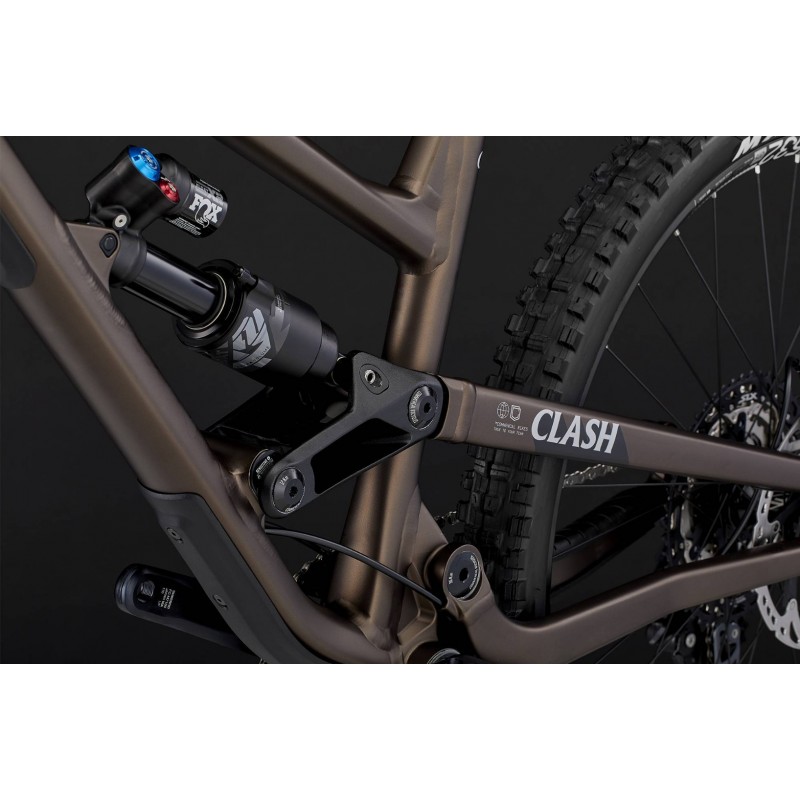

SHOCK

FOX Float X2 Performance
230 x 65 mm, LSC, LSR, 2 positions (open / firm) lever

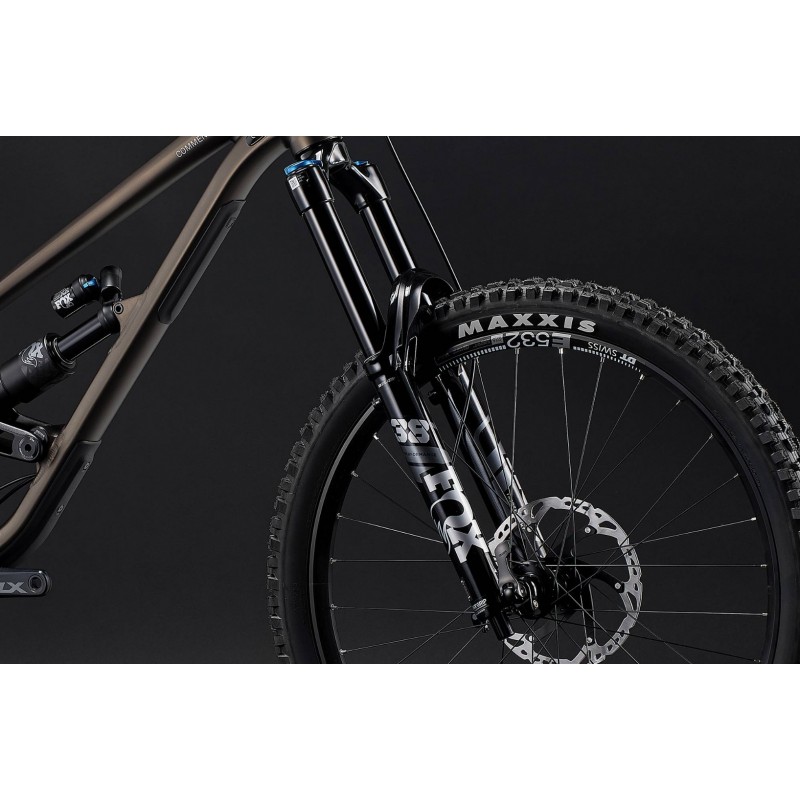

FORK

FOX 38 Performance, 180 mm travel
27.5", Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 37 mm offset, 1 spacer

HEADSET

ACROS ZS44/ZS56
Alloy cups, sealed bearings

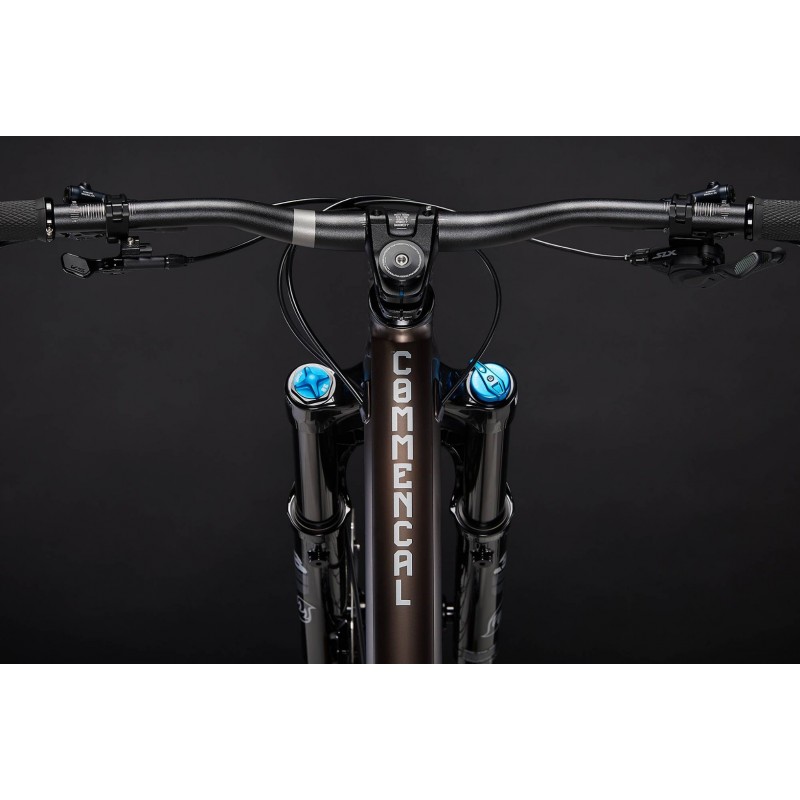

STEM

RIDE ALPHA Freeride 40
40 mm extension, 31.8 mm

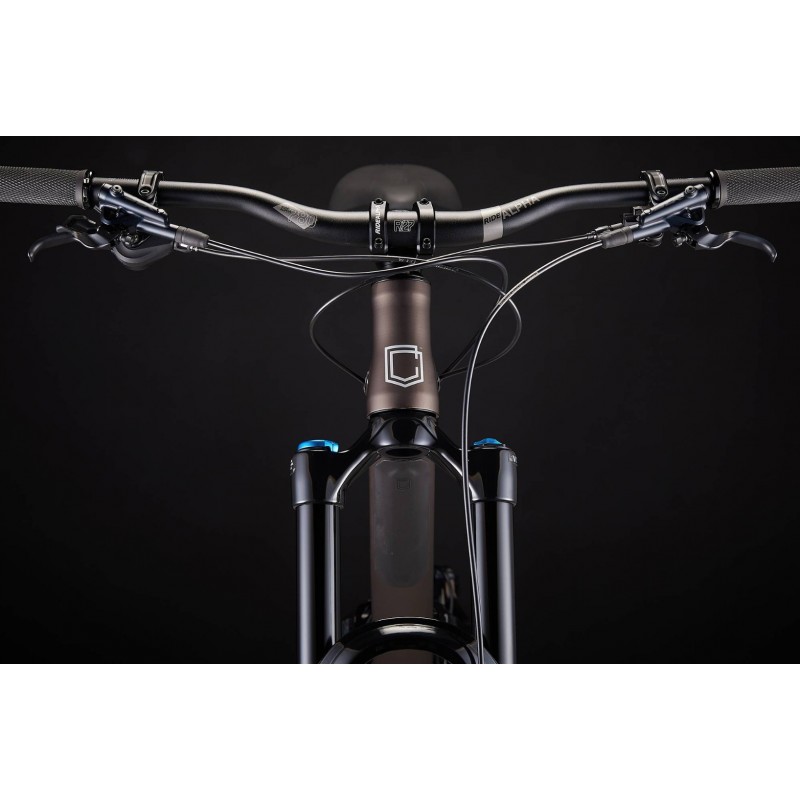

HANDLEBAR

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI Elite Motion
Soft pro compound, single clamp, black

BRAKES

SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6-bolt

SHIFTERS

SHIMANO SLX
12s

REAR DERAILLEUR

SHIMANO SLX
12s

BOTTOM BRACKET

SHIMANO BB71-41A
Pressfit

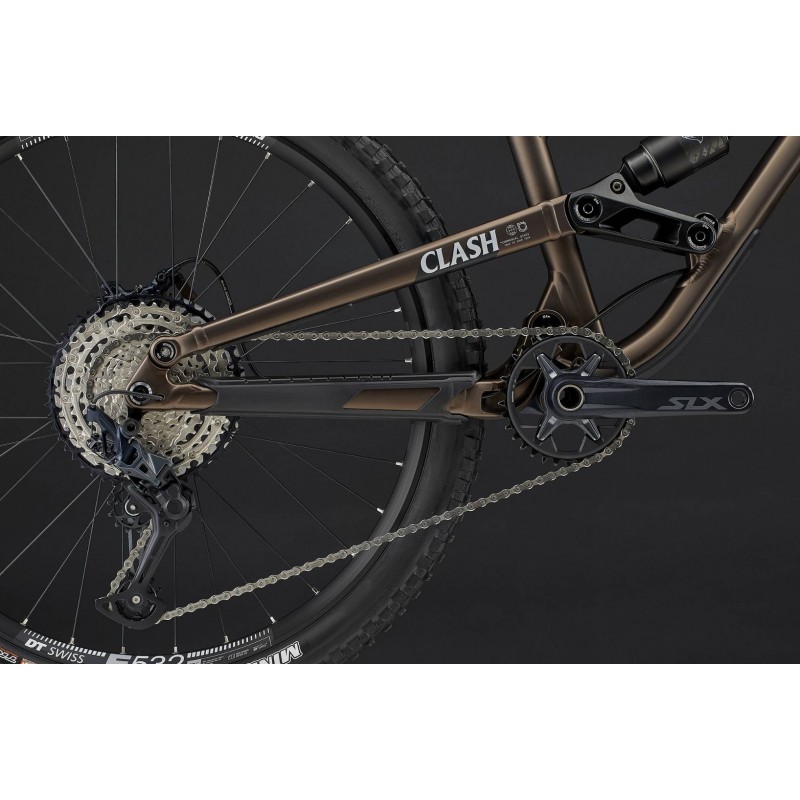

CRANKSET

SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 34t, Dynamic Chain Engagement + Technology

CHAIN

SHIMANO SLX
12s

CASSETTE

SHIMANO SLX
12s, 10-51t

RIMS

DT SWISS E532
27.5'', 32h, 30 mm inner width

HUBS

Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Microspline - Front: 32h, 15 x 110 mm, sealed bearings

SPOKES/NIPPLES

SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, EXO+, Tubeless Ready

SEAT POST

KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

SADDLE

FIZIK Terra Alpaca X5
145 mm width, S-alloy rails

WEIGHT

16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

No
